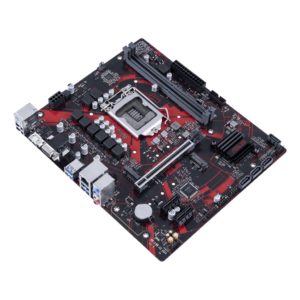

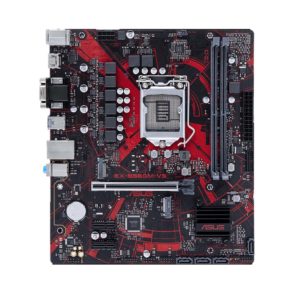

ASUS EX-B560M-V5 LGA 1200 mATX Motherboard

Supports Intel® 14 nm CPU

Supports Intel ® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz

Non-ECC, Un-buffered memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

*10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

1 x PCIe 4.0/3.0 x16 slot

– Intel® 11th Gen processors support PCIe 4.0 x16

– Intel® 10th Gen processors support PCIe 3.0 x16

Intel® B560 Chipset

2 x PCIe 3.0 x1 slots

M.2_1 slot (Key M), type 2242/2260/2280

– Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel® B560 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

2 x USB 2.0 ports (2 x Type-A)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers supports additional 4 USB 2.0 ports

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback”

Audio Features

– Premium Japanese audio capacitors

– Audio Shielding

– Dedicated audio PCB layers

*A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.

2 x USB 2.0 ports (2 x Type-A)

1 x D-Sub port

1 x HDMITM port

3 x Audio jacks

1 x Realtek 1Gb Ethernet port

1 x PS/2 Keyboard/Mouse combo port

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x Speaker header

1 x 10-1 pin System Panel header

– DIGI+ VRM

– LANGuard

– Overvoltage Protection

– SafeSlot Core+

– Stainless-Steel Back I/O

ASUS Q-Design

– Q-DIMM

– Q-Slot

Non-stop Challenger

– ASUS iCafe labs certified

Non-stop Durability

– Luminous anti-moisture coating

– USBGuard

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

2 x M.2 ANCHOR

Installation Media

1 x Support DVD

Documentation

1 x User manual

24.4cm x 21.1cm
