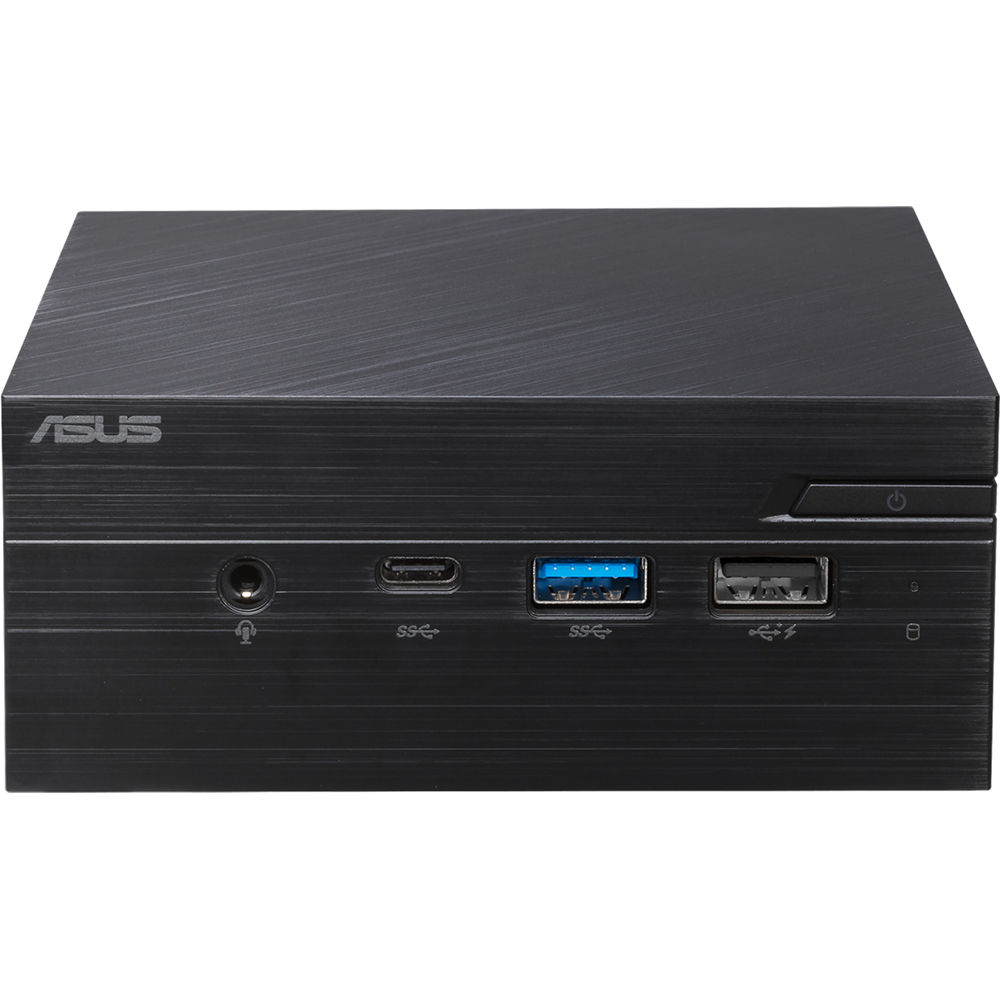

ASUS Intel Celeron PN40 Ultracompact Mini PC (PN40-BBC915MV)

ASUS
  • Windows 10 Pro: ASUS recommends Windows 10 Pro for business. Other editions also available.
  • Extremely quiet, fanless* design with the latest Intel® Celeron® processor
  • Ultracompact size with 115 x 115 x 49mm dimensions and 0.62-liter volume
  • Sliding chassis design for easy, two-step component upgrades
  • Dual storage design with a 2.5-inch HDD or SSD and a M.2 SSD* or eMMC for the balance of speed and capacity to fit your needs
  • Comprehensive I/O connectivity with HDMI 2.0, Mini DisplayPort, USB 3.1 Gen 1 Type-C and a VGA or COM port
  • 24/7 reliability: Extensively tested to ensure long-term reliabilityv

 37,500

SKU: 4711081468363 Categories: ,

Operating System

  • Windows 10 Home
  • Windows 10 Pro
  • Windows 10 IoT Enterprise
  • Windows 11 Home
  • Free Upgrade to Windows 11¹ (when available, see below); Barebone and Non-OS SKUs are excluded

CPU

  • Intel® Celeron® N4000 Processor 1.1GHz (4M Cache, up to 2.6GHz)
  • Intel® Celeron® J4005 Processor 2.0GHz (4M Cache, up to 2.7GHz)
  • Intel® Celeron® N4100 Processor 1.1GHz (4M Cache, up to 2.4GHz)
  • Intel® Pentium® Silver J5005 Processor 1.5GHz (4M Cache, up to 2.8GHz)
  • Intel® Celeron® N4020 Processor 1.1GHz (4M Cache, up to 2.8GHz)
  • Intel® Celeron® J4025 Processor 2.0GHz (4M Cache, up to 2.9GHz)
  • Intel® Celeron® J4125 Processor 2.0GHz (4M Cache, up to 2.7GHz)
  • Intel® Pentium® Silver N5000 Processor 1.1GHz (4M Cache, up to 2.7GHz)
  • Intel Pentium Silver N5030
  • Intel® Celeron® N4120 Processor 1.1GHz (4M Cache, up to 2.6GHz)
  • Intel Pentium Silver J5040
  • Intel® Celeron® J4105 Processor 1.5GHz (4M Cache, up to 2.5GHz)

Chipset

  • Integrated
  • TPM module on board

Graphics

  • Intel®UHD Graphics 600

Memory

  • 4GB DDR4 Memory
  • 2GB DDR4 Memory
  • 8GB DDR4 Memory
  • 2GB DDR4 Memory x 2

Storage

  • 32G eMMC
  • 64G eMMC
  • 2.5″ SATA 6Gb/s 500G 7200rpm HDD
  • 1TB SATA 7200RPM 2.5″ HDD
  • 2.5″ SATA 6Gb/s 1TB 5400rpm HDD
  • 256GB M.2 SATA SSD
  • 2.5″ SATA 6Gb/s 500G 5400rpm HDD
  • 512G M.2 SATA SSD
  • 128GB M.2 NVMe™ PCIe® 3.0 SSD
  • 128GB M.2 SATA SSD

Wireless Data Network

  • Wi-Fi 5, Bluetooth 5.0, 1*1
  • Wi-Fi 5, Bluetooth 5.0, 2*2
  • Wi-Fi 5, Bluetooth 4.0

LAN

  • Gigabit LAN, Realtek® RTL8111H-CG

Audio

  • Realtek® ALC3236-VB2 HD Audio CODEC (optional)
  • Realtek® ALC897 Audio CODEC

Side(Front) I/O Ports

  • 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0(w/ quick charge), 1 x Audio Jack(optional), 1 x K-Lock(side)

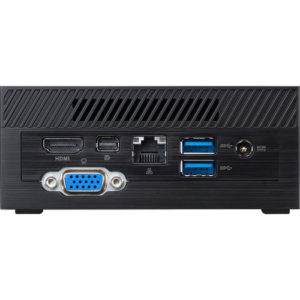

Back I/O Ports

  • 1 x HDMI; 1 x MiniDP; 1 x Configurable I/O port; 2 x USB 3.1 Gen1 Type-A, 1 x RJ45 LAN, 1 x DC-in

Configurable I/O

  • 1 x COM Port
  • 1 x VGA Port

Speaker

  • No

Power Supply

  • 19Vdc, 3.42A, 65W Power Adapter

Dimensions (W x D x H)

  • 115 x 115 x 49 mm

Weight

  • 700g (include 2.5″ HDD)

Color

  • Black
  • White

Accessories

  • WIRELESS KBM
  • USB Keyboard & Mouse

Certificates

  • BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
