ASUS Intel Ci5-10210 PN62 Mini PC (PN62-BB5014MD)

ASUS
  • Windows 10 Pro – ASUS recommends Windows 10 Pro for business. or other editions available
  • Powerful performance with 10th Generation Intel® Core™ processors
  • High-speed Wi-Fi 6 networking with improved power efficiency
  • Versatile USB 3.1 Gen 1 Type-C port for data transfer, power delivery and DisplayPort functionality
  • Microsoft Cortana support with dual-array front microphones
  • Infrared (IR) receiver for remote control of applications
  • Dual-storage design with up to a 2.5-inch HDD up to 1 TB and an M.2 SSD up to 256 GB
  • Comprehensive I/O connectivity including a configurable Thunderbolt 3 port* option that provides fast and versatile connectivity
  • ASUS Corporate Stable Model program ensuring 36-month stable-supply guarantee
  • 24/7 reliability — Extensively tested to ensure long-term dependability

 85,000

SKU: 4718017680288 Categories: ,

Product Specification

Operating System

  • Windows 10 Home
  • Windows 10 Pro
  • Windows 11 Home
  • Free Upgrade to Windows 11¹ (when available, see below); Barebone and Non-OS SKUs are excluded

CPU

  • Intel® Core™ i7-10510U Processor 1.8GHz (8M Cache, up to 4.9GHz); (Barebone SKU)
  • Intel® Core™ i5-10210U Processor 1.6GHz (6M Cache, up to 4.2GHz); (Barebone SKU)
  • Intel® Core™ i3-10110U Processor 2.1GHz (4M Cache, up to 4.1GHz); (Barebone SKU)
  • Intel® Core™ i7-10710U Processor 1.1GHz (12M Cache, up to 4.7GHz); (Barebone SKU)
  • Intel® Core™ i5-10210U Processor 1.6GHz (6M Cache, up to 4.2GHz)
  • Intel® Core™ i3-10110U Processor 2.1GHz (4M Cache, up to 4.1GHz)
  • Intel® Core™ i7-10510U Processor 1.8GHz (8M Cache, up to 4.9GHz)\
  • Intel® Core™ i7-10710U Processor 1.1GHz (12M Cache, up to 4.7GHz)

Chipset

  • Integrated

Graphics

  • Integrated – Intel HD Graphics

Memory

  • 8GB DDR4 Memory
  • 4GB DDR4 Memory
  • 4GB DDR4 Memory x 2
  • 8GB DDR4 Memory x 2
  • 16GB DDR4 Memory

Storage

  • 256GB M.2 SATA SSD
  • 1TB SATA 7200RPM 2.5″ HDD
  • 256GB M.2 NVMe™ PCIe® 3.0 SSD
  • 3.5″ SATA 6Gb/s 500G 7200rpm HDD
  • 512G M.2 SATA SSD
  • 512GB M.2 NVMe™ PCIe® 3.0 SSD
  • 1TB M.2 NVMe™ PCIe® 3.0 SSD
  • 128GB M.2 NVMe™ PCIe® 3.0 SSD
  • 128GB M.2 SATA SSD

Wireless Data Network

  • Wi-Fi 6, Bluetooth 5.0, 2*2 (Barebone SKU)
  • Wi-Fi 5, Bluetooth 4.0, 2*2 (Barebone SKU)
  • Wi-Fi 6, Bluetooth 5.0, 2*2
  • w/o Wi-Fi
  • Wi-Fi 5, Bluetooth 4.2, 2*2

LAN

  • Gigabit LAN, Intel® WGI219V

Audio

  • Realtek® ALC3236-VB2 HD Audio CODEC (optional)
  • Realtek® ALC3251 HD Audio CODEC (optional)

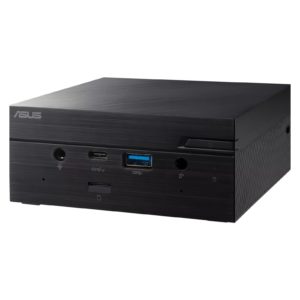

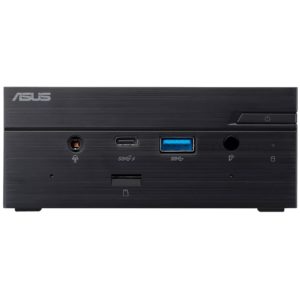

Side(Front) I/O Ports

  • SKU 1:1 x USB 3.2 Gen2 Type-C(w/ quick charge), 1 x USB 3.2 Gen1, 1 x Audio Jack, 2 x Microphone Array, 1 x IR receiver, 1 x 3-in-1 Card Reader, 1 x K-Lock(Side)
  • SKU 2:1 x USB 3.2 Gen2 Type-C(w/ quick charge), 1 x USB 3.2 Gen1, 1 x IR receiver, 1 x 3-in-1 Card Reader, 1 x K-Lock(Side)\
  • SKU 3:1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen1, 1 x Audio Jack, 1 x K-Lock(Side)

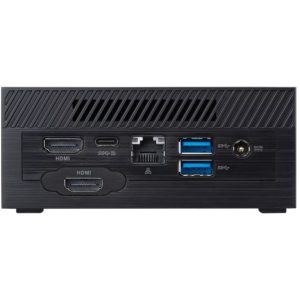

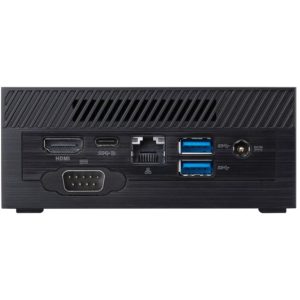

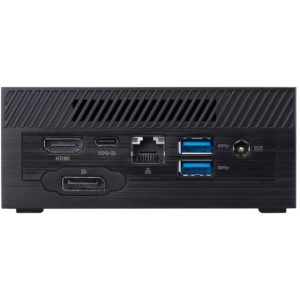

Back I/O Ports

  • SKU 1:1 x USB 3.2 Gen1 Type-C(w/DP output & PowerDelivery input), 2 x USB 3.2 Gen1, 1 x HDMI 2.0 Port, 1 x Configurable Port(option:Thunderbolt 3/DisplayPort 1.2/COM/VGA/Intel LAN), 1 x Intel (RJ45) LAN, 1 x DC-in
  • SKU 2:1 x USB 3.2 Gen1 Type-C(w/ DP output & PowerDelivery input), 2 x USB 3.2 Gen1, 1 x HDMI 2.0 Port, 1 x Configurable Port(option: Display Port 1.2/COM/ VGA/ Intel LAN), 1 x Intel (RJ45) LAN, 1 x DC-in
  • SKU 3:1 x USB 3.2 Gen1 Type-C(w/ DP output & PowerDelivery input), 2 x USB 3.2 Gen1, 1 x HDMI 2.0 Port, 1 x Configurable Port(option: Display Port 1.2/COM/ VGA/ Intel LAN), 1 x Intel (RJ45) LAN, 1 x DC-in

Configurable I/O

  • 1 x Thunderbolt3 w/type-C Port
  • 1 x Display1.2 Port (Barebone SKU)
  • 1 x COM Port (Barebone SKU)
  • 1 x VGA Port (Barebone SKU)
  • 1 x Lan(RJ-45) Port (Barebone SKU)
  • 1 x COM Port
  • 1 x Display1.2 Port
  • Thunderbolt3 w/type-C Port
  • 1 x VGA Port
  • LAN(RJ-45) Port

Speaker

  • No

Power Supply

  • 19Vdc, 3.42A, 65W Power Adapter
  • 19Vdc, 4.74A, 90W Power Adapter

Dimensions (W x D x H)

  • 115 x 115 x 49 mm

Weight

  • 700g (include 2.5″ HDD)

Color

  • Black

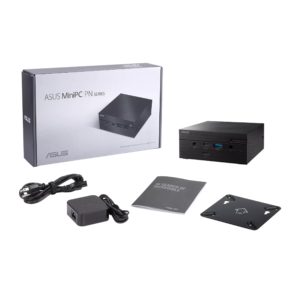

Accessories

  • USB Keyboard & Mouse
  • WIRELESS KBM

Certificates

  • BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
