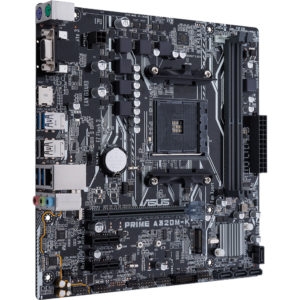

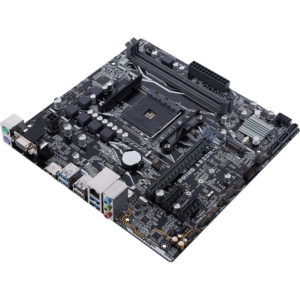

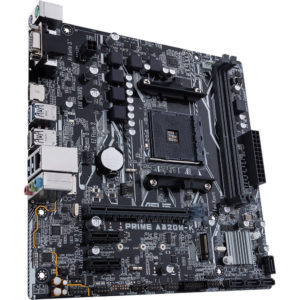

ASUS PRIME A320M-K AMD AM4 DDR4 Micro-ATX Motherboard

ASUS
  • Powered by AMD Ryzen AM4 7th Generation Athlon and HD 2000 series processors to maximize connectivity and speed with NVMe M 2 support for 32GB of DDR4 USB 3 0 and Gigabit LAN
  • 5x Protection III Hardware-level safeguards provide component longevity and reliability
  • Patent-pending SafeSlot Core fortified PCIe slot prevents damage from heavyweight GPUs
  • Fan Xpert delivers advanced fan controls for optimized cooling
  • Industry-leading 8-channel HD audio driven by Japanese capacitors features an onboard LED-illuminated design Operating System Support Windows 10
  • System Ram Type: Ddr4 Sdram
Availability:

Out of stock

 13,500

Out of stock

Product Specification

Chipset AMD A320
CPU Socket AM4

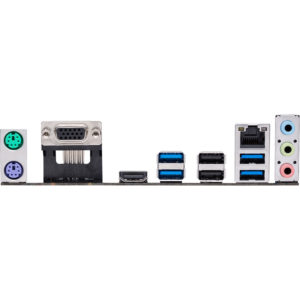

USB 4 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Display 1 x HDMI 1.4b
1 x VGA
Audio 3 x 3.5 mm
Ethernet / Controller 1 x Realtek 8111H Gigabit
PS/2 2 x PS/2
Memory Slots 2 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2933, 3200 MHz
Maximum Capacity 32 GB
Channel Architecture Dual Channel
ECC Support Non-ECC, ECC Unbuffered
SATA 4 x SATA III
M.2 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
U.2 None
RAID Support RAID 0, 1, 10
Expansion Slots 1 x PCIe 3.0 x16
2 x PCIe 2.0 x1
USB 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support None
Air Cooling 1 x 4-Pin CPU
1 x 4-Pin System
Power Connectors 1 x 24-Pin Mainboard
1 x 4-Pin CPU
LED Header None
Audio 1 x S/PDIF
1 x Speaker
Diagnostics Clear CMOS
I/O Connection Headers AAFP
Audio Codec Realtek ALC887 (8-Channel)
Wi-Fi None
Form Factor Micro-ATX
Dimensions 8.9 x 8.7″ / 22.6 x 22.1 cm
