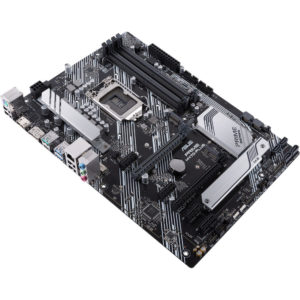

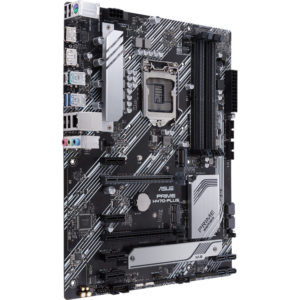

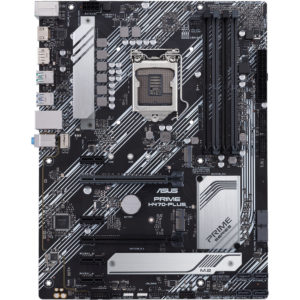

ASUS PRIME H470-PLUS/CSM (LGA 1200) ATX MOTHERBOARD

ASUS
  • Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
  • Enhanced power solution: 6+1+1 power stages, alloy chokes and durable capacitors for stable power delivery
  • Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
  • Ultrafast connectivity: Dual M.2, 1Gb Ethernet, rear USB 3.2 Gen 2 Type-C® and Thunderbolt™ 3 support
Ad
Availability:

Out of stock

₨ 23,220

Out of stock

Add to Wishlist
Compare

SKU: 4718017699457 Categories: ,
  • CPU
    Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list
    **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset
    Intel® H470
  • Memory
    4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem
    * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor
    1 x DisplayPort 1.4 **
    1 x HDMI 1.4b
    *Graphics specifications may vary between CPU types.
    **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
  • Multi-GPU Support
    Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots
    Intel® 10th Gen Processors
    1 x PCIe 3.0 x16 (x16 mode)
    Intel® H470 Chipset
    1 x PCIe 3.0 x16 (x4 mode)
    4 x PCIe 3.0 x1
  • Storage
    Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
    Intel® H470 Chipset :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*1
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology supports
    Intel® Optane™ Memory Ready
  • LAN
    Realtek® RTL8111H
  • Wireless Data Network
    M.2 slot only (Key E) (Support CNVI & PCIe interface)*
    *Wi-Fi module is sold separately.
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC *
    – Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature :
    – Audio Shielding
    – Dedicated audio PCB layers
    – Premium Japanese audio capacitors
    * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

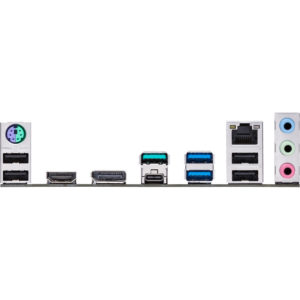

  • USB Ports
    Rear USB Port ( Total 8 )
    2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x Type-C)
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    4 x USB 2.0 port(s)(4 x Type-A)
    Front USB Port ( Total 7 )
    4 x USB 3.2 Gen 1 port(s)
    3 x USB 2.0 port(s)
