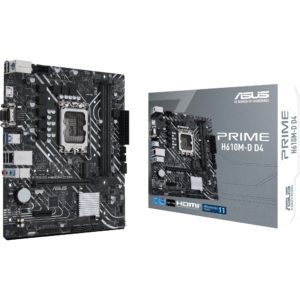

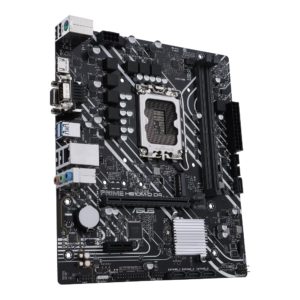

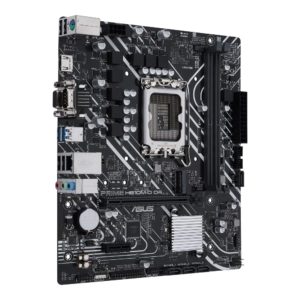

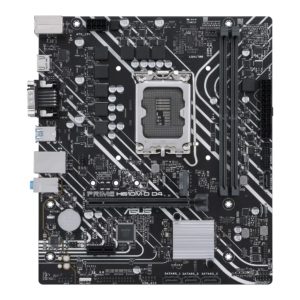

ASUS Prime H610M-D D4 LGA 1700 Micro ATX Motherboard

ASUS
  • Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
  • Comprehensive cooling: PCH heatsink and Fan Xpert
  • Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
  • 5X Protection III: Multiple hardware safeguards for all-round protection

 27,000

SKU: 4711081540496 Categories: ,

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 12th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

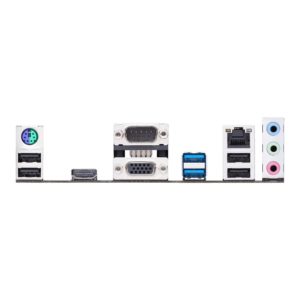

Rear Panel I/O Ports

USB Ports 2 x USB 3.0
2 x USB 2.0
HDMI Port 1 x HDMI 2.1
VGA Port 1 x D-Sub
Keyboard/Mouse Combo Port 1 x PS/2
Serial Ports 1 x COM
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Chassis fan header
S/PDIF Connectors 1 x S/PDIF Out header
Parallel Connectors 1 x LPT header
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen3 or SATA)
1 x 4-pin RGB LED header

Memory

Memory Bus Speed Up to 3200 MHz
Memory Type DDR4
Maximum RAM 64 GB
Memory Slot 2 x DIMM

Motherboard

Chipset Manufacturer Intel
Northbridge H610
RAID Supported No
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek

Network

Integrated Network Realtek
Network Speeds Supported Up to 1 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11 / 10 64-bit

System

BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor MicroATX Motherboard

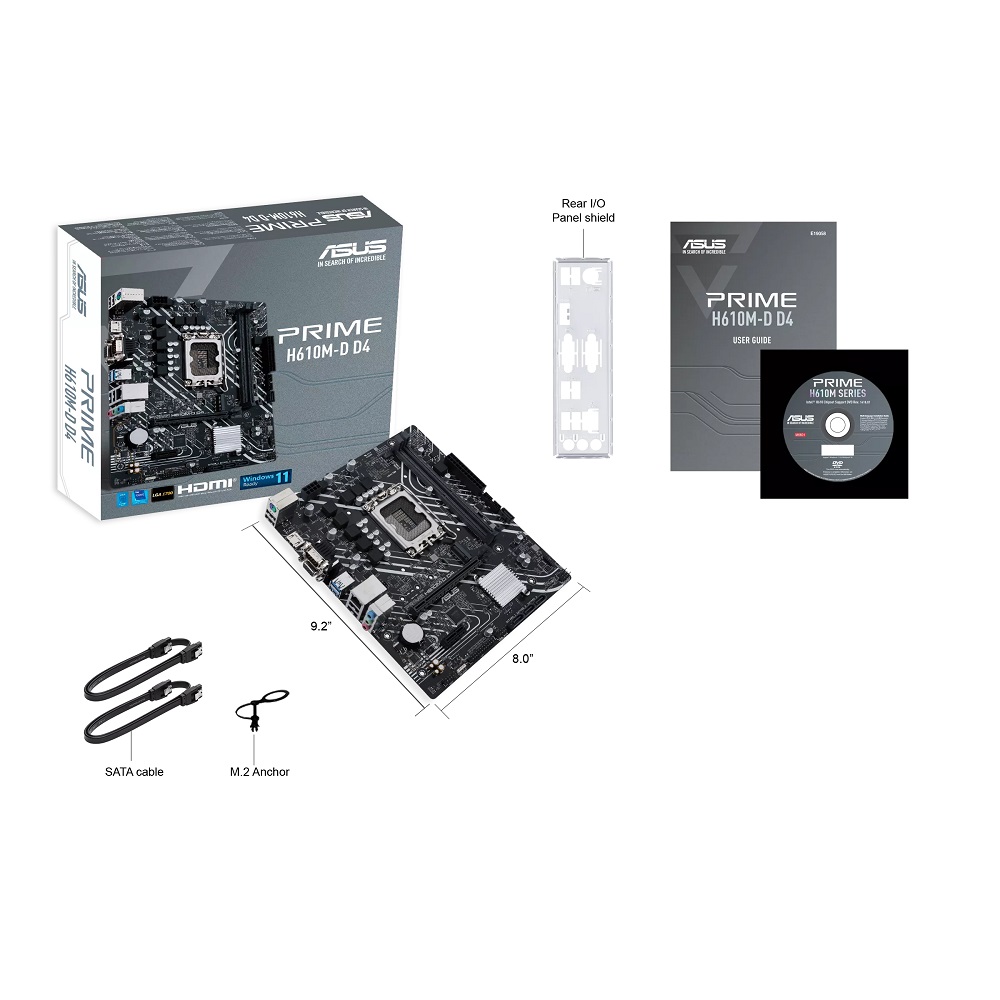

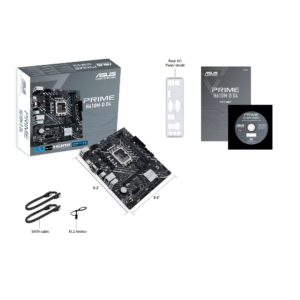

In The Box ASUS Prime H610M-D D4 Motherboard
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 ANCHOR
1 x Support DVD
1 x User Guide
Width 234 mm
Length 203 mm

Key Features

Firewire No
Wireless Network No
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection Yes
DVI Connection No
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor mATX
Motherboard Power Connectors 8-Pin
Motherboard Chipset Intel H610
Thunderbolt No
Motherboard Model ASUS Prime H610M-D D4
USB 3.1 Support No
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
Memory Speed 3200 MHz
RGB Header Type 4-Pin RGB
Addressable RGB No
