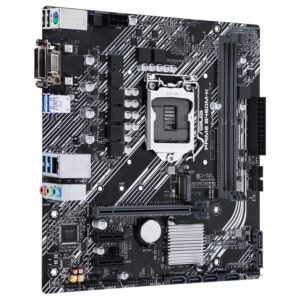

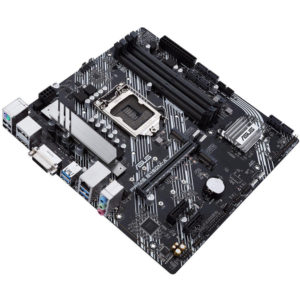

ASUS PRIME Intel® B460M-A (LGA 1200) mATX motherboard

ASUS
  • Intel ® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
  • Fan Xpert 2+: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
  • 5X Protection III: Multiple hardware safeguards for all-round protection.
  • Ultrafast connectivity: Supreme flexibility with native M.2 support for Lightning-fast storage speeds
  • Aura Sync RGB: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips
Availability:

Out of stock

 16,600

Out of stock

SKU: 4718017716109 Categories: ,
  • CPU
    Intel® Socket 1200 for 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors *
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list
    **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset
    Intel® B460
  • Memory
    Intel® B460 Chipset
    4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem
    * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor- Intel® UHD Graphics support
    1 x DisplayPort 1.4
    1 x HDMI 1.4b
    1 x DVI-D
    *Graphics specifications may vary between CPU types.
    **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
  • Expansion Slots
    Intel® 10th Gen Processors
    1 x PCIe 3.0/2.0 x16 (x16 mode)
    Intel® B460 Chipset
    2 x PCIe 3.0/2.0 x1
  • Storage
    Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
    Intel® B460 Chipset :
    1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
    1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology supports
    Intel® Optane™ Memory Ready
  • LAN
    Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
  • Audio
    Realtek® ALC887 7.1-Channel High Definition Audio CODEC *
    – Supports : Jack-detection, up to 24-Bit/192kHz playback
    Audio Feature :
    – Audio Shielding
    – Dedicated audio PCB layers
    – Premium Japanese audio capacitors
    * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

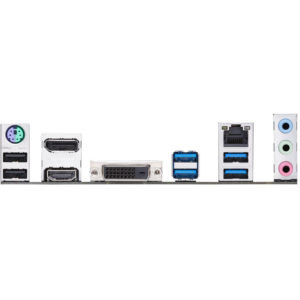

  • USB Ports
    Rear USB Port ( Total 6 )
    4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
    2 x USB 2.0 port(s)(2 x Type-A)
    Front USB Port ( Total 6 )
    2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
    4 x USB 2.0 port(s)
