ASUS Prime Z490-P LGA 1200 ATX Motherboard

ASUS
  • Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors

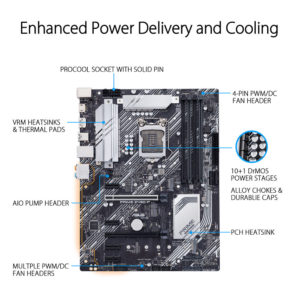

  • Enhanced power solution: 10+1 DrMOS power stages, 6-layer PCB, ProCool connector, alloy chokes and durable capacitors for stable power delivery
  • Comprehensive cooling: VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4

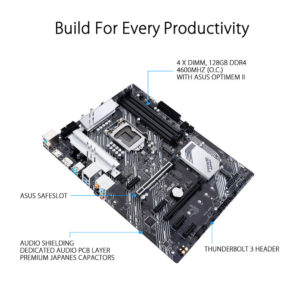

  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Ultrafast connectivity: Dual M.2, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A ® and Thunderbolt™ 3 support
Availability:

Out of stock

 30,500

Out of stock

SKU: 4718017666046 Categories: ,
  • CPU
    Intel® Socket 1200 for 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors *
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list
    **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset
    Intel® Z490
  • Memory
    4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor
    1 x DisplayPort 1.4 **
    1 x HDMI 1.4b
    *Graphics specifications may vary between CPU types.
    **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
  • Multi-GPU Support
    Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots
    Intel® 10th Gen Processors
    1 x PCIe 3.0 x16 (x16 mode) *1
    Intel® Z490 Chipset
    1 x PCIe 3.0 x16 (x4 mode)
    4 x PCIe 3.0 x1
  • Storage
    Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
    Intel® Z490 Chipset :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    4 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology supports
    Intel® Optane™ Memory Ready
  • LAN
    Realtek® RTL8111H
  • Wireless Data Network
    M.2 slot only (Key E) (Support CNVI & PCIe interface)*
    *Wi-Fi module is sold separately.
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC
    – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature :
    – Optical S/PDIF out port(s) at back panel
    – LED-illuminated design
    – Audio Shielding
    – Dedicated audio PCB layers
    – Premium Japanese audio capacitors

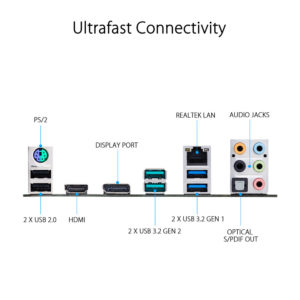

  • USB Ports
    Rear USB Port ( Total 6 )
    2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    2 x USB 2.0 port(s)(2 x Type-A)
    Front USB Port ( Total 8 )
    4 x USB 3.2 Gen 1 port(s)
    4 x USB 2.0 port(s)
