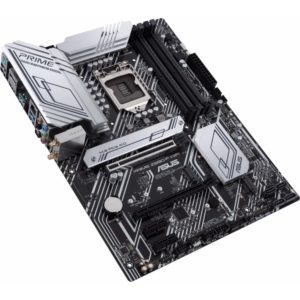

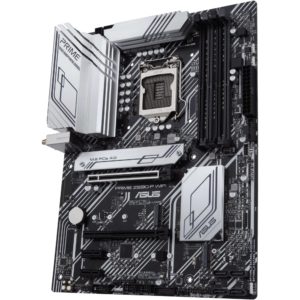

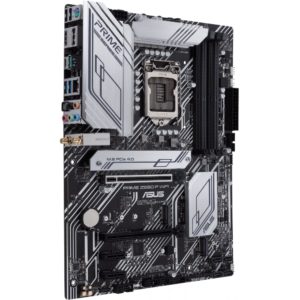

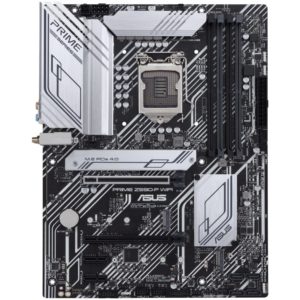

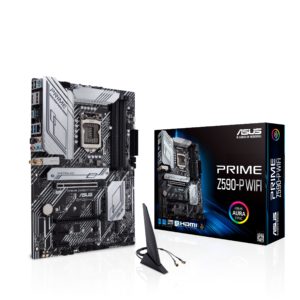

ASUS PRIME Z590-P WIFI (LGA 1200) ATX Motherboard

  • Intel® LGA 1200 socket: Ready for 11th and 10th gen Intel® Core™ processors
  • Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
  • Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Next-gen connectivity: Intel® WiFi 6, PCIe® 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support

Out of stock


Out of stock

SKU: 4711081171973 Categories: ,

Product Specification

CPU Intel Socket 1200 for 10th and 11th Gen Intel Processors
Chipset Intel Z590
Memory 4 x DIMM, 128GB max, DDR4 up to 5133+(OC) MHz Non-ECC, Un-buffered Memory *
Graphics Intel UHD Graphics support †
Multi-VGA output support DisplayPort 1.4 / HDMI (2.0 for 11th Gen, 1.4 for 10th Gen)
DisplayPort (1.4) Resolution 4096 x 2304 @ 60 Hz
HDMI 2.0 Resolution 4096 x 2160 @ 60 Hz (11th Gen CPU)
HDMI 1.4 Resolution 4096 x 2160 @ 30 Hz (10th Gen CPU)
Expansion Slots 1x PCIe 4.0 x16 (x16 and x4), 1 x PCIe 3.0 x16 (supports x4 mode), 2x PCIe 3.0 x1 ‡
First M.2 Socket M.2_1 slot (Key M), type 2242/2260/2280/22110 **
Second M.2 Socket M.2_2 slot (Key M), type 2242/2260/2280 ††
Third M.2 Socket M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
SATA 6Gb/s ports 4
Support Raid 0, 1, 5 and 10
LAN Realtek 2.5Gb Ethernet
Wi-Fi Intel Wi-Fi 6
Audio CODEC Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC

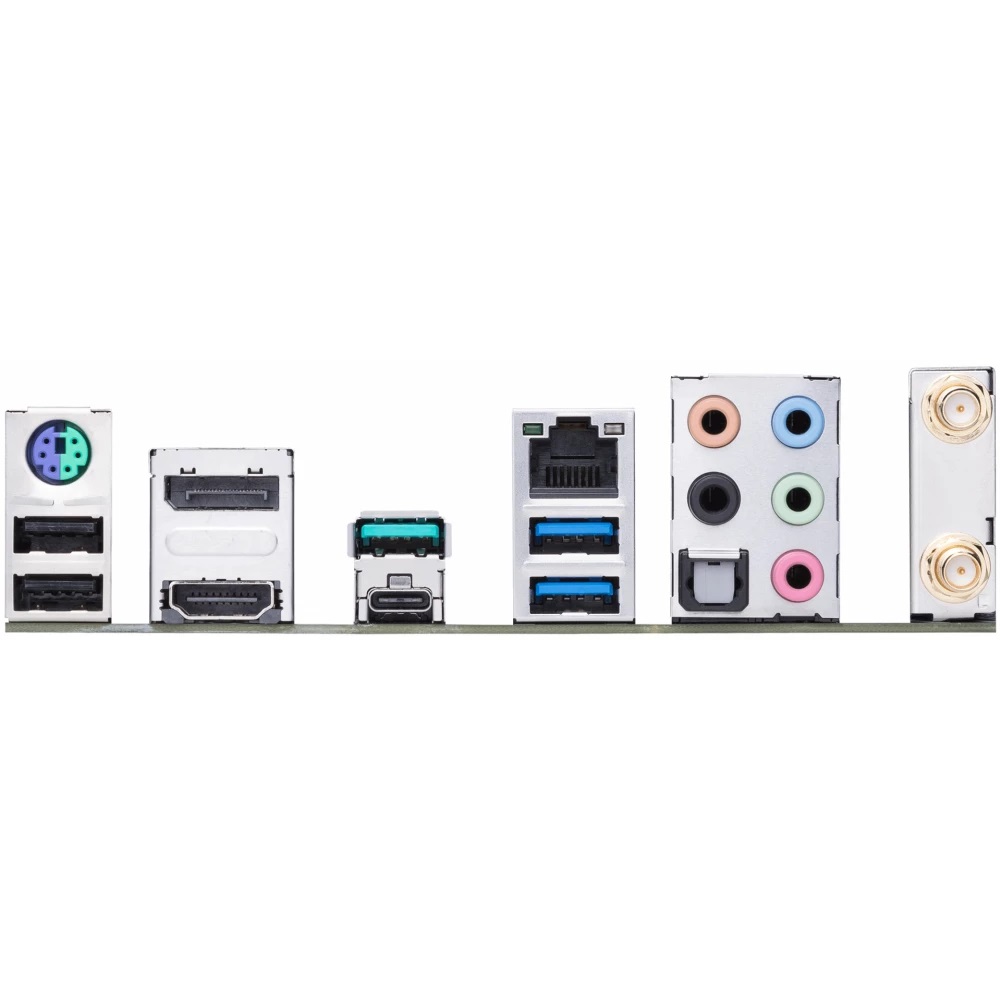

Back I/O Ports PS2 combo port, 2x USB2.0 (black), DisplayPort, HDMI, 1x USB 3.2 Gen2x2 (Type-C), 1x USB 3.2 Gen2 (teal), 2.5Gb LAN, 2x USB3.2 Gen1 (blue), Optical S/PDIF out port, 5x Audio jacks, Wi-Fi module
USB Ports Motherboard headers 1x USB 3.2 Gen 1, for Type-C, 2x USB 3.2 Gen 1 header, 2x USB 2.0 headers
Accessories Cables, 2x SATA 6Gb/s cables, I/O Shield, M.2 Rubber Package, 2x M.2 SSD screw packages, Support DVD, User manual
Form Factor ATX, 305 x 234 mm
Trust Platform Module (TPM) Support Yes
Thunderbolt Support Yes
