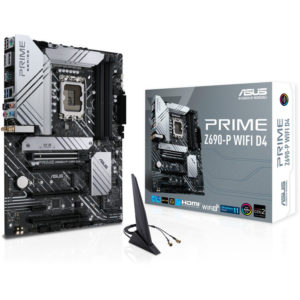

ASUS PRIME Z690-P WIFI D4 LGA 1700 ATX Motherboard

ASUS
  • Intel® LGA 1700 socket: Ready for 12th gen Intel® processors
  • Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
  • Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Next-gen connectivity: Intel® WiFi 6, DDR4, PCIe® 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support
Availability:

Out of stock

 77,760

Out of stock

Designed for 12th Gen Intel Processors
Designed to be used with 12th Gen Intel processors, the PRIME motherboard leverages the CPU’s power to deliver power and connectivity suitable for business professionals and gamers alike. When paired with an Intel 12th Gen processor, you unlock PCIe 5.0 connectivity, enhancing speeds for your RAM, M.2 storage devices, and your x16 expansion slot. Additionally, you gain support for Intel Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, enhancing system-wide performance.

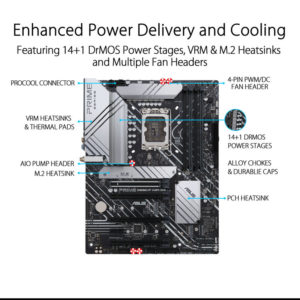

Power Design
The PRIME motherboard promotes durability, reliability, and stable power delivery with 14+1 DrMOS system, alloy chokes, and capacitors. ProCool connectors enhance conductivity between power cables and the motherboard interfaces ensuring your motherboard is gaining optimal connection to the power supply.

Cooling
Sporting a comprehensive cooling system designed to balance power and temperature, the PRIME Z690-P D4 utilizes many tools such as a large VRM heatsink, flexible M.2 heatsink, and a PCH heatsink to dissipate heat away from major board components. Hybrid fan headers allow you to connect and manage PWM fans, while Fan Xpert 4 software enables you to adjust fan settings when needed.

ASUS OptiMem II
Using ASUS’ proprietary trace layout, the PRIME motherboard allows memory kits to operate at higher frequencies and lower voltages to optimize system performance.

Thunderbolt 4 Header
An internal Thunderbolt header allows you to connect an optional Thunderbolt 4 card for enhanced connectivity. Experience up to 40 Gb/s data transfer speeds, daisy-chain capabilities, and displays for streamlined productivity.

Wireless Technologies
The PRIME Z690-P WIFI D4 uses Wi-Fi 6 (802.11ax) connectivity so you can access your wireless network whether you are at home or the office. Bluetooth 5.2 allows you to connect a wide range of wireless peripherals such mice, keyboards, controllers, speakers, and more for true cable-free experience.

DIY Friendly
Whether you are new or a seasoned builder, the PRIME boasts key enhancements designed to make installation of components a snap. The PCIe 5.0 x16 expansion port features SafeSlot technology which uses a metal bracket to reinforce the stability of the expansion port for greater retention, ideal for larger graphics cards. Q-LED Code tells you when key parts of your system are functioning as normal upon startup, which makes troubleshooting easy in the event of a failure. Q-DIMM makes installing RAM modules easy, enabling you to only flip one DIMM lock on the outside section instead of both.

ASUS 5X Protection III
Ensure your system is protected with a multitude of enhancements designed to maintain power and performance efficiency. DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, and a Stainless-Steel Back I/O all work together to keep your system running.

Customization

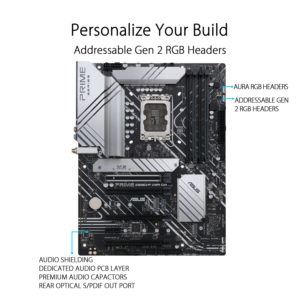

Illuminate your rig in an array of colors and effects with integrated RGB headers. Able to be used in tandem with ASUS AURA Sync and Armoury Crate, you can set custom colors and effects across internal lighting strips as well as external peripherals, adding a layer of self-expression to your desktop.

AI Suite 3
Take advantage of performance and power saving utilities and more with AI Suite 3 which uses an artificial intelligence to manage your system, taking the guesswork out so you can spend more time being productive.

UEFI BIOS
Manage your system and enable overclocking with UEFI BIOS. Advanced mode allows you to fine-tune your system with a wide range of settings and options while EZ mode simplifies the experience. EZ Flash 3 allows you to upgrade your BIOS firmware to the latest iteration by using a USB drive to save and upload the file. The CrashFree BIOS 3 rescue function resets your system in the event of an update failure or corruption.

SKU: 4711081471691 Categories: ,
CPU
Chipset Intel Z690
CPU Socket LGA 1700

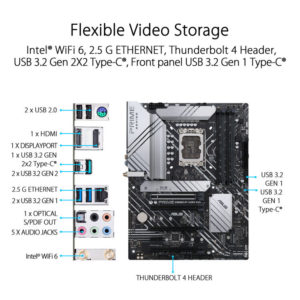

Back Panel I/O
USB 1 x USB 3.2 Gen 2×2 Type-C
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
2 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Thunderbolt None
Display 1 x DisplayPort
1 x HDMI
Audio 5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller 1 x Realtek 2.5Gigabit
PS/2 1 x Combo
Wi-Fi Antenna 2 x Connector

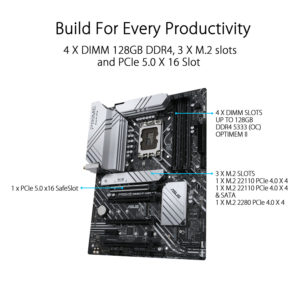

Memory
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4800, 5000, 5133, 5333 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC Unbuffered



Storage Expansion
SATA 4 x SATA III
M.2 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))
U.2 None
Optane Memory Support Yes
RAID Support RAID 0, 1, 5 (M.2)
RAID 0, 1, 5, 10 (SATA)



Internal I/O
Expansion Slots 1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
2 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x1
USB 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port)
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support None
Air Cooling 1 x 4-Pin CPU
1 x 4-Pin Assistant
3 x 4-Pin System
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
1 x 4-Pin ATX
Security TPM Header
LED Header 4 x RGB
Audio None
Diagnostics Clear CMOS
Add-On 1 x Thunderbolt Card Header
Legacy 1 x Serial
1 x Parallel



BIOS
ROM 192 Mb
Front Panel I/O
I/O Connection Headers AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2



Audio
Audio Codec Realtek (7.1-Channel)



Wireless
Bluetooth 5.2
Wi-Fi Wi-Fi 6 (802.11ax) (MU-MIMO)



Software
Supported Operating Systems Windows 10 (64-Bit)
