ASUS Republic of Gamers Strix B450-F Gaming AM4 ATX Motherboard
- Powered by 2nd generation AMD Ryzen AM4 and 7th generation Athlon processors to maximize connectivity and speed with dual NVMe M.2, USB 3.1 Gen2, gigabit LAN and up to 64GB of DDR4 (3200 MHz)
- 5-Way Optimization with Auto-Tuning and Fan Xpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling
- Aura Sync RGB lighting plus 2 additional RGB headers provide a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of enabled products
Availability:
Out of stock
₨ 22,140
Out of stock
ASUS Republic of Gamers Strix B450-F Gaming AM4 ATX Motherboard
CPU | AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors |
* Refer to www.asus.com for CPU support list | |
Chipset | AMD B450 |
Memory | AMD Ryzen™ Processors |
4 x DIMM, Max. 64GB, DDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory | |
Dual Channel Memory Architecture | |
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
Graphic | Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors |
Multi-VGA output support : HDMI/DisplayPort ports | |
– Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz | |
– Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz | |
Multi-GPU Support | AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors |
Supports AMD 3-Way CrossFireX™ Technology | |
Expansion Slots | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors |
2 x PCIe 3.0/2.0 x16 (x16 or x8/x4) | |
AMD Ryzen™ with Radeon™ Vega Graphics Processor | |
1 x PCIe 3.0/2.0 x16 (x8 mode) | |
AMD B450 chipset | |
1 x PCIe 2.0 x16 (max at x4 mode) *1 | |
3 x PCIe 2.0 x1 | |
Storage | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors : *2 |
1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 | |
1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4 | |
2 x SATA 6Gb/s port(s) | |
AMD Ryzen™ with Radeon™ Vega Graphics Processor : *2 | |
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 | |
2 x SATA 6Gb/s port(s) | |
AMD B450 chipset : | |
4 x SATA 6Gb/s port(s), | |
Support Raid 0, 1, 10 | |
LAN | Intel® I211-AT, 1 x Gigabit LAN Controller(s) |
Anti-surge LANGuard | |
ROG GameFirst Technology | |
Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A |
– Dual OP Amplifiers | |
– Impedance sense for front and rear headphone outputs | |
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
– SupremeFX Shielding Technology | |
– Supports up to 32-Bit/192kHz playback *5 | |
Audio Feature : | |
– Optical S/PDIF out port(s) at back panel | |
– Sonic Radar III | |
– Sonic Studio III + Sonic Studio Link | |
USB Ports | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation : |
3 x USB 3.1 Gen 1 port(s) (3 at back panel, blue) | |
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation : | |
1 x USB 3.1 Gen 1 port(s) (1 at back panel, , Type-C) | |
AMD B450 chipset : | |
2 x USB 3.1 Gen 2 port(s) (2 at back panel, red) | |
AMD B450 chipset : | |
2 x USB 3.1 Gen 1 port(s) | |
AMD B450 chipset : | |
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) | |
ROG Exclusive Features | ROG RAMCache II |
ROG CPU-Z | |
Pre-mounted I/O Shield | |
Overwolf | |
GameFirst IV | |
Special Features | 5-Way Optimization by Dual Intelligent Processors 5 |
– Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. | |
TPU | |
– Auto Tuning, TurboV, GPU Boost | |
Fan Xpert4 | |
– Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control | |
Gamer’s Guardian: | |
– ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports | |
– DRAM Overcurrent Protection | |
– Highly Durable Components | |
– SafeSlot | |
ASUS EPU : | |
– EPU | |
AURA : | |
– Aura Lighting Control | |
– Aura RGB Strip Headers | |
– Aura Lighting Effects Synchronization with compatible ASUS ROG devices | |
ASUS Exclusive Features : | |
– AI Suite 3 | |
– Ai Charger | |
– ASUS Grid | |
ASUS EZ DIY : | |
– ASUS CrashFree BIOS 3 | |
– ASUS EZ Flash 3 | |
ASUS Q-Design : | |
– ASUS Q-Shield | |
– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) | |
– ASUS Q-Slot | |
– ASUS Q-DIMM | |
Digi+VRM | |
Turbo APP | |
– featuring system performance tuning for selected applications | |

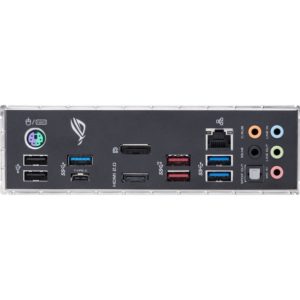

Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) |
1 x DisplayPort | |
1 x HDMI | |
1 x LAN (RJ45) port(s) | |
2 x USB 3.1 Gen 2 (red)Type-A, | |
4 x USB 3.1 Gen 1 (blue) , | |
2 x USB 2.0 | |
1 x Optical S/PDIF out | |
5 x Audio jack(s) | |
Internal I/O Ports | 2 x Aura RGB Strip Headers |
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) | |
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) | |
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) | |
1 x TPM header | |
1 x COM port(s) connector(s) | |
6 x SATA 6Gb/s connector(s) | |
1 x CPU Fan connector(s) | |
1 x CPU OPT Fan connector(s) | |
3 x Chassis Fan connector(s) | |
1 x AIO_PUMP connector | |
1 x 24-pin EATX Power connector(s) | |
1 x 8-pin EATX 12V Power connectors | |
1 x Front panel audio connector(s) (AAFP) | |
1 x System panel(s) | |
1 x Thermal sensor connector(s) | |
1 x Clear CMOS jumper(s) | |
Operating System | Windows® 10 64-bit |
Windows® 7 64-bit *6 | |
Form Factor | ATX Form Factor |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
Note | *1 PCIe x16_3 slot shares bandwidth with PCIe x1_2 and PCIe x1_3. |
*2 Support StoreMI and NVMe RAID | |
*3 When the M.2_1 Socket 3 is operating in SATA or PCIE mode, SATA6G_5/6 ports will be disabled. | |
*4 When the M.2_2 is occupied by M.2 device, PCIe x16_1 will run at x8 mode. | |
*5 *Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. | |
*6 *Windows 7 64-bit is only supported when using AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors |
