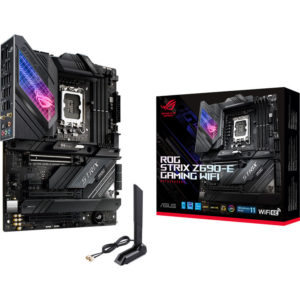

ASUS ROG STRIX Z690-E GAMING WIFI LGA 1700 ATX Motherboard

ASUS
  • Ready for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
  • Optimal Power Solution: 18+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors

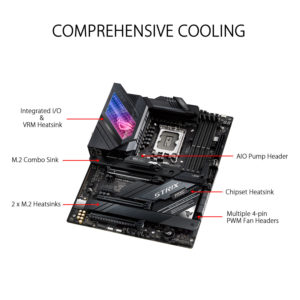

  • Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, an M.2 Combo-sink for PCIe® 5.0 M.2 slot and M.2 heatsinks for two M.2 slots
  • High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, five M.2 slots (including two on the bundled ROG Hyper M.2 card) plus USB 3.2 Gen 2×2 Type-C®
  • Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
  • DIY Friendly Design: PCIe® Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button

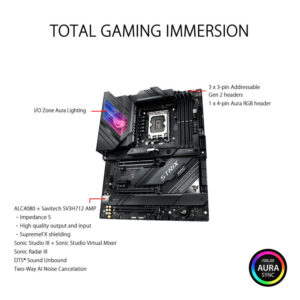

  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers
  • Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
  • Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

 128,520

SKU: 4711081494645 Categories: ,
Product Specification
CPU
Chipset Intel Z690
CPU Socket LGA 1700



Back Panel I/O
USB 1 x USB 3.2 Gen 2×2 Type-C
2 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
4 x USB 2.0 Type-A
Thunderbolt None
Display 1 x HDMI 2.1
1 x DisplayPort 1.4
Audio 5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller 1 x Intel I225-V 2.5Gigabit
Wi-Fi Antenna 2 x Connector
Buttons BIOS Flashback, Clear CMOS



Memory
Memory Slots 4 x 288-Pin
Memory Support DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC Unbuffered



Storage Expansion
SATA 6 x SATA III
M.2 1 x M Key 2242, 2260, 2280, 22110 (PCIe 5.0 x4)
1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
U.2 None
DIMM.2 2 Slots Supporting M Key 2242, 2260, 2280, 22110 PCIe 5.0 x4, PCIe 4.0 x4, PCIe 3.0 x4
Optane Memory Support No
RAID Support RAID 0, 1, 5, 10



Internal I/O
Expansion Slots 1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x1
USB 1 x USB 3.2 Gen 2×2 Header (Supports 1 USB Type-C Port)
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support None
Air Cooling 2 x 4-Pin CPU
5 x 4-Pin System
1 x Thermal Sensor
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
2 x 8-Pin ATX
Security Chassis Intrusion, TPM Header
LED Header 4 x RGB
Audio 1 x Speaker
Diagnostics CPU Overclock
Add-On 1 x Thunderbolt Card Header



BIOS
ROM 256 Mb



Front Panel I/O
I/O Connection Headers AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.2 Gen 2×2



Audio
Audio Codec SupremeFX ALC4080 (7.1-Channel)



Wireless
Bluetooth 5.2
Wi-Fi Wi-Fi 6E (802.11ax) (MU-MIMO)



Software
Supported Operating Systems Windows 10 (64-Bit)
Windows 11 (64-Bit)



Physical
Form Factor ATX
Dimensions 12.0 x 9.6″ / 30.5 x 24.4 cm
