AM4 Socket, Asus Motherboards
ASUS ROG CROSSHAIR VIII HERO (WI-FI) AMD ATX Gaming Motherboard
- AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors; also supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed.

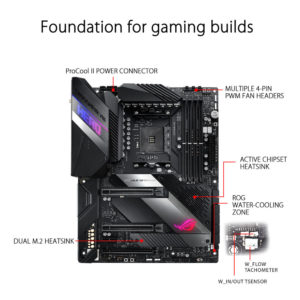

- Comprehensive thermal design: Active chipset heatsink, M.2 aluminum heatsink and ROG Cooling Zone.

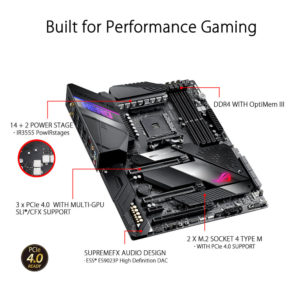

- Robust power delivery: Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors.
- High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 2.5 Gbps Ethernet and Gigabit Ethernet, both with ASUS LANGuard protection, and support for GameFirst V software.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
- DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS FlashBack™ and premium components for maximum endurance.
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers.
- Industry-leading ROG audio: ROG SupremeFX S1220 is combined with the venerable ESS® ES9023P to deliver high-fidelity audio to headsets and exotic cans.
Availability:
Out of stock
₨ 95,742
Out of stock
Product Specification
Chipset | AMD X570 |
CPU Socket | AM4 |

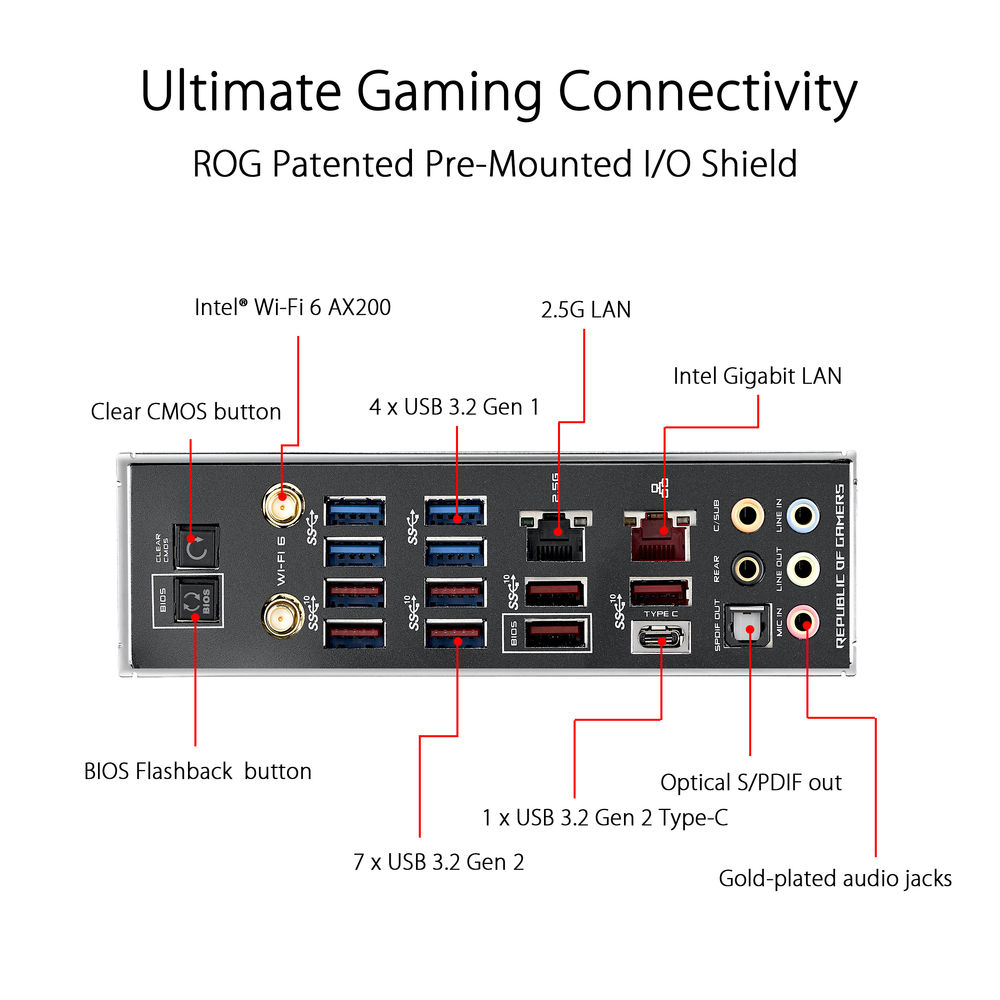

USB | 4 x USB 3.1 / USB 3.2 Gen 1 Type-A 7 x USB 3.1 / USB 3.2 Gen 2 Type-A 1 x USB 3.1 / USB 3.2 Gen 2 Type-C |
Thunderbolt | None |
Display | None |
Audio | 5 x 3.5 mm 1 x S/PDIF |
Ethernet / Controller | 1 x Intel I211-AT Gigabit 1 x Realtek RTL8125-CG 2.5Gigabit |
Wi-Fi Antenna | 2 x Connector |
Buttons | BIOS Flashback, Clear CMOS |
Memory Slots | 4 x 288-Pin |
Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4800 MHz |
Maximum Capacity | 128 GB |
Channel Architecture | Dual Channel |
SATA | 8 x SATA III |
M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA III) |
U.2 | None |
RAID Support | RAID 0, 1, 10 |
Expansion Slots | 3 x PCIe 4.0 x16 1 x PCIe 4.0 x1 |
USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Port) 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) 1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port) |
Multi-GPU Support | 3-Way NVIDIA SLI 3-Way AMD CrossFireX |
Air Cooling | 1 x 4-Pin CPU 2 x 4-Pin Assistant 3 x 4-Pin System 1 x Thermal Sensor 1 x 2-Pin W_IN 1 x 2-Pin W_OUT 1 x 3-Pin W_FLOW |
Liquid Cooling | 2 x 4-Pin Pump |
Power Connectors | 1 x 24-Pin Mainboard 1 x 8-Pin CPU 1 x 4-Pin CPU |
Security | TPM Module |
LED Header | 4 x RGB |
Audio | 1 x Speaker |
Diagnostics | LN Mode, Reset, ReTry, Safe Boot, Slow Mode, Start |
ROM | 256 Mb |
I/O Connection Headers | AAFP |
Audio Codec | SupremeFX S1220 (8-Channel) |
DAC | ESS ES9023P |
Bluetooth | 5.0 |
Wi-Fi | Wi-Fi 6 (802.11ax) (MU-MIMO) |
Module Support | 1 E Key M.2 |
Supported Operating Systems | Windows 10 (64-Bit) |
Form Factor | ATX |
Dimensions | 9.6 x 12″ / 243.84 x 304.80 mm |
