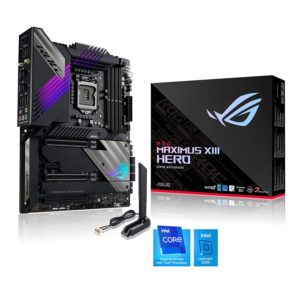

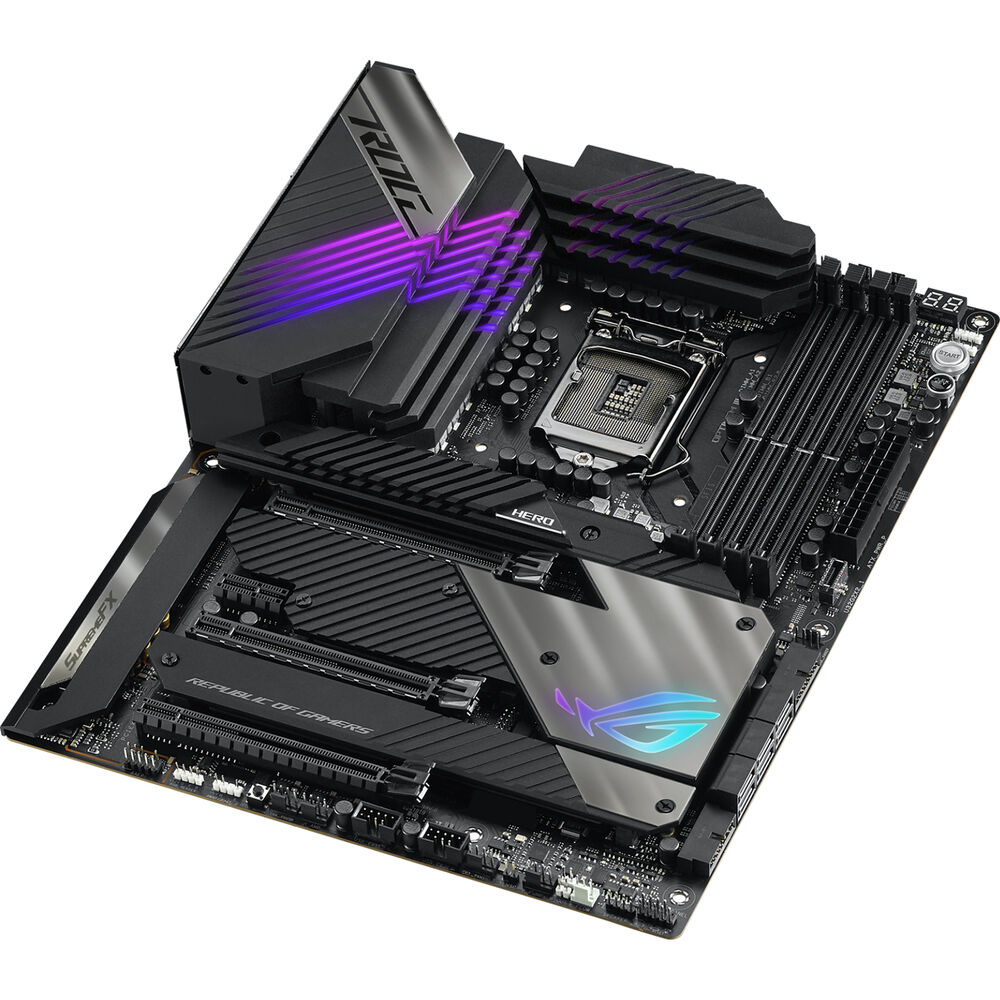

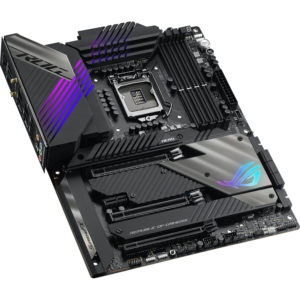

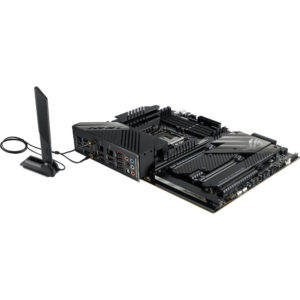

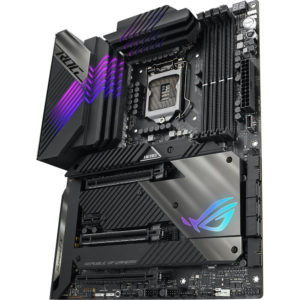

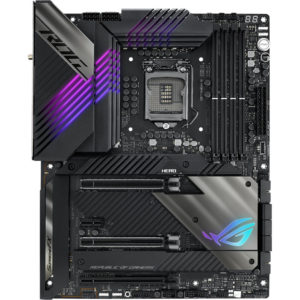

ASUS ROG MAXIMUS XIII HERO ATX LGA 1200 Gaming Motherboard

ASUS
  • Intel® Socket LGA 1200 for 11th Gen Intel® Core™ processors and 10th Gen Intel® CoreTM, Pentium® Gold and Celeron® Processors
  • Intelligent Control: ASUS-exclusive software and firmware utilities that simplify setup and improve performance: AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation
  • Robust Power Solution: 14+2 teamed power stages rated for 90 Amps, ProCool II power connectors, MicroFine alloy chokes and 10K Japanese-made black metallic capacitors
  • Optimized Thermal Design: Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, quad M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone
  • High-performance Networking: Onboard WiFi 6E (802.11ax), dual Intel® 2.5 Gb Ethernet and ASUS LANGaurd.
  • Fastest Gaming Connectivity: PCIe 4.0, quad M.2, USB 3.2 Gen 2×2 front-panel connector, dual USB Type-C® ports with Thunderbolt™ 4 USB-C®
  • Industry-leading Gaming Audio: ROG SupremeFX ALC4082 with ESS® ES9018Q2C DAC for high-fidelity audio
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
  • DIY-friendly Design: Pre-mounted I/O shield, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, SafeSlot and Graphics Card Holder
  • Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

 89,000

SKU: ROG MAXIMUS XIII HERO Categories: ,

Product Specification

CPU
Chipset Intel Z590
CPU Socket LGA 1200

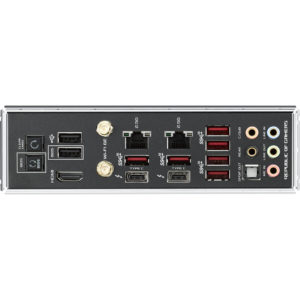

Back Panel I/O
USB 6 x USB 3.1 / USB 3.2 Gen 2 Type-A
2 x USB 2.0 Type-A
Thunderbolt 2 x Thunderbolt 4
Display 1 x HDMI 2.0
Audio 5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller 2 x Intel I225-V 2.5Gigabit
Wi-Fi Antenna 2 x Connector
Buttons BIOS Flashback, Clear CMOS
Memory
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800, 5000, 5133, 5333 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC Unbuffered
Storage Expansion
SATA 6 x SATA III
M.2 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, PCIe 3.0 x4)
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4)
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4)
U.2 None
Optane Memory Support Yes
Internal I/O
Expansion Slots 2 x PCIe 4.0 x16
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1
USB 1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support 2-Way NVIDIA SLI
Air Cooling 1 x 4-Pin CPU
3 x 4-Pin System
1 x 2-Pin W_IN
1 x 2-Pin W_OUT
1 x 3-Pin W_FLOW
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
Security TPM Module
LED Header 4 x RGB
Audio 1 x Speaker
Diagnostics ReTry, Start
BIOS
ROM 256 Mb
Front Panel I/O
I/O Connection Headers AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.2 Gen 2×2
Audio
Audio Codec SupremeFX ALC4082 (7.1-Channel)
Software
Supported Operating Systems Windows 10 (64-Bit)
Physical
Form Factor ATX
Dimensions 12.0 x 9.6″ / 30.5 x 24.4 cm
