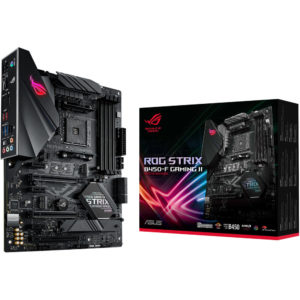

ASUS ROG Strix B450-F Gaming II AM4 ATX Motherboard

ASUS
  • AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors
  • Robust power solution: 8+4 discrete MOS with high-quality alloy chokes and durable capacitors
  • Gaming-optimized connectivity: Dual M.2, USB 3.2 Gen 2, plus HDMI® 2.0 and DisplayPort™ 1.2 output support
  • Smooth networking: M.2 socket with E-key and Intel® Gigabit Ethernet with ASUS LANGuard
  • Intuitive software: Easy-to-use UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
  • DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
  • Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable RGB header
  • Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec and Sonic Studio III for immersive sound
Availability:

Out of stock

 27,000

Out of stock

SKU: ROG STRIX B450-F GAMING II Categories: ,

Product Specification

CPU
Chipset AMD B450
CPU Socket AM4

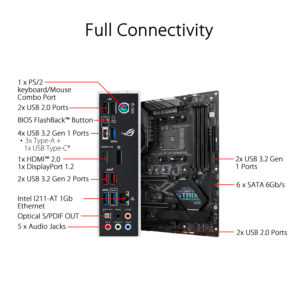

Back Panel I/O
USB 2 x USB 3.1 / USB 3.2 Gen 2 Type-A
3 x USB 3.1 / USB 3.2 Gen 1 Type-A
1 x USB 3.1 / USB 3.2 Gen 1 Type-C
2 x USB 2.0 Type-A
Thunderbolt None
Display 1 x DisplayPort 1.2
1 x HDMI 2.0b
Audio 5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller 1 x Intel I211-AT Gigabit
PS/2 1 x Combo
Buttons BIOS Flashback
Memory
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 3000, 3200, 3466, 3600, 3866, 4000, 4400 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC, ECC Unbuffered
Storage Expansion
SATA 6 x SATA III
M.2 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA (Unspecified))
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4)
U.2 None
RAID Support RAID 0, 1, 10 (SATA)
Internal I/O
Expansion Slots 2 x PCIe 3.0 x16
1 x PCIe 2.0 x16 (x4 mode)
3 x PCIe 2.0 x1
USB 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
1 x USB 2.0 Header (Supports 2 USB Type-A Port)
Multi-GPU Support 3-Way AMD CrossFireX
Air Cooling 2 x 4-Pin CPU
3 x 4-Pin System
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
Security TPM Module
LED Header 3 x RGB
Audio None
Diagnostics Clear CMOS
Legacy 1 x Serial
BIOS
ROM 256 Mb
Front Panel I/O
I/O Connection Headers AAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec SupremeFX S1220A (7.1-Channel)
Wireless
Module Support 1 E Key M.2
Software
Supported Operating Systems Windows 10 (64-Bit)
Physical
Form Factor ATX
Dimensions 9.6 x 12.0″ / 24.4 x 30.5 cm
