ASUS ROG STRIX B660-A GAMING WI-FI D4 LGA 1700 ATX Motherboard

ASUS
  • Intel® LGA 1700 Socket: Ready for 12th Gen Intel Core, Pentium® Gold and Celeron® processors

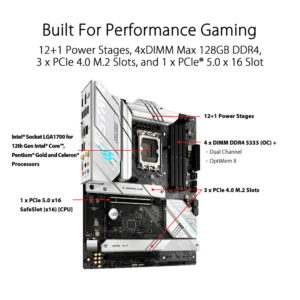

  • Optimal Power Solution: 12+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors

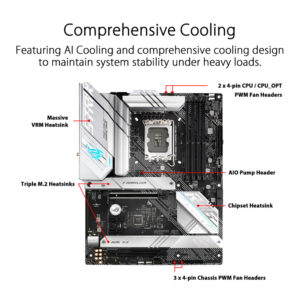

  • Optimized Thermal Design: Integrated I/O cover, VRM heatsinks with high conductivity thermal pads, and three onboard M.2 heatsinks
  • High-performance Networking: On-board Intel® WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2×2 Type-C®
  • Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
  • DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button and Q-LED

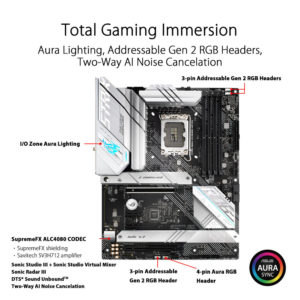

  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers
  • Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound™ and Sonic Studio III
  • Renowned Software: Bundled 60-day free trial of AIDA64 Extreme, and an intuitive UEFI BIOS dashboard
Availability:

Out of stock

 45,000

Out of stock

SKU: 4711081521525 Categories: ,

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 12th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

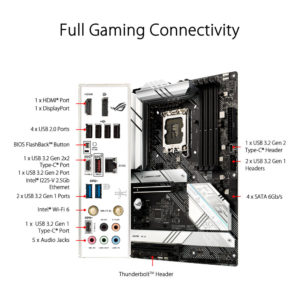

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
1 x USB 3.1
1 x USB-C 3.0
2 x USB 3.0
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports _3_ ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Auxiliary Audio Support 1 x CPU fan header
1 x CPU_OPT fan header
1 x AIO Pump header
3 x Chassis fan headers
S/PDIF Connectors 1 x S/PDIF Out header
Thunderbolt Port(s) 1 x Thunderbolt header
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
1 x 4-pin EPS
Other Connectors 2 x M.2 slots, Key M, Type 2242/2260/2280/22110 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4x2)
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header

Memory

Memory Bus Speed 5333+ MHz
Memory Type DDR4
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Chipset Manufacturer Intel
Northbridge B660
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 3.0 x16 slot (@ x4)
2 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Warranty

Warranty 3 Years

Network

Integrated Network Intel
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2

System Requirements

Operating Systems Supported Microsoft Windows 11 / 10 64-bit

System

BIOS 192 Mb Flash ROM, UEFI AMI BIOS
Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard

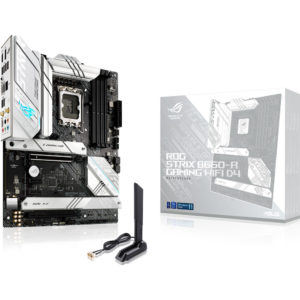

In The Box ASUS ROG Strix B660-A Gaming WIFI D4 Motherboard
4 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Rubber Package(s)
1 x M.2 Q-Latch package(s)
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
1 x Support DVD
1 x User guide
Width 305 mm
Length 244 mm

Key Features

Motherboard Model ASUS ROG Strix B660-A Gaming WIFI
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
Memory Speed 6000 MHz
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Firewire No
Wireless Network Yes
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 9 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard Power Connectors 4 + 8-Pin
Motherboard Chipset Intel B660
