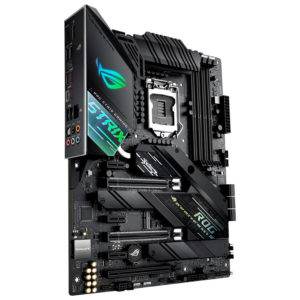

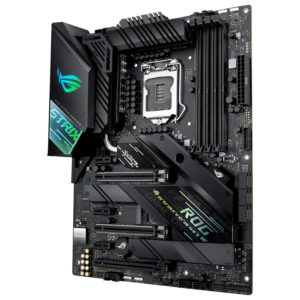

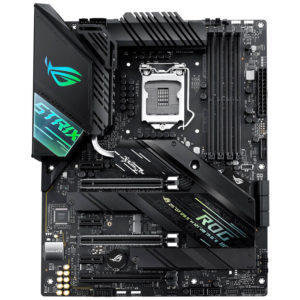

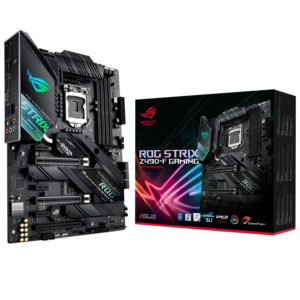

ASUS ROG STRIX Z490-F GAMING LGA 1200 ATX Motherboard

ASUS
  • Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors
  • Robust Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to provide reliable power even when push the CPU performance to the limit
  • Optimized Thermal Design: Except comprehensive heatsink, heatpipe and fan headers, features low-noise AI cooling to balance thermals and acoustics by reducing fan speeds and maintaining a 5 Celsius delta
  • High-performance Gaming Networking: On-board Intel WiFi 6 AX201 (802. 11 ax) and Intel 2. 5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI 1. 4 and DisplayPort 1. 4 output, and featuring dual M. 2 , front panel USB 3. 2 Gen 2 Type-C connector
Ad
Availability:

Out of stock

₨ 46,440

Out of stock

Add to Wishlist
Compare

General Features



ALL-ROUND PERFORMANCE
ROG Strix Z490-F Gaming helps you get the most out of your gaming build with up-rated power delivery and optimised cooling. Intelligent controls let you manage overclocking, cooling and networking settings easily, giving you everything you need to harness the full potential of your build for top-tier gaming performance.

COOLER BY DESIGN
ROG Strix Z490 series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.

LEADING CONNECTIVITY
ROG Strix Z490-F Gaming provides you with the latest connectivity for super smooth online experiences and blisteringly-fast file transfer

OUTSHINE THE COMPETITION
ROG Strix motherboards deliver sterling performance and superior aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

CERTIFIED COMPATIBILITY
ROG Strix undergoes an extensive certification program to ensure the very best compatibility with the widest range of components and devices. Refer to the extensive list of guaranteed-compatible components, it also includes a dedicated Qualified Vendor List (QVL) for memory — so you can build fuss-free. See ASUS website for more information.

5-WAY OPTIMISATION
Take care of complex tuning with just one click. ASUS 5-Way Optimisation is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimisation leverages the same onboard intelligence as AI Overclocking, but goes further by running a Prime95 based stress test to deliver a result that’s well-tuned from the get-go.s. Superior audio performance gives you a massive advantage, allowing you to pick up on the smallest audio cues for a completely immersive experience.

SKU: 4718017674300 Categories: ,
  • CPU
    Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list
    **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset
    Intel® Z490
  • Memory
    4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor
    1 x DisplayPort 1.4 *
    1 x HDMI 1.4b
    *Graphics specifications may vary between CPU types.
    **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
  • Multi-GPU Support
    Supports NVIDIA 2-Way SLI® Technology
    Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
    Intel® 10th Gen Processors
    2 x PCIe 3.0 x16 (x16 or dual x8)
    Intel® Z490 Chipset
    1 x PCIe 3.0 x16 (max at x4 mode)
    3 x PCIe 3.0 x1
  • Storage
    Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
    Intel® Z490 Chipset :
    1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Optane™ Memory Ready
  • LAN
    Intel® I225-V 2.5Gb Ethernet
    ASUS LANGuard
  • Wireless Data Network
    M.2 slot only (Key E) (Support CNVI interface)*
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
    – Dual OP Amplifiers
    – Impedance sense for front and rear headphone outputs
    – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    – Supports up to 32-Bit/192kHz playback *
    Audio Feature :
    – SupremeFX Shielding™ Technology
    – Gold-plated jacks
    – Optical S/PDIF in port(s) at back panel
    – Audio Shielding
    – Premium Japanese audio capacitors
    – Audio Cover
    * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
  • USB Ports
    Rear USB Port ( Total 8 )
    4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x Type-C)
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    2 x USB 2.0 port(s)
    Front USB Port ( Total 7 )
    1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C®)
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    2 x USB 2.0 port(s)
