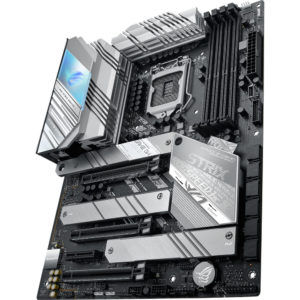

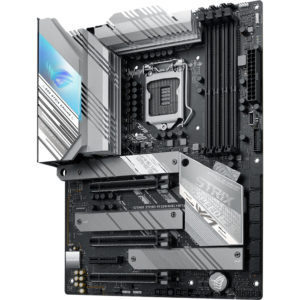

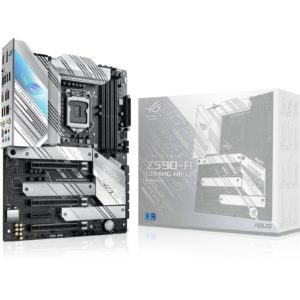

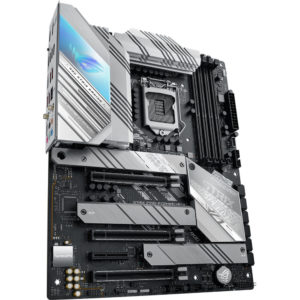

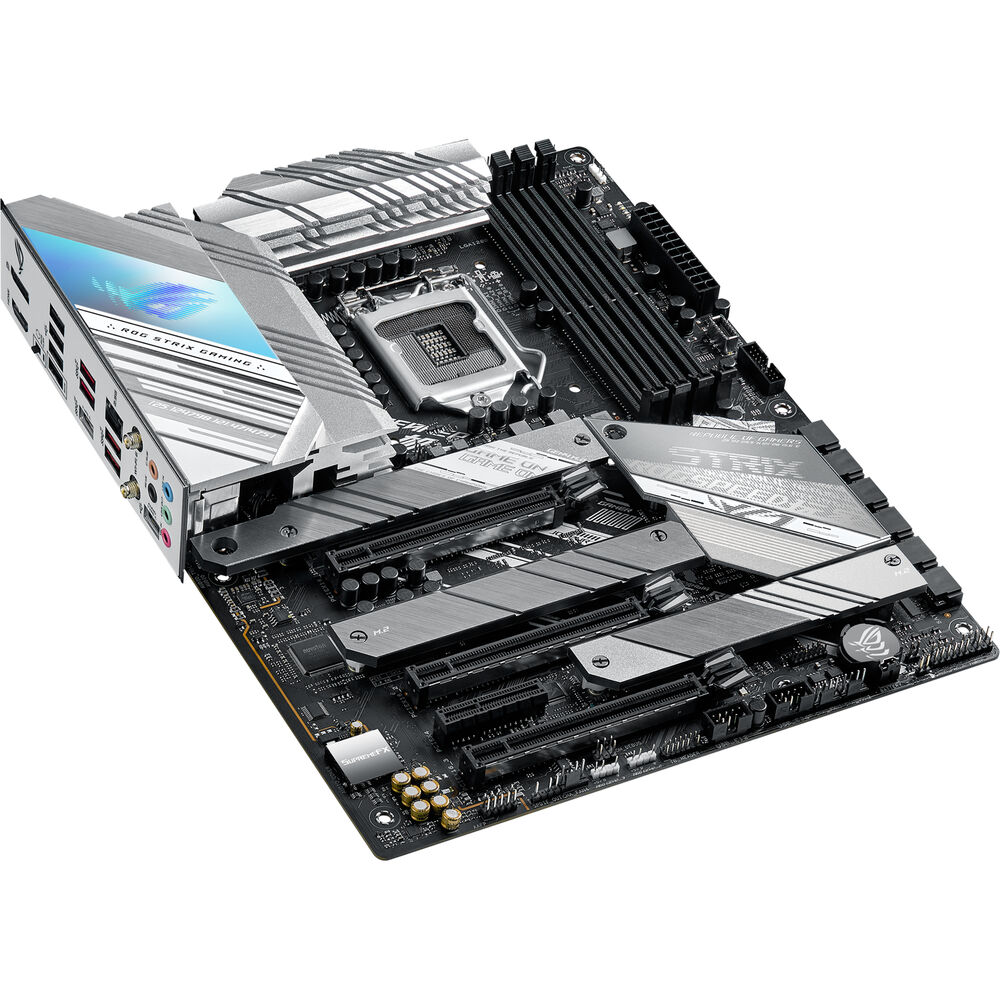

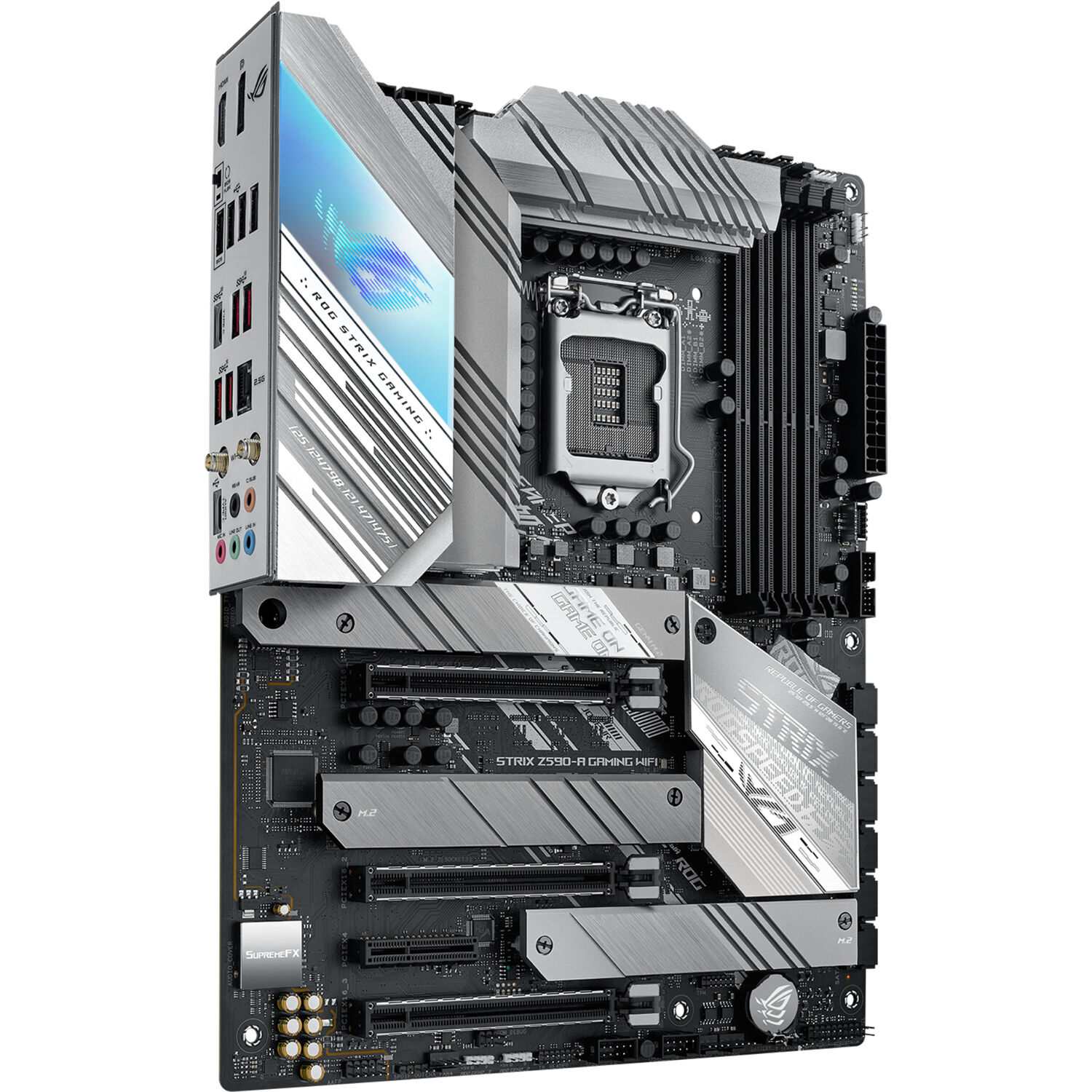

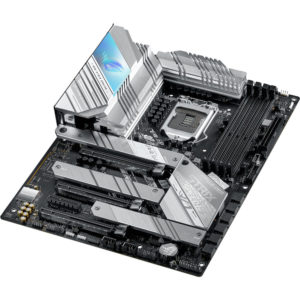

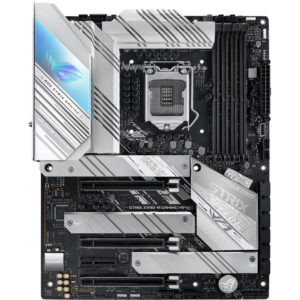

ASUS ROG STRIX Z590-A GAMING WIFI LGA 1200 ATX Motherboard

ASUS
  • Ready for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Optimal Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Optimized Thermal Design: VRM and aluminum I/O heatsink, three onboard M.2 heatsinks, including an M.2 backplate for the PCIe 4.0 M.2 slot
  • High-performance Networking: On-board Intel® WiFi 6 AX200 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2×2 USB Type-C®
  • Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
  • DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ and FlexKey
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB header and Gen 2 addressable headers
  • Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
  • Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
Availability:

Out of stock

 53,000

Out of stock

Product Specification

Brand ASUS
Series ROG
Model Strix Z590-A Gaming WiFi
CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors*
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
*Refer to www.asus.com for CPU support list.
**Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel Z590 Chipset
Memory Memory Channels: 4x DDR4 (Dual channel)
Max Memory Size: 128GB
DDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4267(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
*10th Gen Intel Core i7/i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
*11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively.
*Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics 1x DisplayPort 1.4**
1x HDMI 2.0**
*Graphics specifications may vary between CPU types.
**Only Intel 11th processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates
***Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.
Expansion Slots Intel 11th & 10th Gen Processors:
3x PCIe 4.0/3.0 x16 slot(s)*
– Intel 11th processors support PCIe 4.0 x16 or x8/x4/x4 mode(s)
– Intel 10th processors support PCIe 3.0 x16 or x8/x4/x4 mode(s)
Intel Z590 Chipset:
1x PCIe 3.0 x4 slot
*Supports PCIe bandwidth bifurcation for RAID on CPU function.
Storage Supports 3x M.2 slots and 6x SATA 6Gb/s ports
Intel 11th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110
– Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.
Intel Z590 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**
6x SATA 6Gb/s ports
Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
*When M.2_2 is operating in SATA device, SATA6G_2 will be disabled.
**When M.2_3 is operating in SATA device, SATA6G_6 will be disabled.
Ethernet 1x Intel 2.5Gb Ethernet
USB Rear USB:
Total 10 ports
1x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C)
4x USB 3.2 Gen 2 port (4 x Type-A)
5x USB 2.0 port(s) (4 x Type-A 1 x USB Type-C)
Front USB:
Total 7 ports
1x USB 3.2 Gen 1 connector(s) (support(s) USB Type-C)
1x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– SupremeFX Shielding Technology
– ALC4080 Savitech SV3H712 AMP
– audio jacks
– Rear audio USB Type-C port
– Premium Japanese audio capacitors
– Audio cover

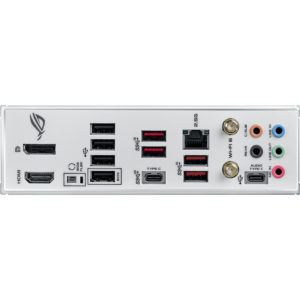

Back Panel I/O Ports 1x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C)
4x USB 3.2 Gen 2 port(s) (4 x Type-A)
5x USB 2.0 port(s) (4 x Type-A, 1 x Audio USB Type-C)
1x HDMI port
1x DisplayPort
1x ASUS Wi-Fi Module
1x Intel I225-V 2.5Gb Ethernet
5x Audio jacks
1x BIOS FlashBack button
Internal I/O Connectors 1x 4-pin CPU Fan header(s)
1x 4-pin CPU OPT Fan header(s)
1x 4-pin AIO Pump header(s)
4x 4-pin Chassis Fan header(s)
1x VRM heatsink Fan header
1x 24-pin Main Power connector
1x 8-pin 12V Power connector
1x 4-pin 12V Power connector
3x M.2 slots (Key M)
6x SATA 6Gb/s ports
1x USB 3.2 Gen 1 connector (support(s) USB Type-C)
1x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
3x AURA Addressable Gen 2 header(s)
1x AURA RGB header(s)
1x Clear CMOS header
1x CPU Over Voltage jumper
1x Front Panel Audio header (AAFP)
1x SPI TPM header (14-1pin)
1x 20-3 pin System Panel header with Chassis intrude function
1x Thermal Sensor header
1x Thunderbolt header
1x S/PDIF out header
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories 1x ROG audio USB Type-C Cable
4x SATA 6Gb/s Cables

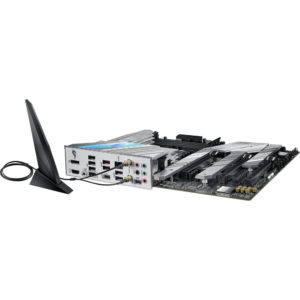

1x ASUS 2×2 Dual-Band Wi-Fi Moving Antennas
1x Cable Ties Pack
1x M.2 Q-Latch Package
2x M.2 Rubber Packages
1x ROG Key Chain
1x ROG STRIX Sticker
1x ROG STRIX Thank You Card
1x Support DVD
1x User Manual
Operating System Windows 10 64-bit
Form Factor ATX
30.5cm x 24.4cm
