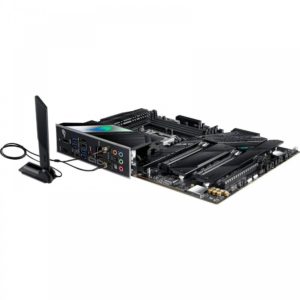

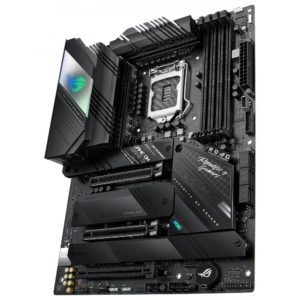

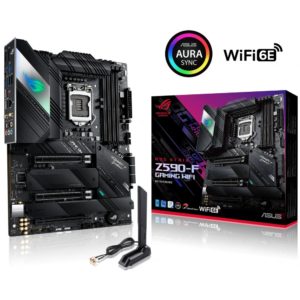

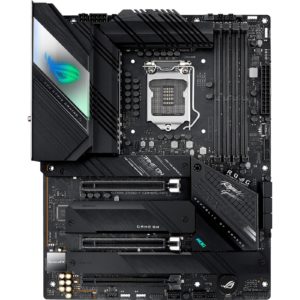

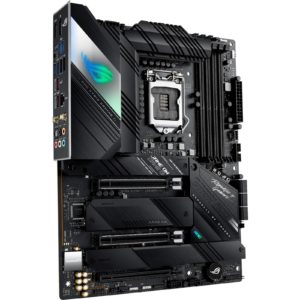

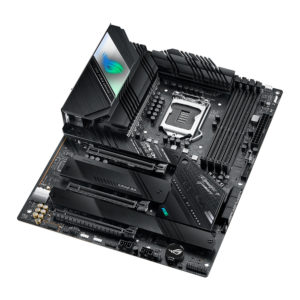

ASUS ROG STRIX Z590-F GAMING WIFI LGA 1200 ATX Motherboard

ASUS
  • Ready for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Optimal Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Optimized Thermal Design: VRM and aluminum I/O heatsink, L-shaped heatpipe, four onboard M.2 heatsinks, and an M.2 backplate for the PCIe 4.0 M.2 slot
  • High-performance Networking: On-board Intel® WiFi 6E AX210 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2×2 USB Type-C®
  • Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
  • DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™, Clr CMOS button, and FlexKey
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB header and Gen 2 addressable headers
  • Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
  • Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

 60,000

SKU: ROG STRIX Z590-F GAMING WIFI Categories: ,

Product Specification

Processor
Processor manufacturer: Intel
processor socket : LGA 1200
Compatible processors: Intel® Celeron®, Intel® Core ™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium®G
Supported processor slots : LGA 1200 (Socket H5)

Memory
Supported RAM: DDR4-SDRAM
Number of memory slots: 4
Maximum RAM memory: 128 GB
RAM type: DIMM
Memory channels : Dual-channel
Without ECC: Yes
Supported RAM speed: 2133,2400,2666,2800,2933,3000,3200,3333 , 3400,3466,3600,3733,3866,4000,4133,4266,4400,4500,4600,4700,4800,5000,5133,5333 MHz
Unbuffered memory: Yes

Storage controller
Supported storage drive interfaces: M.2, SATA III
Supported storage drives: HDD & SSD
Number of supported storage drives: 10

Graphics
Parallel processing technology: Not supported
Maximum resolution: 5120 x 2880 pixels

Internal I / O connections
Number of USB 2.0 interfaces: 2
USB 3.2 Gen 1 (3.1 Gen 1) Connections: 1
USB 3.2 Gen 2 (3.1 Gen 2) Connections: 1
SATA III connections: 6
Front panel audio plug: Yes
ATX power plug (24 -pol.): Yes
Power Fan Connector: Yes
CPU fan connector: Yes
Number of chassis fan connector: 3
EPS power
connector (8-pin): Yes TPM connector: Yes
Thunderbolt pin headers: 1
12 V power connector: Yes
RGB-LED Pin header: Yes

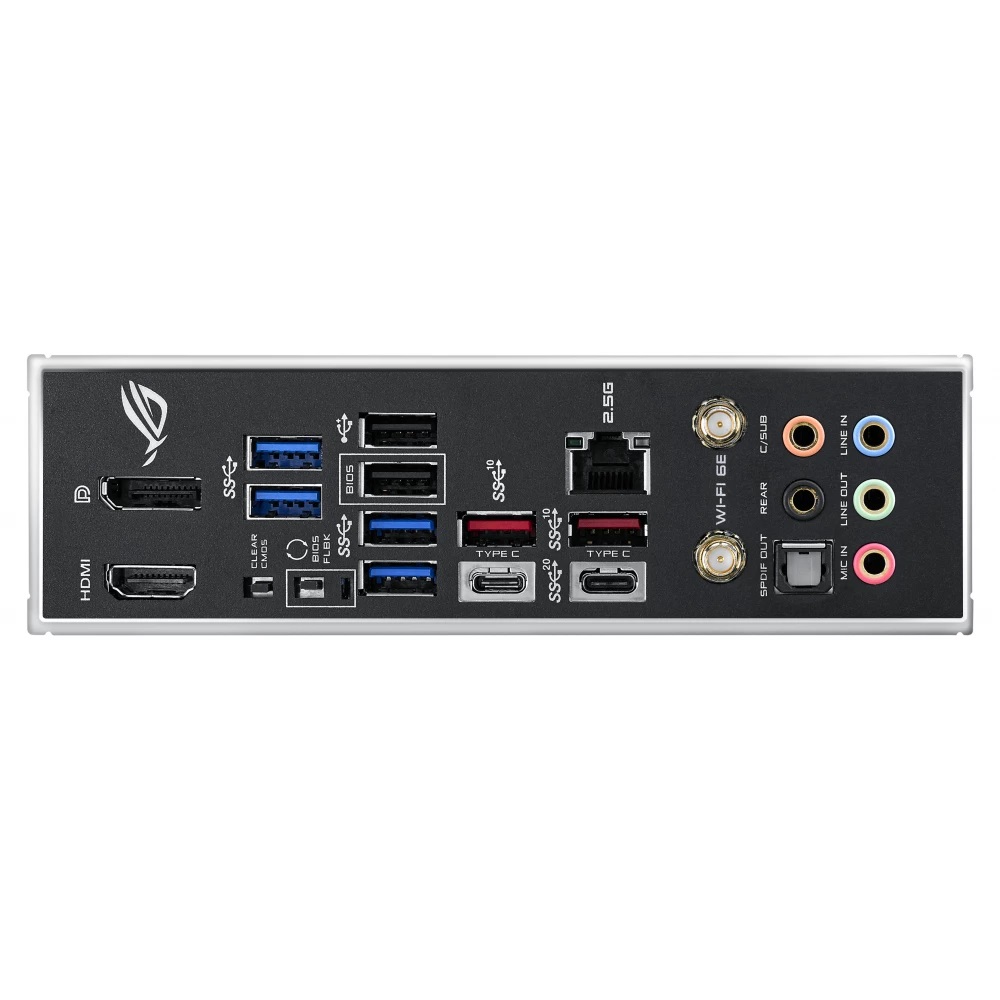

I / O ports on the back
Number of USB 2.0 ports: 2
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
USB 3.2 Gen 2 (3.1 Gen 2) Number of type A slots: 2
USB 3.2 Gen 2 (3.1 Gen 2) Number of type C slots: 2
Number of Ethernet LAN connections (RJ-45): 1
Number of HDMI connections: 1
HDMI version: 2.0
Number of DisplayPort connections: 1
DisplayPorts version: 1.4
Headphone outputs: 5
Microphone input: Yes
S / PDIF output: Yes
WiFi AP antenna socket: 1
USB connector: USB Type-A, USB Type-C

Network
WLAN: Yes
Built-in Ethernet connection: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Intel I225-V
Wake-on-LAN ready: Yes
Top WLAN standard: Wi-Fi 6 (802.11ax)
WLAN standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi -Fi 6E AX210
Bluetooth: Yes
Bluetooth version: 5.2

Features
Component for: PC
Motherboard Form Factor : ATX
Motherboard Chipset Family: Intel
Motherboard Chipset: Intel Z590
Audio Channels: 7.1 Channels
Audio Chip: Realtek ALC4080
Supports Windows Operating Systems: Windows 10 x64

Expansion slots
PCI-Express x16 (Gen 3.x) connections: 1
PCI Express x16 slots (Gen 4.x): 2
Number of M.2 (M) slots: 4

BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
Clear CMOS button: Yes

Weight and dimensions
Width: 305 mm.
Depth: 244 mm
