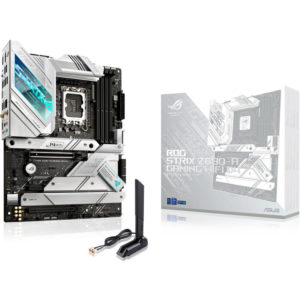

ASUS ROG STRIX Z690-A GAMING WIFI D4 LGA 1700 ATX Motherboard

ASUS
  • Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors
  • Optimal Power Solution: 16+1 DrMos with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot
  • High-performance Networking: On-board Intel® WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2×2 Type-C®
  • Intelligent Control:  ASUS-exclusive AI Overclocking and Two-Way AI Noise Cancelation to simplify setup and improve performance
  • DIY Friendly Design: PCIe®Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
  • Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
  • Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

 72,500

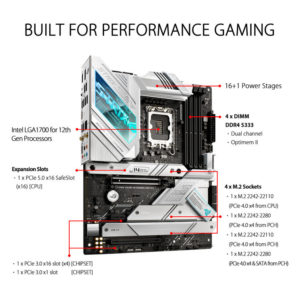

Robust Power Solution
Constructed from high-grade 5K Black Metallic capacitors, alloy chokes, 16+1 DrMOS power stages, ProCool II sockets, and Digi+ VRM, the ROG STRIX Z690-A GAMING WIFI D4 delivers optimal power performance suitable for your gaming needs.

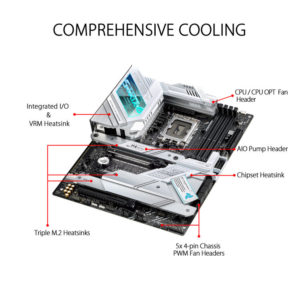

Comprehensive Cooling
Gaming for prolonged periods of time can cause heat to build up within your case, so ASUS designed the ROG STRIX Z690-A GAMING WIFI D4 to leverage multiple thermal solutions that efficiently dissipate heat. VRM heatsink, PCH fanless heatsink, double-sided M.2 heatsink, M.2 heatsink backplate, hybrid fan headers, and Fan Xpert 4 with HydraNode utility software all work together to ensure your components stay cool.

Networking
Whether you prefer wired or wireless networking, the ROG STRIX Z690-A GAMING WIFI D4 includes a 2.5 Gigabit Ethernet port and Wi-Fi 6E (802.11ax) wireless capabilities. LANGuard technology ensures you get the strongest wired signal possible with lower latency, essential for competitive online gaming.

USB Connectivity
Equipped with various ports and headers designed to provide power to external devices, you get USB 3.2 Gen 1 and Gen 2 ports, designed to provide support for resource-demanding peripherals with data transfer speeds up to 5 and 10 Gb/s, respectively. The USB 3.2 Gen 2×2 boasts up to 20 Gb/s data transfer speeds, allowing you to use advanced devices such as audio and video interfaces. An internal Thunderbolt 4 header enables you to equip your system with an optional Thunderbolt 4 card, unlocking 40 Gb/s transfer speeds, daisy chaining, and additional video-out support.

ASUS Q-Design
Embracing a unique design focused on making installation of components quicker, ASUS’ Q-Design with Q-DIMM allows you to install memory modules easily with locking mechanisms. Q-Latch makes installation and removal of M.2 storage drives quick and easy. PCIe Slot Q-Release and Q-Slot offer a larger release mechanism so you can remove your graphics and utility cards. Q-LED uses various LEDs that tell you which components are running properly upon startup, making troubleshooting easier in the event of a failure.

DIY Friendly
Whether you are a seasoned builder or brand new, the ROG STRIX Z690-A GAMING WIFI D4 provides you with several additions that make installation easier. Pre-mounted I/O shield makes placing the motherboard into the case easier and saves time compared to traditional separated I/O shields. SafeDIMM adds a metal divider on the RAM slots for safer installation of memory modules. SafeSlot fortifies your PCIe 5.0 slot with a metal reinforcement for stronger retention designed to support heavier graphics cards. BIOS Flashback button allows you to update the BIOS without building your entire system and the BIOS Flashback LED notifies you about the status of your system during the update process. Clear CMOS resets your motherboard settings to the default value.

ROG STRIX Aesthetics
Sporting a new ID design, your system will look as impressive as ever. Illuminate your finished product in an array of lighting and effects with integrated RGB and Gen 2 addressable headers, allowing you to use a wide range of RGB and ARGB strips. An illuminated acrylic display adds another sense of style to the ROG STRIX Z690-A GAMING WIFI D4. Aura Sync can unify your compatible devices like mice and keyboards to match your rig for a unique theme that fits your style.

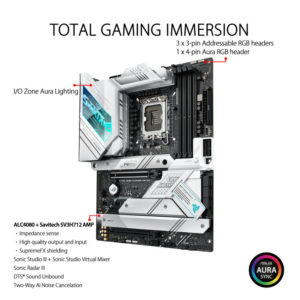

Audio
The ROG SupremeFX 7.1-channel surround sound ALC4080 codec and Savitech SV3H712 AMP deliver a high-quality audio experience worthy of your gaming immersion. You get high-quality 120 dB SNR stereo playback output and 113 dB SNR recording input, ideal for content creators and live streamers. DTS Sound Unbound and Sonic Studio III enable you to explore greater depth of sound with multiple EQ settings.

ASUS Exclusive Software
Included with your ROG STRIX Z690-A GAMING WIFI D4 is a suite of exclusive software designed to help you monitor, manage, and overclock your system. You get the ASUS Armoury Crate package with AURA Sync, AURA Creator, Fan Xpert 4, and Two-Way AI Noise Cancelation. AI Suite 3 includes performance and power saving utilities like TurboV EVO, EPU, GameFirst VI, and DIGI+ VRM. Additionally, you get ROG CPU-Z which detects and monitors your processor and connected devices. You also get limited access to MyASUS, WinRAR, and a limited free trial version of AIDA64 Extreme software.

UEFI BIOS
Manage your system and enable overclocking with UEFI BIOS. Advanced mode allows you to fine-tune your system with a wide range of settings and options while EZ Mode simplifies the experience. EZ Flash 3 allows you to upgrade your BIOS firmware to the latest iteration by using a USB drive to save and upload the file. The CrashFree BIOS 3 rescue function resets your system in the event of an update failure or corruption. You also gain access to an AI Overclocking Guide, FlexKey, and MemTest86, designed to help you achieve new heights with your system.

SKU: 4711081446477 Categories: ,

Product Specification

CPU
Chipset Intel Z690
CPU Socket LGA 1700

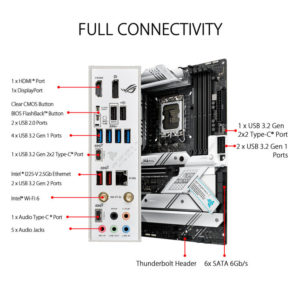

Back Panel I/O
USB 1 x USB 3.2 Gen 2×2 Type-C
2 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Thunderbolt None
Display 1 x DisplayPort
1 x HDMI
Audio 5 x 3.5 mm
Ethernet / Controller 1 x Intel 2.5Gigabit
Wi-Fi Antenna 2 x Connector
Buttons BIOS Flashback, Clear CMOS



Memory
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800, 5000, 5333 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC Unbuffered



Storage Expansion
SATA 6 x SATA III
M.2 2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
U.2 None
Optane Memory Support No
RAID Support RAID 0, 1, 5 (M.2)
RAID 0, 1, 5, 10 (SATA)



Internal I/O
Expansion Slots 1 x PCIe 5.0 x16
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1
USB 1 x USB 3.2 Gen 2×2 Header (Supports 1 USB Type-C Port)
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support None
Air Cooling 1 x 4-Pin CPU
1 x 4-Pin Assistant
5 x 4-Pin System
1 x Thermal Sensor
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
2 x 8-Pin ATX
Security Chassis Intrusion, TPM Header
LED Header 4 x RGB
Audio 1 x S/PDIF
Diagnostics Clear CMOS, Voltage Regulation
Add-On 1 x Thunderbolt Card Header



BIOS
ROM 256 Mb



Front Panel I/O
I/O Connection Headers AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.2 Gen 2×2



Audio
Audio Codec SupremeFX (7.1-Channel)



Wireless
Bluetooth 5.2
Wi-Fi Wi-Fi 6 (802.11ax)



Software
Supported Operating Systems Windows 11 (64-Bit)
Windows 10 (64-Bit)



Physical
Form Factor ATX
Dimensions 9.6 x 12″ / 24.4 x 30.5 cm
