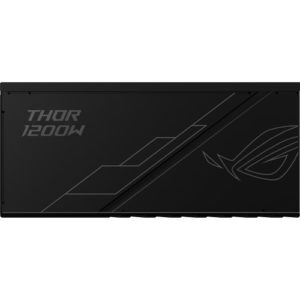

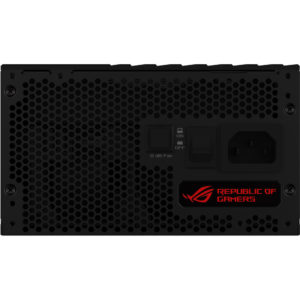

ASUS ROG Thor 1200W 80 Plus Platinum Modular Power Supply

ASUS
  • Aura Sync : Advanced customization with addressable RGB LEDs and Aura Sync compatibility
  • OLED Power Display : Real-time power draw monitoring with OLED Power Display
  • ROG Thermal Solution : 0dB cooling with dustproof IP5X Wing-blade Fan and ROG heatsink design
  • 80 PLUS Platinum : Built with 100% Japanese capacitors and other premium components
  • Sleeved Cables : For easy building and superior aesthetics

 70,000

SKU: ROG-THOR-1200P Categories: ,

Product Specification

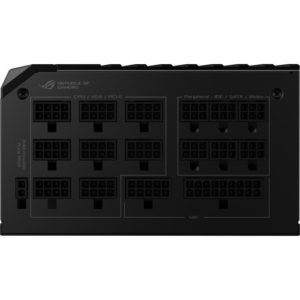

Total Connectors 1 x 20+4-Pin ATX Motherboard
2 x 4+4-Pin EPS CPU
8 x 6+2-Pin PCIe
12 x 15-Pin SATA
5 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy
Cable Design Modular, Sleeved
Total Wattage 1200 W
Max Load for +12 V 100 A
Max Load for +3.3 V 25 A
Max Load for +5 V 25 A
Max Load for +5 Vsb 3 A
Max Load for -12 V 0.3 A
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Efficiency Rating 80 PLUS Platinum
Efficiency 90 to 89% at 20 to 100% Load
Fan Size 135 mm
Form Factor ATX
Compliance ATX 12 V
Protection Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection
Certifications RoHS, as per Manufacturer
Dimensions 7.48 x 5.91 x 3.39″ / 19 x 15 x 8.6 cm
