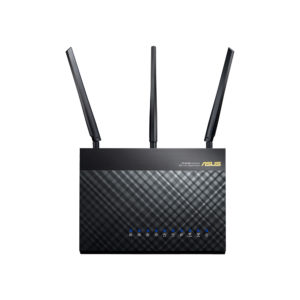

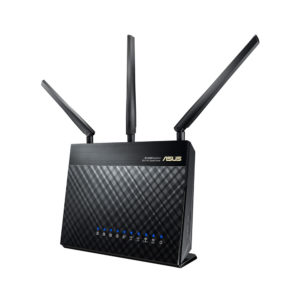

ASUS RT-AC68U V3 AC1900 Dual Band Gigabit WiFi Router

ASUS
  • Great Wi-Fi – Enjoy the combined dual-band speeds of up to 1900Mbps, 3X faster than 802.11n routers
  • Ultrawide Coverage – High-performance antennas and ASUS AiRadar eliminate dead spots
  • Commercial-grade Security – AiProtection, powered by Trend Micro™, blocks and neutralizes internet security threats for all your connected smart devices
  • AiMesh Supported – Connect your RT-AC68U to other compatible ASUS routers to create a powerful and flexible whole-home Wi-Fi network
  • Flexible Connectivity Options – 5X Gigabit Ethernet ports, 1X ultrafast USB 3.1 port and 1X USB 2.0 port
Availability:

Out of stock

 24,840

Out of stock

SKU: 4718017788359 Categories: ,

Product Specification

Model Name

  • RT-AC68U V3

Network Standard

  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • WiFi 4 (802.11n)
  • WiFi 5 (802.11ac)
  • IPv4
  • IPv6

Product Segment

  • AC1900 ultimate AC performance : 600+1300 Mbps

AX technology

  • No

Data Rate

  • 802.11a : up to 54 Mbps
  • 802.11b : up to 11 Mbps
  • 802.11g : up to 54 Mbps
  • WiFi 4 (802.11n) : up to 450 Mbps
  • WiFi 4 (802.11n) TurboQAM : up to 600 Mbps
  • WiFi 5 (802.11ac) : up to 1300 Mbps

Antenna

  • External antenna x 3

Transmit/Receive

  • MIMO technology
  • 2.4GHz 3×3
  • 5GHz 3×3

Memory

  • 128 MB Flash, 256 MB RAM

Operating Frequency

  • 2.4G Hz / 5 GHz

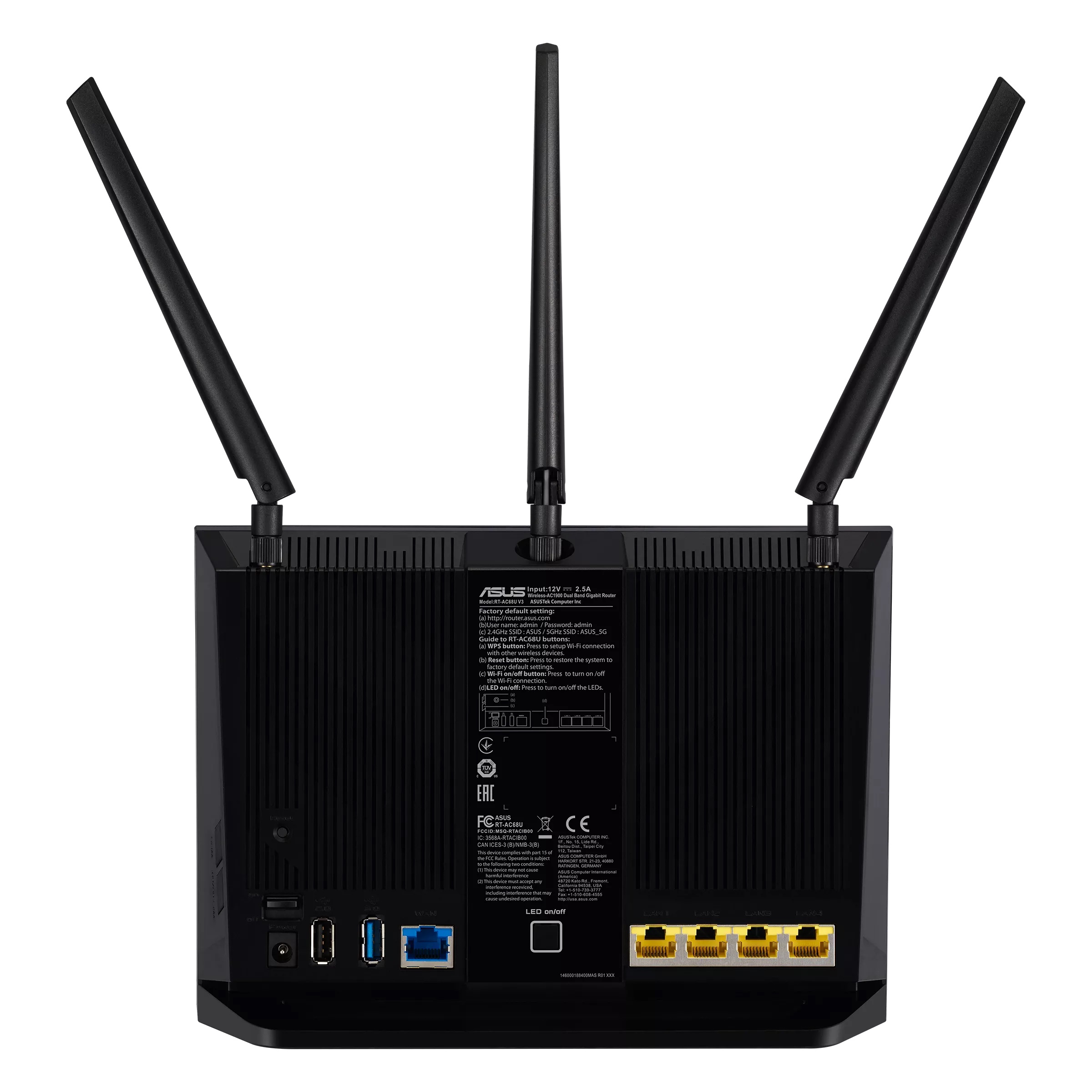

Ports

  • RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4, RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1
  • USB 2.0 x 1
  • USB 3.0 x 1

Button

  • WPS Button, Reset Button, Power Button, WiFi on/off Button

LED Indicator

  • Power x 1
  • WiFi x 2
  • LAN x 4

Power Supply

  • AC Input : 110V~240V(50~60Hz)
  • DC Output : 12 V with max. 2.5 A current

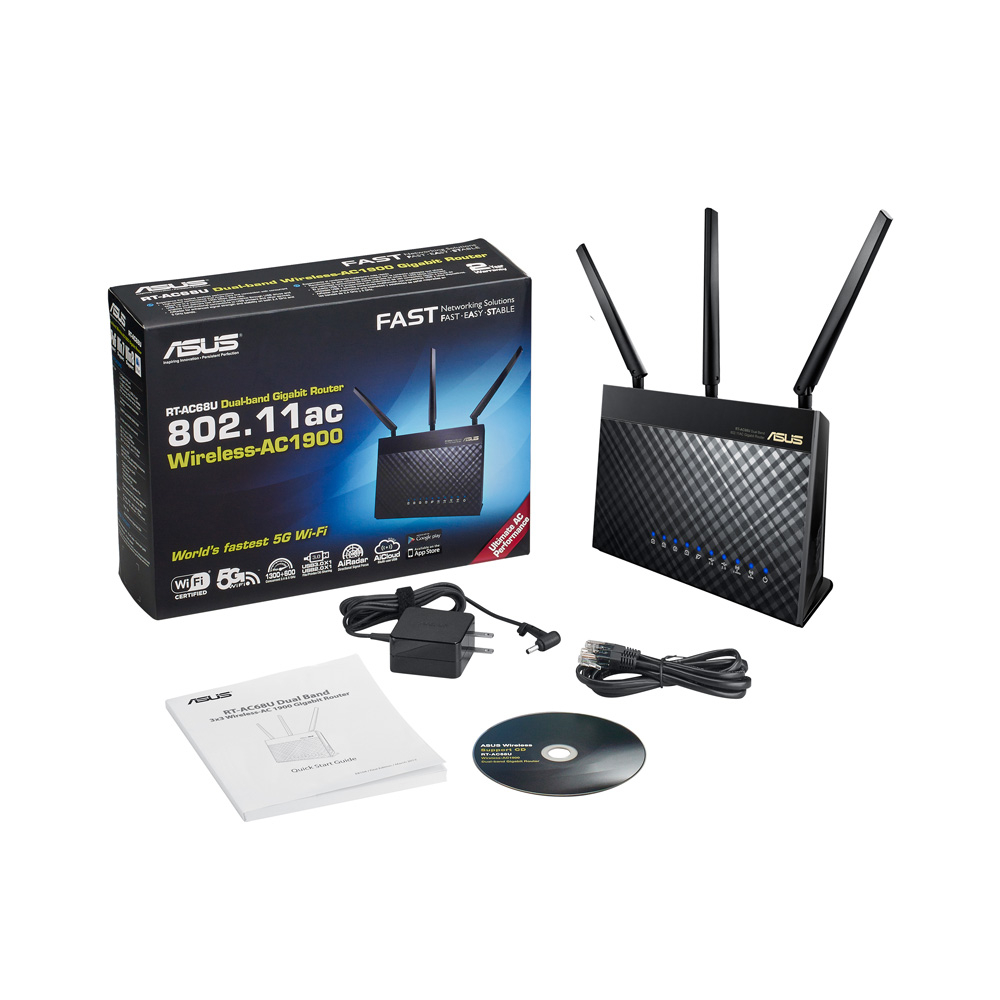

Package content

  • 1 x RT-AC68U Wireless-AC1900 Dual Band Gigabit Router
  • 1 x RJ-45 cable
  • 1 x Power adapter
  • 1 x QSG
  • 1 x Warranty card

Remark

  • RT-AC68U V3 do not support Facebook WiFi function

Product Weight (g)

  • 835 g
  • 640g

AiMesh

  • AiMesh : Yes
  • Primary AiMesh router : Yes
  • AiMesh node : Yes

Router APP

  • ASUS Router APP : Yes

Game

  • Game Boost/acceleration : No
  • WTFast : No

Alexa

  • Support Alexa skil : No

IFTTT

  • Support IFTTT : No

AiProtection

  • AiProtection : AiProtection Pro
  • Router Security Assessment : Yes
  • Router Security Assessment : No
  • Malicious site blocking : Yes
  • Two-Way IPS : Yes
  • Infected Device Prevention and Blocking ; Yes

Parental Control

  • Parental Control : Yes
  • Parental Control Customized Internet schedule : Yes
  • Maximum Parental Control profile : 16
  • Maximum Parental Control content filter rule : 16

Traffic Control

  • Adaptive QoS : Yes
  • Bandwidth Monitor : Yes
  • Bandwidth limiter : Yes
  • Maximum Bandwidth limiter rule : 32
  • Traditional QoS : Yes
  • Maximum Traditional QoS rule : 32
  • Traffic Monitor : Yes
  • Real-time traffic monitor : Yes
  • Wired Traffic Monitor : Yes
  • Wireless Traffic Monitor : Yes
  • Traffic Analyzer : Yes
  • Traffic analysis period : Daily, Weekly, Monthly
  • Website history : Yes

Wireless

  • IPv6 : Yes
  • MU-MIMO : No
  • Wi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise
  • UTF-8 SSID : Yes
  • Guest Network : Yes
  • Maximum Guest Network rule : 6
  • Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
  • Guest Network Encryption : Open system, WPA/WPA2-Personal
  • WPS : Yes
  • Wi-Fi MAC address filter : Yes
  • Maximum MAC filters : 64
  • Wireless scheduler : Yes
  • Airtime fairness : Yes
  • RADIUS Server : Yes
  • Universal beamforming : Yes
  • Explicit beamforming : Yes
  • IGMP snooping : Yes

WAN

  • Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
  • Dual WAN : Yes
  • WAN Aggregation : No
  • 3G/4G LTE dongle : Yes
  • Android tethering : Yes
  • Port forwarding : Yes
  • Maximum port forwarding rule : 64
  • Port triggering : Yes
  • Maximum port triggering rule : 32
  • DMZ : Yes
  • DDNS : Yes
  • NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
  • Let’s Encrypt : Yes

LAN

  • DHCP Server : Yes
  • IPTV : Yes
  • LAN Link Aggregation : No
  • Manually assign IP address : Yes
  • Maximum manually assign IP address rule : 64

VPN

  • VPN Client L2PT : Yes
  • VPN Client OVPN : Yes
  • VPN Client PPTP : Yes
  • VPN Server IPSec : No
  • VPN Server OVPN : Yes
  • VPN Server PPTP : Yes
  • VPN Fusion : No

USB application

  • File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
  • 3G/4G LTE dongle : Yes
  • HDD hibernation : Yes
  • Safely Remove disk : Yes
  • AiCloud : Yes
  • Download master : Yes
  • AiDisk : Yes
  • Media Server : Yes
  • Time Machine : Yes
  • Samba Server : Yes
  • FTP Server : Yes
  • Shared Folder privileges : Yes

Administration

  • Operating mode : Accesspoint, AiMeshnode, Mediabridge, Repeater, Router
  • Operating system : ASUSWRT
  • Free OS upgrade : Yes
  • Firewall : Yes
  • Maximum Firewall keyword filter : 64
  • Maximum Firewall network service filter : 32
  • Maximum Firewall URL filter : 64
  • Wake on LAN (WOL) : Yes
  • SSH : Yes
  • Configuration backup and restore : Yes
  • Diagnosis tools : Yes
  • Feedback system : Yes
  • System log : Yes
