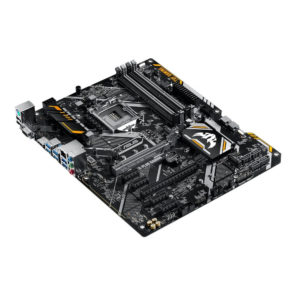

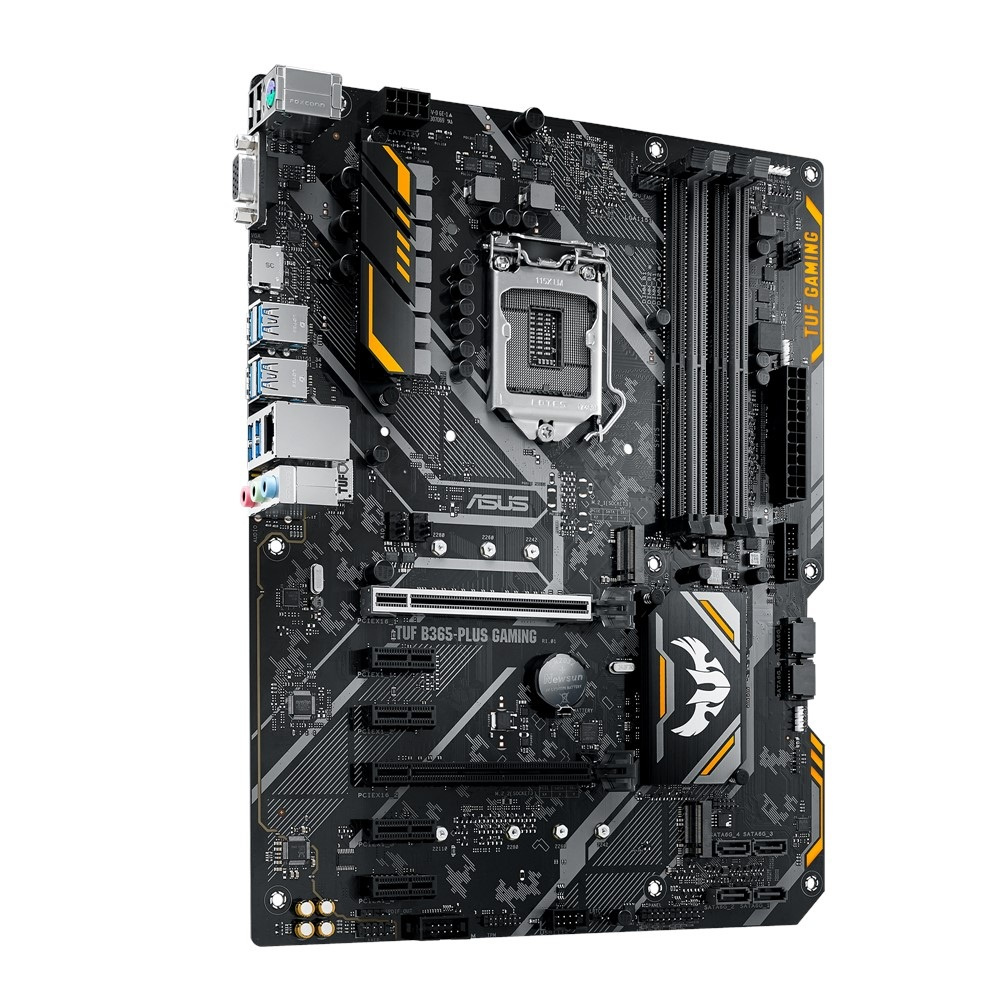

ASUS TUF B365-PLUS LGA1151 ATX Gaming Motherboard

ASUS
  • Enhanced Power Solution: 6+2 power stages, alloy-core choke, military-grade TUF components, and Digi+ VRM for maximum durability
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB header
  • GPU Temperature Sensing & Fan Xpert 2+: Ensures every fan achieves the best balance of cooling performance and acoustics
  • TUF Protection: SafeSlot Core+, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
  • Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
  • TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case
Availability:

Out of stock

 22,800

Out of stock

Intel B365 ATX gaming motherboard with 6+2 power stages design, Aura Sync, Aura ARGB header, DDR4 2666MHz support, 32Gbps M.2, and Intel Optane memory ready.

SKU: 4718017424073 Categories: ,

Product Information

  • CPU
    Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® B365
  • Memory
    Intel® B365 Chipset
    4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory frequency supported varies by processor
    ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/D-Sub ports
    – Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
    – Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 1024 MB (for iGPU exclusively)
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  • Multi-GPU Support
    Supports AMD CrossFireX™ Technology
  • Expansion Slots
    1 x PCIe 3.0 x16 (x16 mode)
    1 x PCIe 3.0 x16 (max at x4 mode)
    4 x PCIe 3.0/2.0 x1
  • Storage
    Intel® B365 Chipset :
    1 x M.2_1 socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
    1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s port(s), gray
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology supports
    Intel® Optane™ Memory Ready
  • LAN
    Intel® I219V, 1 x Gigabit LAN
    TUF LANGuard
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC
    – Supports : Jack-detection, Front Panel Jack-retasking
    Audio Feature :
    – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
  • USB Ports
    Intel® B365 Chipset :
    8 x USB 3.1 Gen 1 port(s) (6 at back panel, blue, 2 at mid-board)
    Intel® B365 Chipset :
    4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board)
