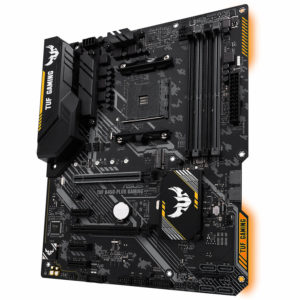

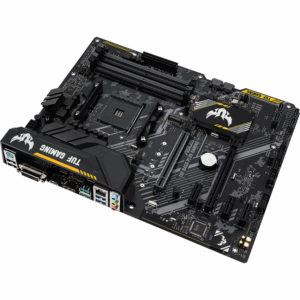

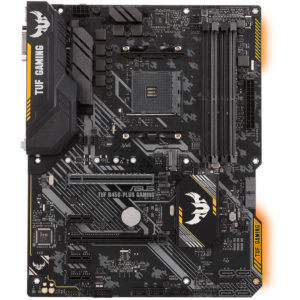

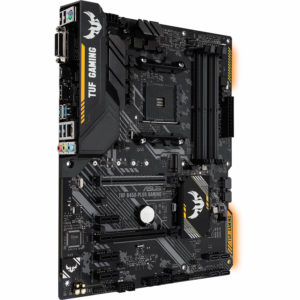

ASUS TUF B450-Plus Gaming AM4 ATX Motherboard
- 2nd generation AMD Ryzen AM4 processors maximize connectivity and speed with NVMe M.2, USB 3.1 Gen2 and gigabit LAN
- Military-grade TUF components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize durability
- TUF Protection with Safe Slot and Overvoltage protection ensures component stability and dependability
- Unmatched personalization with ASUS exclusive Aura Sync RGB lighting and additional RGB header
- 3-Year Warranty for guaranteed reliability built on military-grade engineering
On the way
Expected availability: Sept 10, 2018
Availability:
Out of stock
₨ 18,360
Out of stock
ASUS TUF B450-Plus Gaming AM4 ATX Motherboard
CPU | AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors |
Supports CPU up to 8 cores | |
* Refer to www.asus.com for CPU support list | |
Chipset | AMD B450 |
Memory | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors |
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory | |
Dual Channel Memory Architecture | |
ECC Memory (ECC mode) support varies by CPU. | |
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
Graphic | Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors |
Multi-VGA output support : HDMI/DVI-D ports | |
– Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz | |
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz | |
Multi-GPU Support | |
Supports AMD CrossFireX™ Technology | |
Expansion Slots | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors |
1 x PCIe 3.0/2.0 x16 (x16 mode) | |
AMD Ryzen™ with Radeon™ Vega Graphics Processor | |
1 x PCIe 3.0/2.0 x16 (x8 mode) | |
AMD Athlon™ with Radeon™ Vega Graphics Processors | |
1 x PCIe 3.0/2.0 x16 (x4 mode) | |
AMD B450 chipset | |
1 x PCIe 2.0 x16 (max at x4 mode) | |
3 x PCIe 2.0 x1 | |
Storage | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : |
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 | |
AMD Athlon™ with Radeon™ Vega Graphics Processors : | |
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1 | |
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : | |
2 x SATA 6Gb/s port(s) | |
Support Raid 0, 1, 10 | |
AMD B450 chipset : | |
4 x SATA 6Gb/s port(s) | |
Support Raid 0, 1, 10 | |
LAN | Realtek® RTL8111H |
TUF LANGuard | |
Audio | Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2 |
Audio Feature : | |
– Exclusive DTS Custom for GAMING Headsets. | |
– Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference | |
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals | |
– Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity | |
– Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. | |
USB Ports | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : |
2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A) | |
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : | |
1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM) | |
AMD B450 chipset : | |
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A) | |
AMD B450 chipset : | |
2 x USB 3.1 Gen 1 port(s) (2 at mid-board) | |
AMD B450 chipset : | |
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) | |
Special Features | ASUS TUF PROTECTION |
– ASUS SafeSlot: Protect your graphics card Investment | |
– ASUS ESD Guard: Enhanced ESD protection | |
– ASUS Overvoltage Protection: World-class circuit-protecting power design | |
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! | |
– ASUS DIGI+ VRM: 6 Phase digital power design | |
AURA : | |
– Aura Lighting Control | |
– Aura RGB Strip Headers | |
ASUS Exclusive Features : | |
– AI Suite 3 | |
– Ai Charger | |
– PC Cleaner | |
– File Transfer | |
ASUS Quiet Thermal Solution : | |
– Stylish Fanless Design Heat-sink solution & MOS Heatsink | |
– ASUS Fan Xpert 4 Core | |
ASUS EZ DIY : | |
– ASUS CrashFree BIOS 3 | |
– ASUS EZ Flash 3 | |
– ASUS UEFI BIOS EZ Mode | |
ASUS Q-Design : | |
– ASUS Q-Shield | |
– ASUS Q-Slot | |
– ASUS Q-DIMM | |
Overclocking Protection : | |
– ASUS C.P.R.(CPU Parameter Recall) | |

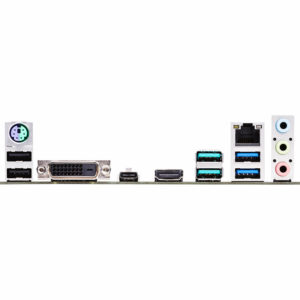

Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) |
1 x DVI-D | |
1 x HDMI | |
1 x LAN (RJ45) port(s) | |
1 x 5Gb/s port(s) USB Type-CTM | |
2 x USB 3.1 Gen 2 (teal blue)Type-A, | |
2 x USB 3.1 Gen 1 (blue) Type-A, | |
2 x USB 2.0 | |
3 x Audio jack(s) | |
Internal I/O Ports | 1 x Aura RGB Strip Header |
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) | |
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) | |
6 x SATA 6Gb/s connector(s) | |
1 x CPU Fan connector(s) (1 x 4 -pin) | |
3 x Chassis Fan connector(s) (3 x 4 -pin) | |
1 x AIO_PUMP connector (1 x 4 -pin) | |
1 x S/PDIF out header(s) | |
1 x 24-pin EATX Power connector(s) | |
1 x 8-pin ATX 12V Power connector(s) | |
1 x Front panel audio connector(s) (AAFP) | |
1 x System panel(s) | |
1 x Clear CMOS jumper(s) | |
1 x COM port header | |
Accessories | User’s manual |
ASUS Q-Shield | |
2 x SATA 6Gb/s cable(s) | |
1 x M.2 Screw Package | |
1 x Supporting DVD | |
1 x TUF GAMING Sticker | |
1 x TUF Certification card(s) | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
Manageability | WOL by PME, PXE |
Operating System | Windows® 10 64-bit |
Windows® 7 64-bit *3 | |
Form Factor | |
ATX Form Factor | |
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
Note | *1 The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed. |
*2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output. | |
*3 Windows 7 64-bit is only supported when using AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors. |
