ASUS TUF Gaming B450M-PLUS II AMD AM4 Micro ATX Motherboard

ASUS
  • AMD AM4 Socket: Compatible to Ryzen 5000, 3rd/2nd/1st Gen AMD Ryzen CPUs
  • Robust Power Design:DrMOS power stages with high-quality alloy chokes and durable capacitors to provide reliable power for the last AMD high-count-core CPUs

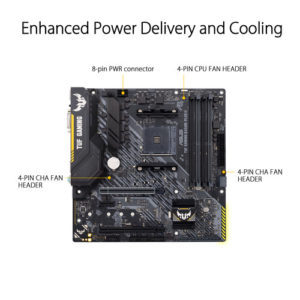

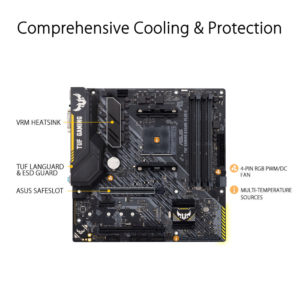

  • Optimized Thermal Solution: Extended VRM and PCH heatsink, multiple hybrid fan headers and fan speed management with Fan Xpert 2 utility

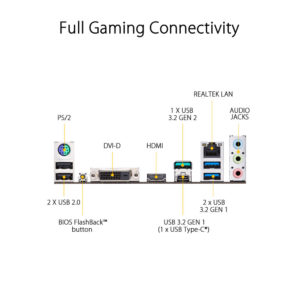

  • Gaming Connectivity: Supports HDMI 2.0b (4K@60HZ) and DisplayPort 1.2 output, featuring dual M.2 slots (NVMe SSD), front panel USB 3.2 Gen 1 Type-A connector, USB 3.2 Gen 2 Type-A port
  • Industry-leading Gaming Audio & AI Noise Canceling Microphone Technology: codec with DTS Sound Unbound draws you deeper into the action. Communicate clearly with ASUS AI Noise Cancelling Mic technology.

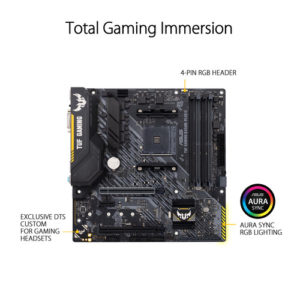

  • Gaming Look and Feel: 1x RGB header onboard with ASUS exclusive Armoury Crate utility
  • DIY Friendly: With BIOS Flashback and ASUS exclusive UEFI BIOS, 256Mb BIOS Flash ROM
  • Please ensure your BIOS is up to date if installing a compatible Ryzen 5000 series CPU. Visit ASUS site search by motherboard model name, click on “Support” tab, Drivers and Tools, then BIOS & Firmware to download the latest BIOS.

 20,500

SKU: TUF GAMING B450M-PLUS II Categories: ,

Product Specification

Chipset AMD B450
CPU Socket AM4
USB 1 x USB 3.1 / USB 3.2 Gen 2 Type-A
2 x USB 3.1 / USB 3.2 Gen 1 Type-A
1 x USB 3.1 / USB 3.2 Gen 1 Type-C
2 x USB 2.0 Type-A
Thunderbolt None
Display 1 x HDMI
1 x DVI-D
Audio 3 x 3.5 mm
Ethernet / Controller 1 x Realtek RTL8111H Gigabit
PS/2 1 x Combo
Buttons BIOS Flashback
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 3000, 3200, 3400, 3466, 3533, 3600, 3733, 3866, 4000, 4400 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC, ECC Unbuffered
SATA 6 x SATA III
M.2 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA (Unspecified))
U.2 None
RAID Support RAID 0, 1, 10 (SATA)
Expansion Slots 1 x PCIe 3.0 x16
1 x PCIe 2.0 x16 (x4 mode)
1 x PCIe 2.0 x1
USB 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support 2-Way AMD CrossFireX
Air Cooling 1 x 4-Pin CPU
2 x 4-Pin System
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
Security TPM Module
LED Header 1 x RGB
Audio 1 x Speaker
1 x S/PDIF
Diagnostics Clear CMOS
Legacy 1 x Serial
ROM 256 Mb
I/O Connection Headers AAFP, USB 3.1 / USB 3.2 Gen 1
Audio Codec Realtek ALC887 (7.1-Channel)
Supported Operating Systems Windows 7 (64-Bit)
Windows 10 (64-Bit)
Form Factor Micro-ATX
Dimensions 9.6 x 9.6″ / 24.4 x 24.4 cm
