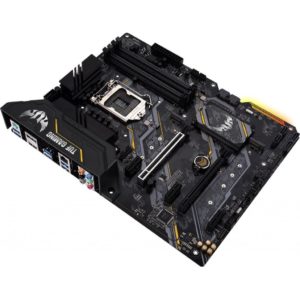

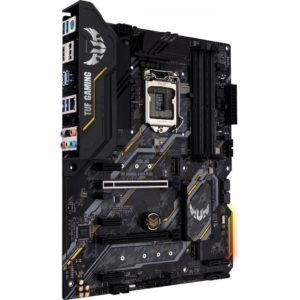

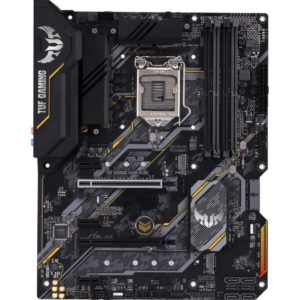

ASUS TUF GAMING B460-PLUS (LGA 1200) ATX Gaming Motherboard

ASUS
  • Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
  • Enhanced power solution: 6+1+1 power stages, military-grade TUF components, and Digi+ VRM for maximum durability
  • Comprehensive cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
  • Made for online gaming: Intel® Ethernet Connection I219-V, TUF LANGuard and TurboLAN technology
  • Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
  • Aura Sync RGB Lighting: Synchronizable LED effects across a vast portfolio of compatible PC gear.
Availability:

Out of stock

 22,000

Out of stock

SKU: 4718017719735 Categories: ,
  • CPU
    Intel® Socket 1200 for 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors *
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list
    **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset
    Intel® B460
  • Memory
    4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem
    * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor
    1 x DisplayPort 1.4 **
    1 x HDMI 1.4b
    *Graphics specifications may vary between CPU types.
    **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
  • Multi-GPU Support
    Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots
    Intel® 10th Gen Processors
    1 x PCIe 3.0 x16 (x16 mode)
    Intel® B460 Chipset
    1 x PCIe 3.0 x16 (x4 mode)
    3 x PCIe 3.0 x1
  • Storage
    Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
    Intel® B460 Chipset :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology supports
    Intel® Optane™ Memory Ready *2
  • LAN
    Intel® I219-V 1Gb Ethernet
  • Audio
    Realtek ALC S1200A 8-Channel High Definition Audio CODEC
    – Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature :
    – Exclusive DTS Custom for GAMING Headsets.
    – Audio Shielding
    – Dedicated audio PCB layers
    – Premium Japanese audio capacitors
  • USB Ports

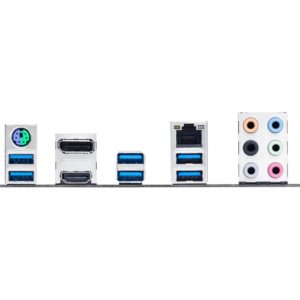

    Rear USB Port ( Total 6 )
    6 x USB 3.2 Gen 1 port(s)(6 x Type-A)
    Front USB Port ( Total 6 )
    2 x USB 3.2 Gen 1 port(s)
    4 x USB 2.0 port(s)
