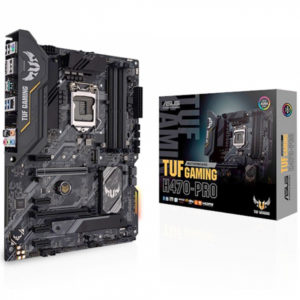

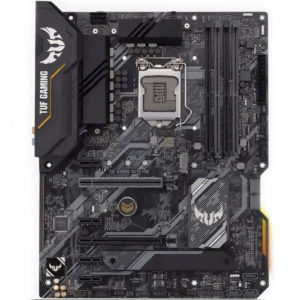

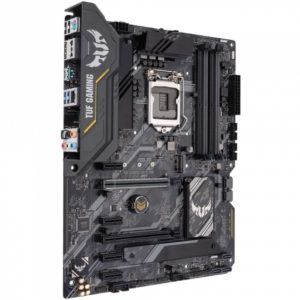

ASUS TUF GAMING H470-PRO (LGA 1200) ATX MOTHERBOARD

ASUS
  • Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
  • Enhanced power solution: 10 power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
  • Comprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and FAN Xpert 4 utility
  • Next-gen connectivity: USB 3.2 Gen 2 Type-C and Thunderbolt 3™ support
  • Made for online gaming: Intel® Ethernet Connection I219-V, TUF LANGuard and TurboLAN technology
  • Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
  • Aura Sync RGB: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips
Availability:

Out of stock

 26,000

Out of stock

SKU: 4718017720304 Categories: ,
  • CPU
    Build in Intel® Socket 1200 for 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list
    **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset
    Build in Intel® H470
  • Memory
    4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem
    * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor
    1 x DisplayPort 1.4 **
    1 x HDMI 1.4b
    *Graphics specifications may vary between CPU types.
    **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
  • Multi-GPU Support
    Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots
    Intel® 10th Gen Processors
    1 x PCIe 3.0 x16 (x16 mode)
    Intel® H470 Chipset
    1 x PCIe 3.0 x16 (x4 mode)
    4 x PCIe x1
  • Storage
    Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
    Intel® H470 Chipset :
    1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
    1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    5 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology supports
    Intel® Optane™ Memory Ready
  • LAN
    Intel® I219-V 1Gb Ethernet
    TUF LANGuard
  • Audio
    Realtek® ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
    – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature :
    – Optical S/PDIF out port(s) at back panel
    – Audio cover
    – Audio Shielding
    – Dedicated audio PCB layers
    – Premium Japanese audio capacitors
    * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

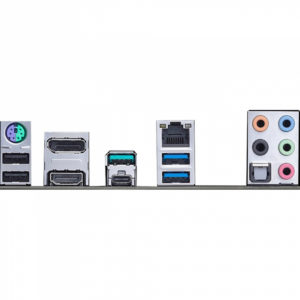

  • USB Ports
    Rear USB Port ( Total 6 )
    2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    2 x USB 2.0 port(s)
    Front USB Port ( Total 7 )
    2 x USB 3.2 Gen 1 port(s)(4 x Type-A)
    1 x USB 2.0 port(s)(2 x Type-A)
    1 x USB 2.0 port(s)(1 x Type-A)
