ASUS TUF Gaming X570-Pro WiFi II AM4 ATX Gaming Motherboard

ASUS
  • AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 G-Series and 2000 Series desktop processors

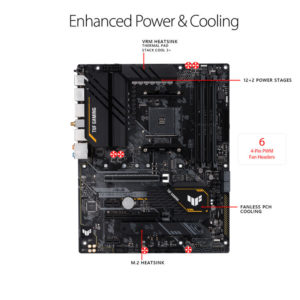

  • Enhanced power solution: 12+2 DrMOS power stages, six-layer PCB, ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
  • Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
  • Next-gen connectivity: PCIe® 4.0, USB 3.2 Gen 2 Type-A and Type-C®, front-panel header for USB 3.2 Gen 1 Type-C
  • Made for online gaming: WiFi 6E, Intel® 2.5 Gb Ethernet, TUF LANGuard technology
  • Two-Way AI Noise Cancelation: Reduces background noise from the microphone and incoming audio for crystal-clear communication in games or video conferences

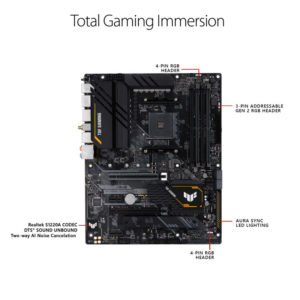

  • Aura Sync RGB: Enables synchronized LED lighting across a vast portfolio of compatible PC gear, including addressable RGB strips
Ad

₨ 90,720

Add to Wishlist
Compare

SKU: 4711081461272 Categories: ,

Product Specification

CPU
Chipset AMD X570
CPU Socket AM4



Back Panel I/O
USB 2 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
Thunderbolt None
Display 1 x HDMI 1.4bOutput
1 x DisplayPort 1.2Output
Audio 5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller 1 x Intel 2.5Gigabit
PS/2 1 x Combo
Legacy 1 x Serial
Wi-Fi Antenna 2 x Connector
Buttons BIOS Flashback



Memory
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4800, 5000, 5100 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support ECC Unbuffered

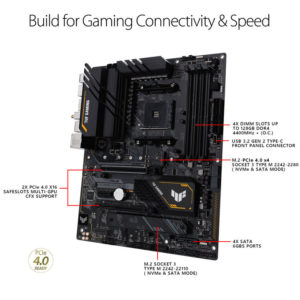

Storage Expansion
SATA 8 x SATA III
M.2 2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))
Optane Memory Support No
RAID Support RAID 0, 1, 10



Internal I/O
Expansion Slots 1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (x4 mode)
2 x PCIe 4.0 x1
USB 1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Air Cooling 2 x 4-Pin CPU
3 x 4-Pin System
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
1 x 4-Pin ATX
Security TPM Header
LED Header 2 x RGB
Audio None
Diagnostics Clear CMOS, Flash BIOS
Legacy 1 x Serial



BIOS
ROM 256 Mb



Front Panel I/O
I/O Connection Headers AAFP



Audio
Audio Codec Realtek (7.1-Channel)



Wireless
Bluetooth 5.2
Wi-Fi Wi-Fi 6E (802.11ax) (MU-MIMO)



Software
Supported Operating Systems Windows 10 (64-Bit)
Windows 11 (64-Bit)
