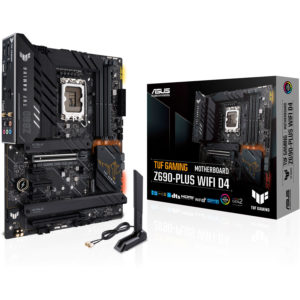

ASUS TUF GAMING Z690-PLUS WIFI D4 LGA1700 ATX Motherboard
- Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™ processors

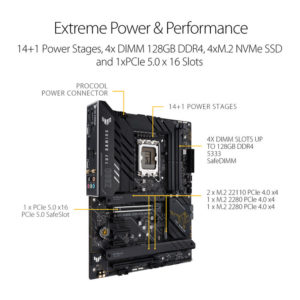

- Enhanced power solution: 14+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery

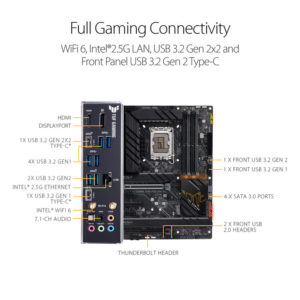

- Next-gen connectivity: PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, front USB 3.2 Gen 2 Type-C, Thunderbolt™ 4 header support
- Made for online gaming: WiFi 6, Intel 2.5 Gb Ethernet and TUF LANGuard
- Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

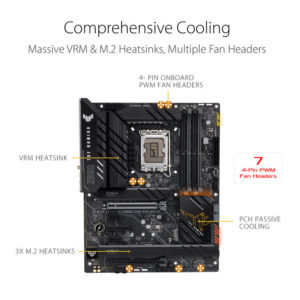

- Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate

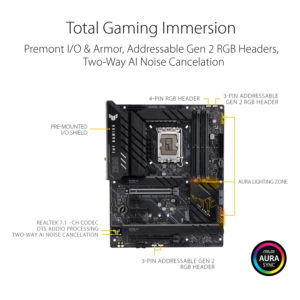

- Outshine RGB Aura Effect: Stylish edge and PCH lighting design, addressable RGB headers and RGB strip header support
Availability:
Out of stock
₨ 82,080
Out of stock
Product Specification
CPU
Chipset | Intel Z690 |
CPU Socket | LGA 1700 |
Back Panel I/O
USB | 1 x USB 3.2 Gen 2×2 Type-C 2 x USB 3.1 / USB 3.2 Gen 2 Type-A 1 x USB 3.1 / USB 3.2 Gen 1 Type-C 4 x USB 3.1 / USB 3.2 Gen 1 Type-A |
Display | 1 x DisplayPort 1 x HDMI |
Audio | 5 x 3.5 mm 1 x S/PDIF |
Ethernet / Controller | 1 x Intel 2.5Gigabit |
Wi-Fi Antenna | 2 x Connector |
Memory
Memory Slots | 4 x 288-Pin |
Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4800, 5000, 5133, 5333 MHz |
Maximum Capacity | 128 GB |
Channel Architecture | Dual Channel |
ECC Support | Non-ECC Unbuffered |
Storage Expansion
SATA | 4 x SATA III |
M.2 | 2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified)) |
U.2 | None |
Optane Memory Support | Yes |
RAID Support | RAID 0, 1, 5 (M.2) RAID 0, 1, 5, 10 (SATA) |
Internal I/O
Expansion Slots | 1 x PCIe 5.0 x16 1 x PCIe 3.0 x16 1 x PCIe 3.0 x4 1 x PCIe 4.0 x1 |
USB | 1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port) 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) 2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
Multi-GPU Support | None |
Air Cooling | 1 x 4-Pin CPU 1 x 4-Pin Assistant 4 x 3-Pin Chassis |
Liquid Cooling | 1 x 4-Pin Pump |
Power Connectors | 1 x 24-Pin Mainboard 1 x 8-Pin ATX 1 x 4-Pin ATX |
Security | Chassis Intrusion |
LED Header | 4 x RGB |
Audio | None |
Diagnostics | Clear CMOS |
Add-On | 1 x Thunderbolt Card Header |
Legacy | 1 x Serial |
BIOS
ROM | 192 Mb |
Front Panel I/O
I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2 |
Audio
Audio Codec | Realtek (7.1-Channel) |
Wireless
Bluetooth | 5.2 |
Wi-Fi | Wi-Fi 6 (802.11ax) |
Software
Supported Operating Systems | Windows 11 (64-Bit) Windows 10 (64-Bit) |
