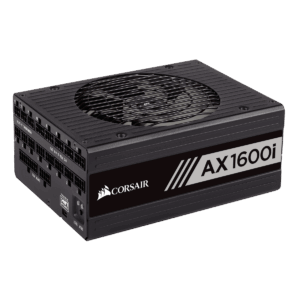

Corsair AX1600i Digital ATX Power Supply — 1600 Watt Fully-Modular PSU (UK)

Corsair
  • 1600W of Ultimate Power: Delivers 1600W of continuous, ultra-stable, 80 PLUS Titanium efficiency power
  • Top Tier Components: 100% 105°C Japanese capacitors, top-specification internal components and digital design deliver over 94% efficiency.
  • The Only Consumer PSU with Gallium Nitride Transistors: Totem-pole PFC Gallium Nitride (GaN) transistors for superior efficiency in a smaller form-factor.
  • World Class Electrical Performance: Incredibly stable voltages and ultra-low ripple noise. Ability to toggle singlemultiple 12V rails
  • Software Monitoring: CORSAIR LINK software provides in-depth monitoring for PSU temperature, fan speed, voltages, current, AC/DC wattage and efficiency

 115,020

Corsair AX1600i Digital ATX

The CORSAIR AX1600i is the ultimate digital ATX power supply,

built using only the best components and state-of-the-art gallium nitride transistors to deliver more than 94% efficiency.

Corsair AX1600i Digital ATX Power Supply
Corsair AX1600i Digital ATX Power Supply
SKU: 843591050357 Categories: ,
Brand CORSAIR
Model CP-9020087-NA
Series AX1600i
Type ATX
Maximum Power 1600W
Fans 1 x 140mm Patented FDB cooling fan
Main Connector 20+4Pin
+12V Rails Single
PCI-Express Connector 10 x 6+2-Pin
SATA Power Connector 16
Modular Full Modular
Energy-Efficient 80 PLUS TITANIUM Certified
Over Voltage Protection Yes
Input Voltage 100 – 240 V
Input Frequency Range 50/60 Hz
Input Current 15 – 9 A
Output +5V@30A, +3.3V@30A, +12V@133.3A, -12V@0.8A, +5VSB@3.5A
Dimensions 3.39″ x 5.91″ x 7.87″
Max PSU Length 200 mm
Weight 12.80 lbs.

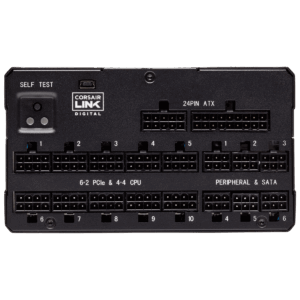

Connectors 1 x ATX (24PIN) (20+4)
2 x EPS/ATX12V (8-PIN) (4+4)
10 x PCI-E (8PIN) (6+2)
4 x SATA (2 SATA)
12 x SATA (4 SATA)
9 x Peripheral (4-PIN)
2 x Floppy Adapter (4PIN)
1 x USB (9PIN)
Features 1600W of Ultimate Power: Delivers 1600W of continuous, ultra-stable, 80 PLUS Titanium efficiency power.

Top Tier Components: 100% 105°C Japanese capacitors, top-specification internal components and digital design deliver over 94% efficiency.

The Only Consumer PSU with Gallium Nitride Transistors: Totem-pole PFC Gallium Nitride (GaN) transistors for superior efficiency in a smaller formfactor.

World Class Electrical Performance: Incredibly stable voltages and ultra-low ripple noise.

Software Monitoring: CORSAIR LINK software provides in-depth monitoring for PSU temperature, fan speed, voltages, current, AC/DC wattage and efficiency, with the ability to log everything for easy troubleshooting.

Take Control: CORSAIR LINK lets you adjust cooling fan speed, RPM curves and switch between single or multi-rail overcurrent protection (OCP), all from your desktop.

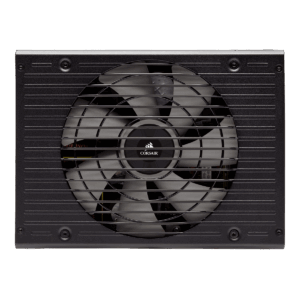

140mm Patented FDB cooling fan: Delivers low-noise operation even at demanding loads.

Zero RPM Fan Mode: For near-silent operation at low to medium loads.

Choose Your Color: Three-color customizable magnetic side labels let you choose your PSU’s style to match your build.

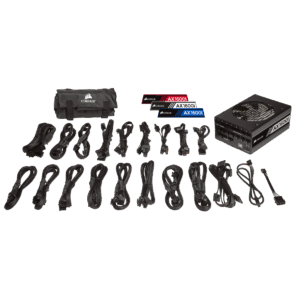

Fully Modular Cables: Use only the cables you need for quick and easy installation

Built to Last: Ten-Year comprehensive CORSAIR warranty.
