Corsair RME Series RM1000E 80 Plus Gold Fully Modular PSU Power Supply – CP-9020264-UK
CORSAIR RMe Series Fully Modular Low-Noise Power Supplies with ATX 3.0 and PCIe 5.0 compliance provide quiet, reliable power with 80 PLUS Gold efficiency to a wide variety of PC builds.
Out of stock
₨ 74,520
Out of stock
RMe SERIES™
RM1000e POWER SUPPLY
FULLY MODULAR LOW-NOISE ATX POWER SUPPLIES

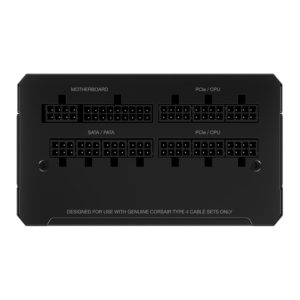

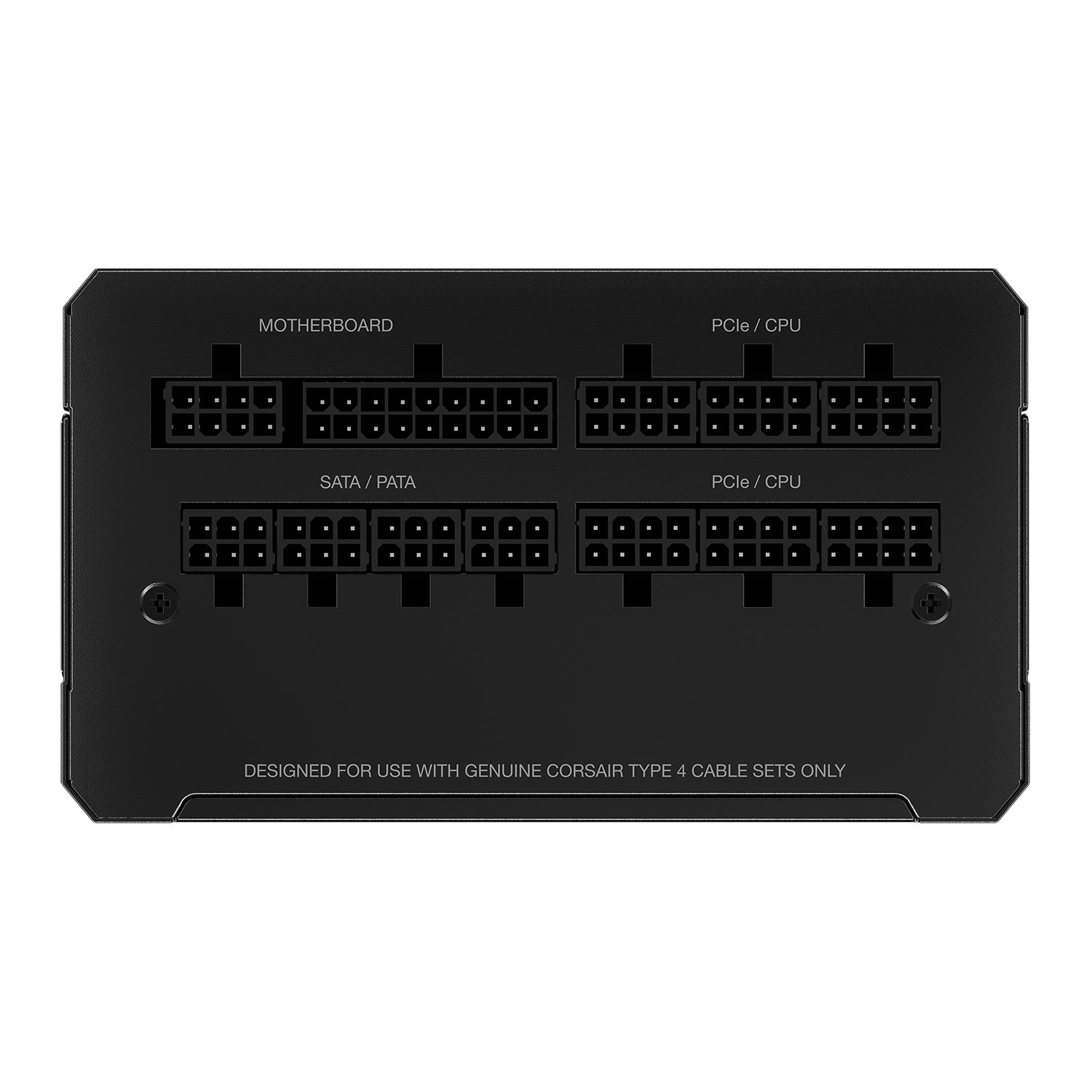

FULLY MODULAR CABLING
Keep cable clutter down by connecting only the cables your system needs and nothing else. Five universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.
ON THE CUTTING-EDGE
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
LOW NOISE OPERATION IN A COMPACT SIZE
Shorter than the traditional power supply, the RMe offers more cable space behind your PSU.

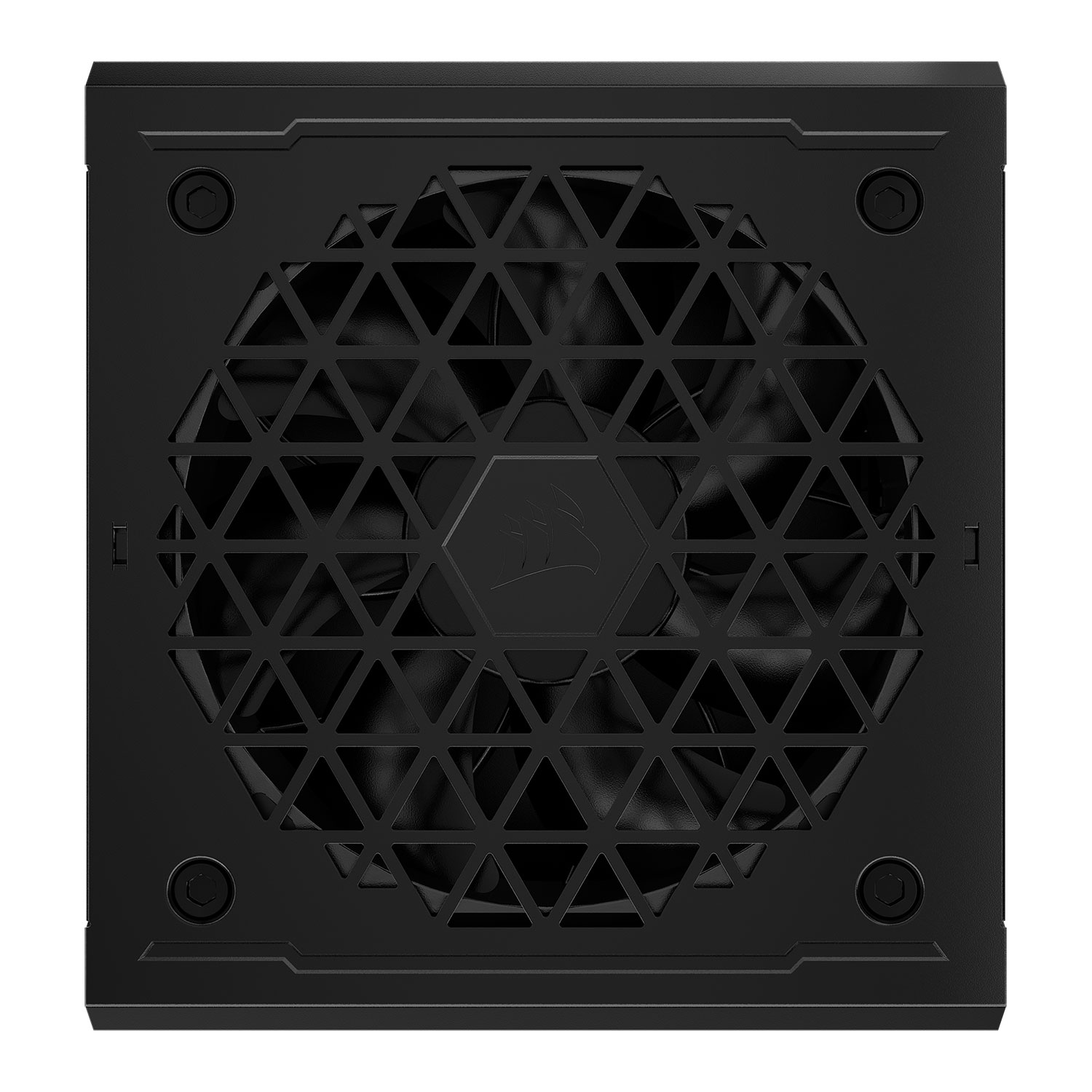

Includes Zero RPM Fan Mode for near-silent operation at lower loads.
LOW NOISE
FAN MODE
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.
With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
80 PLUS GOLD-CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures.
SEVEN-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
RM1000e POWER TABLE
| Model | RPS0179 | |
|---|---|---|
| Part No. | CP-9020264/75-005411 | |
| AC INPUT RATING | ||
| AC Input | 100V-240V | |
| Input Current | 12A-6A | |
| Frequency | 47~63Hz | |
| MAX LOAD | MAX OUTPUT | |
| +3.3V | 20A | 150W |
| +5V | 20A | |
| +12V | 83.3A | 1000W |
| +5VSB | 3A | 15W |
| TOTAL POWER | 1000W | |
RM1000e CABLE LISTING
| QTY | Cable | Connectors per cable |
Total connectors |
Connector Spacing |
Total length | Cable Type |
|---|---|---|---|---|---|---|
| 1 | Modular ATX Cable (24-PIN)
|
1 | 1 | – | 610mm (± 10mm) |
Sleeved |
| 2 | EPS / ATX 12V 8-Pin (4+4)
|
1 | 2 | – | 650mm (± 10mm) |
Flat |
| 1 | 12VHPWR (12+4) Pin
|
1 | 1 | – | 650mm (± 10mm) |
Flat |
| 2 | PCIe 8-Pin (6+2)
|
1 | 2 | – | 650mm (± 10mm) |
Flat |
| 2 | PCIe 8-Pin (6+2) (6+2)
|
2 | 4 | 600mm, 100mm | 750mm (± 10mm) |
Flat |
| 1 | SATA (3 SATA) Straight
|
3 | 3 | 455mm, 115mm, 115mm, 115mm | 800mm (± 10mm) |
Flat |
| 1 | SATA (4 SATA) Right Angle
|
4 | 4 | 455mm, 115mm, 115mm, 115mm | 800mm (± 10mm) |
Flat |
| 1 | PATA (4-Pin)
|
4 | 4 | 450mm, 100mm, 100mm, 100mm | 750mm (± 10mm) |
Flat |
| Brand |
|---|
| Specifications | |
| ATX Connector | 1 |
| ATX12V Version | 3 |
| Cable Type | Type 4 |
| Continuous Power W | 1000 Watts |
| EPS Connector | 2 |
| MTBF Hours | 100,000 hours |
| PCI E Connector | 3 |
| SATA Connector | 7 |
| PATA Connector | 4 |
| Modern Standby | Yes |
| Dimensions | 140x150x86 |
| Modular | Fully |
| Eighty PLUS Efficiency | Gold |
| Zero RPM Mode | Yes |
| Weight | 3.053 |
