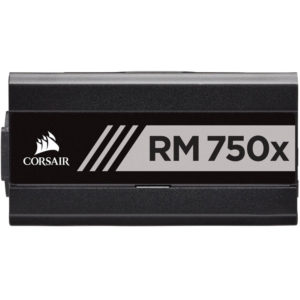

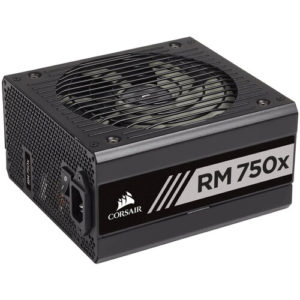

Corsair RMx Series™ RM750x — 750 Watt 80 PLUS® Gold Certified Fully Modular PSU (UK)

Corsair
  • 750W Single +12 Rail

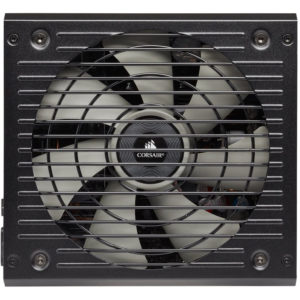

  • 135mm Cooling Fan
  • EPS/ATX12V Form Factor
  • 4 x PCIe 8-Pin Connectors
  • 9 x SATA Connectors
  • 8 x Peripheral 4-Pin Connectors

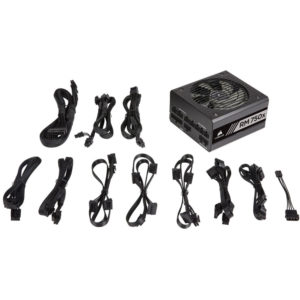

  • Fully Modular Cable Design
  • Low Noise Operation
  • Zero RPM Fan Mode
Availability:

Out of stock

 23,300

Out of stock

SKU: CP-9020179-UK Categories: ,

Product Specification

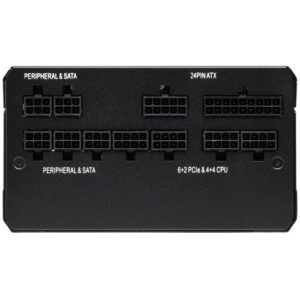

Total Connectors 1 x 24-Pin ATX Motherboard
2 x 4+4-Pin EPS CPU
4 x 6+2-Pin PCIe
9 x 6-Pin SATA / Peripheral
8 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy
Cable Design Modular
PCIe Connector Distances 23.6″ / 600 mm
5.9″ / 150 mm
SATA Connector Distances 20.5″ / 520 mm
4.5″ / 115 mm
Peripheral Connector Distances 17.7″ / 450 mm
3.9″ / 100 mm
Total Wattage 750 W
Number of +12 V Rails 1
Combined Power for +12 V 750 W
Max Load for +12 V 62.5 A
Combined Power for +3.3/+5 V 150 W
Max Load for +3.3 V 25 A
Max Load for +5 V 25 A
Max Power for +5 Vsb 15 W
Max Load for +5 Vsb 3 A
Max Power for -12 V 9.6 W
Max Load for -12 V 0.8 A
Peak Power 750 W

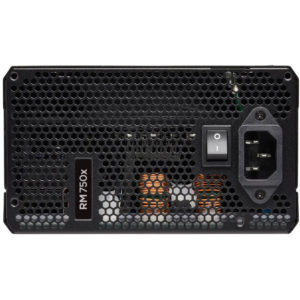

AC Input Power 100 to 240 VAC, 50 / 60 Hz at 5 to 10 A
AC Input Power VAC50 / 60 Hz
Efficiency Rating 80 PLUS Gold
Efficiency 93%
Fan Size 135 mm
Bearing Type Rifle
Form Factor ATX
Protection Over-Current Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection
Certifications BSMI, CB, CCC, CE, FCC, RCM, RoHS, TUV, WEEE, cTUVus, as per Manufacturer
Mean Time Between Failures (MTBF) 100,000 Hours
Dimensions 6.3 x 5.9 x 3.4″ / 160 x 150 x 86 mm
Weight 3.35 lb / 1.52 kg
