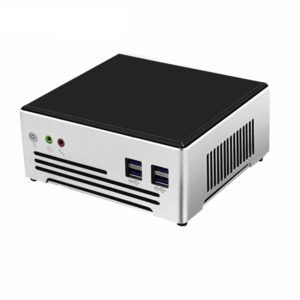

EPC Mini PC with Core i5-1035G4 Desktop Computer

  • Advanced newest intel core 10nm processor, assure more powerful performance for gaming, office, drawing
  • Advanced Intel Iris plus graphics 940 on i7 1065G7/i5 1035G4, performance match to MX250 dedicated graphic card;
  • 2*DDR4 RAM slots 2xfaster than 1 ram slot, DDR4 2xfaster than DDR3;
  • Storage: i5-1035G4/i7-1065G7 model: 1*M.2 2280 NVMe/PCIe3.0x4 SSD+1*MSATA SSD, other models: 2*M.2 2280 NVMe/PCIe3.0x4 SSD(one also support M.2 SATA);
  • 2*Realtek Gigabit Ethernet Lans+M.2 2230 2.4G/5G Dual band AC(AX) WiFi/Bluetooth;
  • 1xDP and 1xHDMI 1.4, support dual 4K display synchronously;
  • Widespread applications such as office, school, bank, supermarket, service center, hospital, POS, HTPC, CCTV, etc.

 71,000

Product Specification

Basic Information:
CPU Onboard Intel Core CPU
TDP 15W/45W
Motherboard 140 x 130mm customized size
Chipset 200/400 series
Memory 2 x SO-DIMM DDR4 Slot

Support 4GB/8GB/16GB/32GB

DDR4-2133/2400/2666

OS Windows 10/Linux
PXE YES
Audio Intel High Definition Audio Controller
Network 2 x Onboard Realtek RTL8111 Gigabit Ethernet Controller

10/100Mbps/1000Mbps BaseT LAN

Video Intel® Graphics

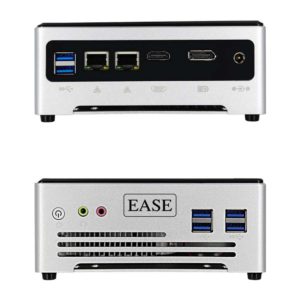

Input/output port
Switch 1 x Power On/Off Switch
Power 1 x Power In
USB 6 x USB3.0
Display 1 x DP, 1 x HDMI 1.4
LAN 2 x RJ45 Giga LAN
Audio 1 x MIC, 1 x SPK
Storage
M.2 2 x M.2 slot for 2280 NVMe/PCIe SSD 32Gb/s
Wi-Fi
Module 1 x M.2 slot for Wi-Fi module
Antenna 2 x inner RF cables and without external antenna
Power and Working Environment
Input DC100-240V AC/50-60Hz
Output DC +12V~+19V
Operating Temperature 0/70 Centigrade
Relative Humidity 10%~85%
Product Dimension & Details
Size 135*150*66mm
Weight Net 0.7kg, Gross 1.5kg
Shell PVP top and aluminum alloy body

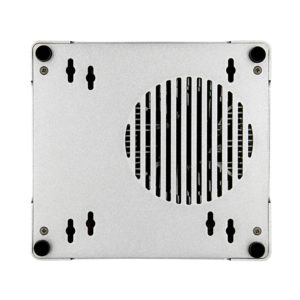

Cooling Mode With a copper cooling fan
Functions AWAL, PXE, Wake On LAN, RTC
Package Content
Standard

1xMini PC, 1xPower Adapter, 1xPower Cord, 4xMount Screws

Optional 1xUser Manual
