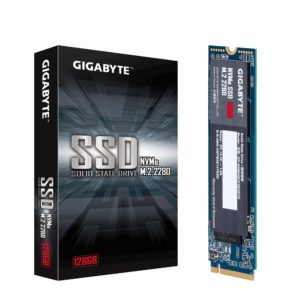

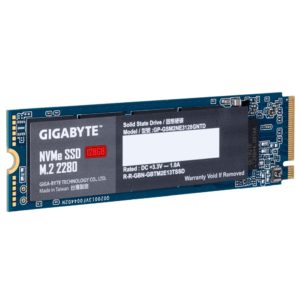

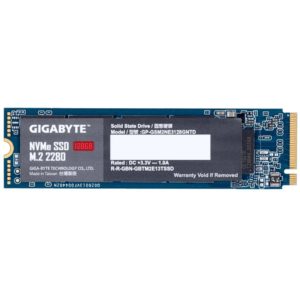

Gigabyte 128GB M.2 PCIe NVMe SSD/Solid State Drive

Gigabyte
  • Form Factor: M.2 2280
  • Interface: PCI-Express 3.0 x4, NVMe 1.3
  • Total Capacity: 128GB*
  • Warranty: Limited 5-year or 110TBW
  • Sequential Read Speed : up to 1550 MB/s**
  • Sequential Write speed : up to 550 MB/s**
  • HMB (Host Memory Buffer) supported
  • TRIM & S.M.A.R.T supported

 6,000

Product Specification

  • Interface: PCI-Express 3.0 x4, NVMe 1.3
  • Form Factor: M.2 2280
  • Total Capacity: 128GB
  • NAND: NAND Flash
  • External DDR Cache: N/A
  • Sequential Read speed: Up to 1550 MB/s
  • Sequential Write speed: Up to 550 MB/s
  • Random Read IOPS: Up to 100k
  • Random Write IOPS: Up to 130k
  • Dimension: 80 x 22 x 2.3 mm
  • Mean time between failure (MTBF): 1.5M hours
  • Power Consumption (Active): Avg. read : 2.2W ; Write : 1.7W
  • Power Consumption (Idle): 1.1mw
  • Temperature (Operating): 0°C to 70°C
  • Temperature (Storage): -40°C to 85°C
  • Note:
    * Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
    * Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.
    * Speeds based on internal testing. Actual performance may vary.
    * TBW (Terabyte Written):Terabytes Written” is the total amount of data that can be written into an SSD before it is likely to fail.
    * 1GB = 1 billion bytes. Actual useable capacity may vary.
    * 5-years or 110TBW, whichever comes first.
    * TBW is evaluated by JEDEC workload standard.
