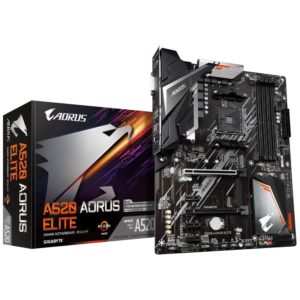

GIGABYTE A520 AORUS ELITE AMD Motherboard

Gigabyte
  • Supports 3rd Gen AMD Ryzen™ Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
  • AMP-UP Audio with ALC1200 and High End Audio Capacitors
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • HDMI, DVI-D Ports for Multiple Display
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Pre-installed IO Shield for Easy and Quick Installation
Availability:

Out of stock

 20,000

Out of stock

  • CPU
    1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. AMD A520
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. 3rd Gen AMD Ryzen™ Processors:
      Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
      Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics
    Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

    1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

    Maximum shared memory of 16 GB

  • Audio
    1. Realtek® ALC1200 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
  • Expansion Slots
    CPU:

    1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:

    1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
    2. 3 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2, PCIEX1_3)
      * The PCIEX1_2 and PCIEX1_3 slots share bandwidth with the PCIEX2 slot. The PCIEX2 slot becomes unavailable when a device is installed in the PCIEX1_2 or PCIEX1_3 slot.
  • Storage Interface
    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

    Chipset:

    1. 4 x SATA 6Gb/s connectors
    2. Support for RAID 0, RAID 1, and RAID 10

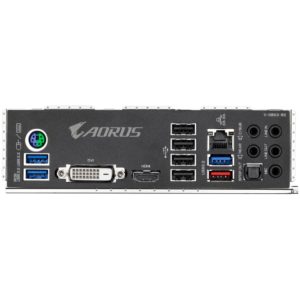

  • USB
    CPU:

    1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    2. 3 x USB 3.2 Gen 1 ports on the back panel

    Chipset:

    1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    2. 4 x USB 2.0/1.1 ports available through the internal USB headers

    Chipset+USB 2.0 Hub:

    1. 4 x USB 2.0/1.1 ports on the back panel
