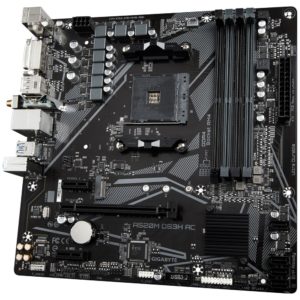

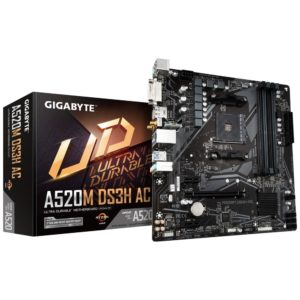

Gigabyte A520M DS3H mATX AM4 Motherboard

Gigabyte
  • Supports 3rd Gen AMD Ryzen™ Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • HDMI, DVI-D, Display Ports for Multiple Display
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Ad
Availability:

Out of stock

₨ 14,580

Out of stock

  • CPU
    1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. AMD A520
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. 3rd Gen AMD Ryzen™ Processors:
      Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
      Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics

    Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

    1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
      * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

    Support for up to 3 displays at the same time
    Maximum shared memory of 16 GB

  • Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
  • LAN
    1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
  • Expansion Slots

    CPU:

    1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

    Chipset:

    1. 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
  • Storage Interface

    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

    Chipset:

    1. 4 x SATA 6Gb/s connectors
    2. Support for RAID 0, RAID 1, and RAID 10
  • USB

    CPU:

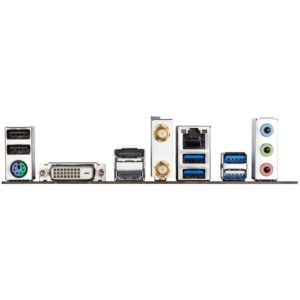

    1. 4 x USB 3.2 Gen 1 ports on the back panel

    Chipset:

    1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
