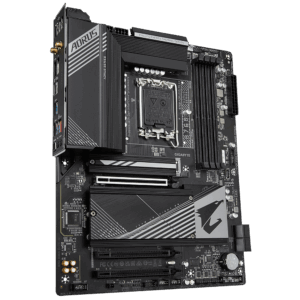

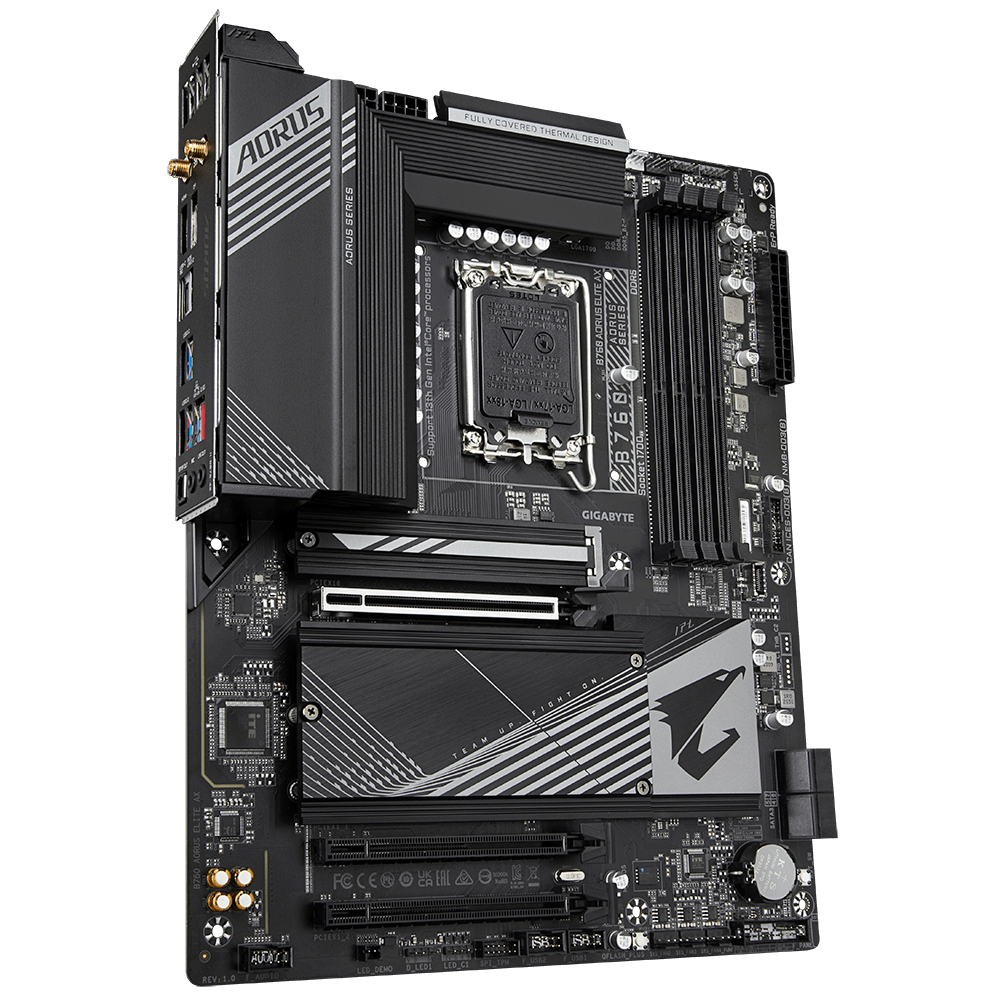

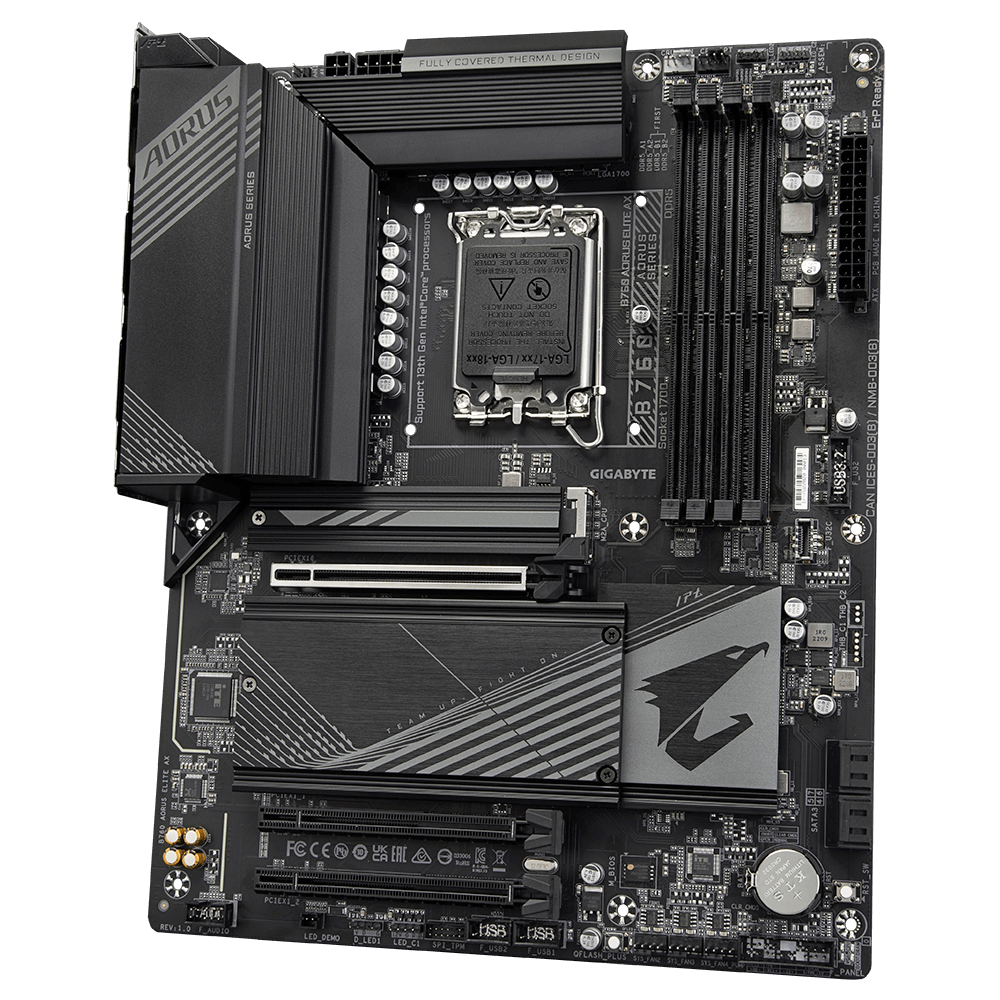

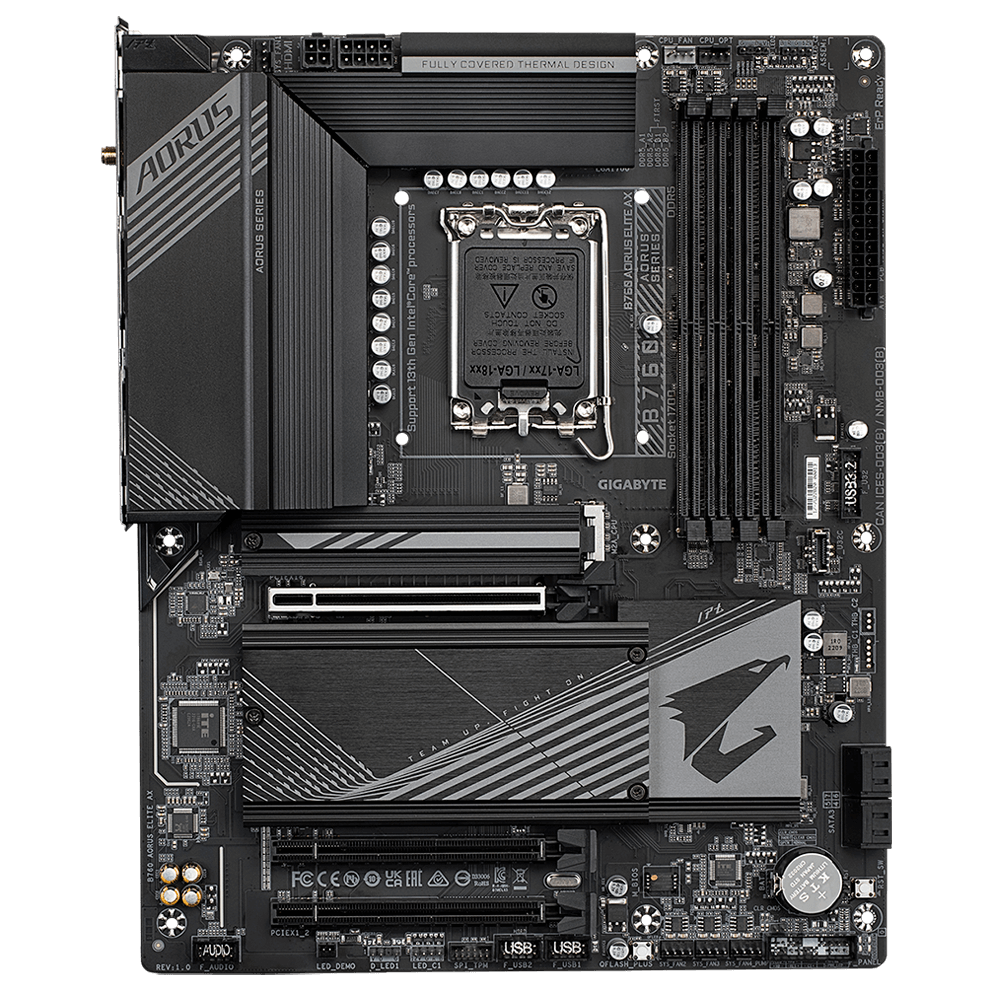

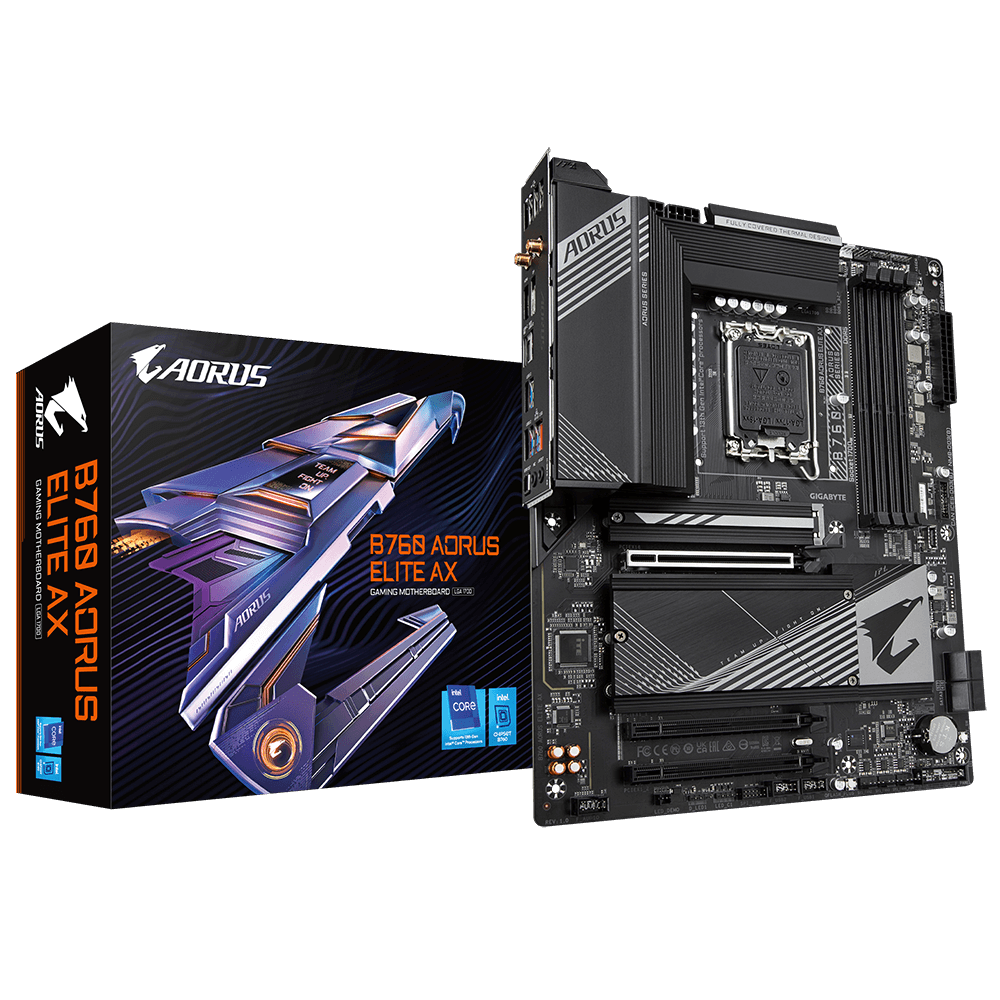

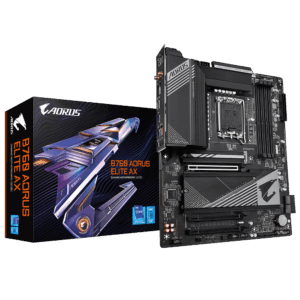

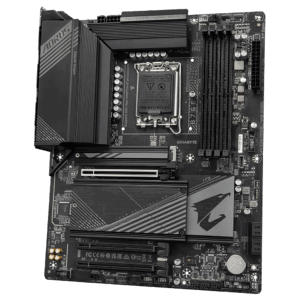

GIGABYTE B760 AORUS ELITE AX (REV. 1.0) MOTHERBOARD

Gigabyte
  • Intel® Socket LGA 1700: Support 13th and 12th Gen Series Processors
  • Unparalleled Performance: Twin 12*+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5: 4*SMD DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity: Rear and Front USB-C® 10Gb/s, DP, HDMI
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Availability:

Out of stock

 68,040

Out of stock

Gigabyte B760 Aorus Elite Ax (rev. 1.0) DDR5 Motherboard :



Unparalleled Performance
Twin Digital | VRM Design PCIe 4.0 | Unlock DDR5 | XMP Dual PCIe 4.0 | M.2 PerfDrive
With Gigabyte B760 Aorus Elite Ax (rev. 1.0) Motherboard the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. Gigabyte B760 Aorus Elite Ax motherboard are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

DDR5 Overclocking Up to 7600 and Beyond*
Gigabyte B760 Aorus Elite Ax is offering a tested and proven platform that has memory overclocking capability up to 7600 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

Triple PCIe 4.0 x4 M.2 Connectors with Thermal Guard
Gigabyte B760 Aorus Elite Ax Motherboard are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential.

GIGABYTE PerfDrive
PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.

2X Large Surface
Increased surface area up to 2X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.

First adopter on 2.5GbE LAN onboard 2X Faster than ever

Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors’ multi-piece design.

Multi-Cut Design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.

3% Cooler by implementing 2X copper PCB Design
By adopting 2X copper on PCB inner layer, it lowers the components’ temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it’s high thermal conductivity and lower impedance.

SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Outstanding Thermal Design
Thermal Design | Fully Covered MOSFET Heatsink | M.2 Thermal Guard | 2X Copper PCB | Smart Fan 6
Gigabyte B760 Aorus Elite Ax Motherboard unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

CONNECTIVITY
802.11ax Wi-Fi 6E | 2.5GbE LAN | Rear and Front USB-C® 10Gb/s| Front USB-C® 10Gb/s | Hi-Fi Audio
Gigabyte B760 Aorus Elite Ax Motherboard enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

Personalization
RGB FUSION | UEFI BIOS | GIGABYTE Control Center | Multi-Key
Gigabyte B760 Aorus Elite Ax motherboard bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

Multi-key
A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.

RGB Switch
Turn off all lighting effect on motherboard. Direct-To-BIOS Boot into BIOS menu directly without pressing any keyboard button. Safe Mode Boot into BIOS safe mode to change specific option without losing other BIOS settings.

High-End Audio Capacitors
Gigabyte B760 Aorus Elite Ax motherboard use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard
Gigabyte B760 Aorus Elite Ax motherboard feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

ULTRA DURABLE
DIY Friendly | Q-Flash Plus
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte. IN) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

SKU: 4719331851750 Categories: ,
Brand

CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*L3 cache varies with CPU  * Please refer to “CPU Support List” for more information.
 Chipset  Intel® B760 Express Chipset
 Memory  Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)



Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules



Support for Extreme Memory Profile (XMP) memory modules



(Please refer “Memory Support List” for more information.)

Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz*

Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

You can change the functionality of an audio jack using the audio software.

To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module  Intel® Wi-Fi 6E AX211 WIFI

a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.)

Expansion Slots  CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)



 Storage Interface CPU:

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

    USB Chipset:

2 x USB Type-C® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

2 x USB 3.2 Gen 1 ports available through the internal USB header

Chipset+USB 3.2 Gen 1 Hub:

4 x USB 3.2 Gen 1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

        Internal I/O Connectors 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

    Back Panel Connectors  1 x USB Tpe-C® port, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red)

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

2 x SMA antenna connectors (2T2R)

1 x HDMI port

1 x DisplayPort

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks

    I/O Controller  iTE® I/O Controller Chip
    H/W Monitoring  Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

    BIOS         1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Unique Features         Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

            Bundled Software                 Norton® Internet Security (OEM version)

LAN bandwidth management software

    Operating System         Support for Windows 11 64-bit

Support for Windows 10 64-bit

            Form Factor ATX Form Factor; 30.5cm x 24.4cm
