GIGABYTE Gaming GeForce RTX 4090 24GB GDDR6X PCI Express 4.0 x16 ATX Video Card GV-N4090GAMING OC-24GD

Gigabyte
  • 24GB 384-Bit GDDR6X
  • 1 x HDMI 2.1 3 x DisplayPort 1.4
  • 16384 CUDA Cores
  • PCI Express 4.0 x16
Availability:

Out of stock

 637,200

Out of stock

Based on the Ada Lovelace architecture and designed to handle the graphical demands of 8K gaming and high frame rates, the Gigabyte GeForce RTX 4090 GAMING OC Graphics Card brings the power of real-time ray tracing and AI to your PC games. The GPU features 24GB of GDDR6X VRAM and a 384-bit memory interface, offering improved performance and power efficiency over the previous Ampere-based generation.

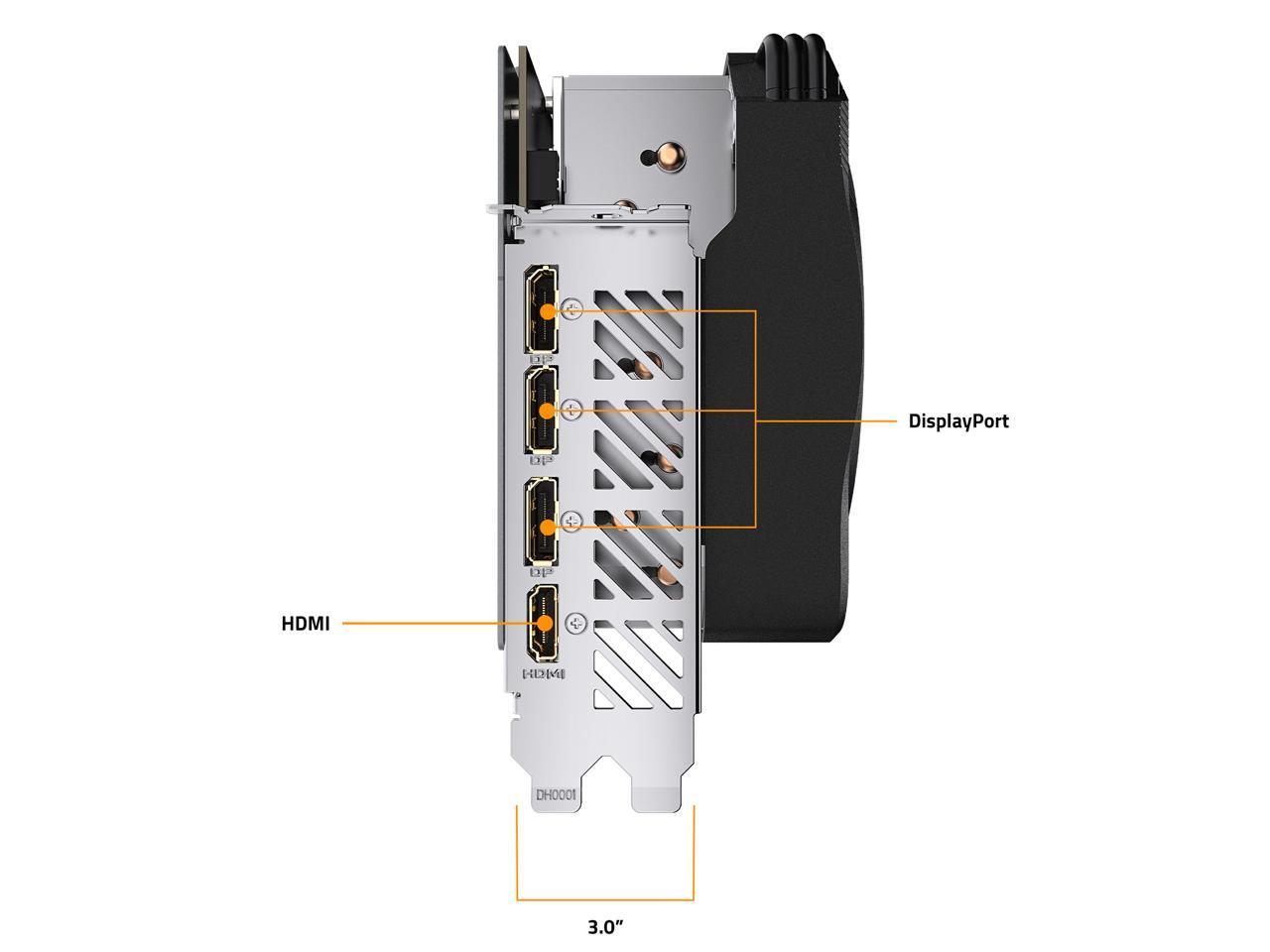

The front panel of the card features a variety of outputs, such as DisplayPort 1.4a and HDMI 2.1. HDMI 2.1 supports up to 48 Gb/s bandwidth and a range of higher resolutions and refresh rates, including 8K @ 60 fps, 4K @ 120 fps, and even up to 10K. The RTX 4090 is not just about high-resolution gaming. Computationally intensive programs can utilize the GPU’s 16384 cores to accelerate tasks using CUDA and other APIs.

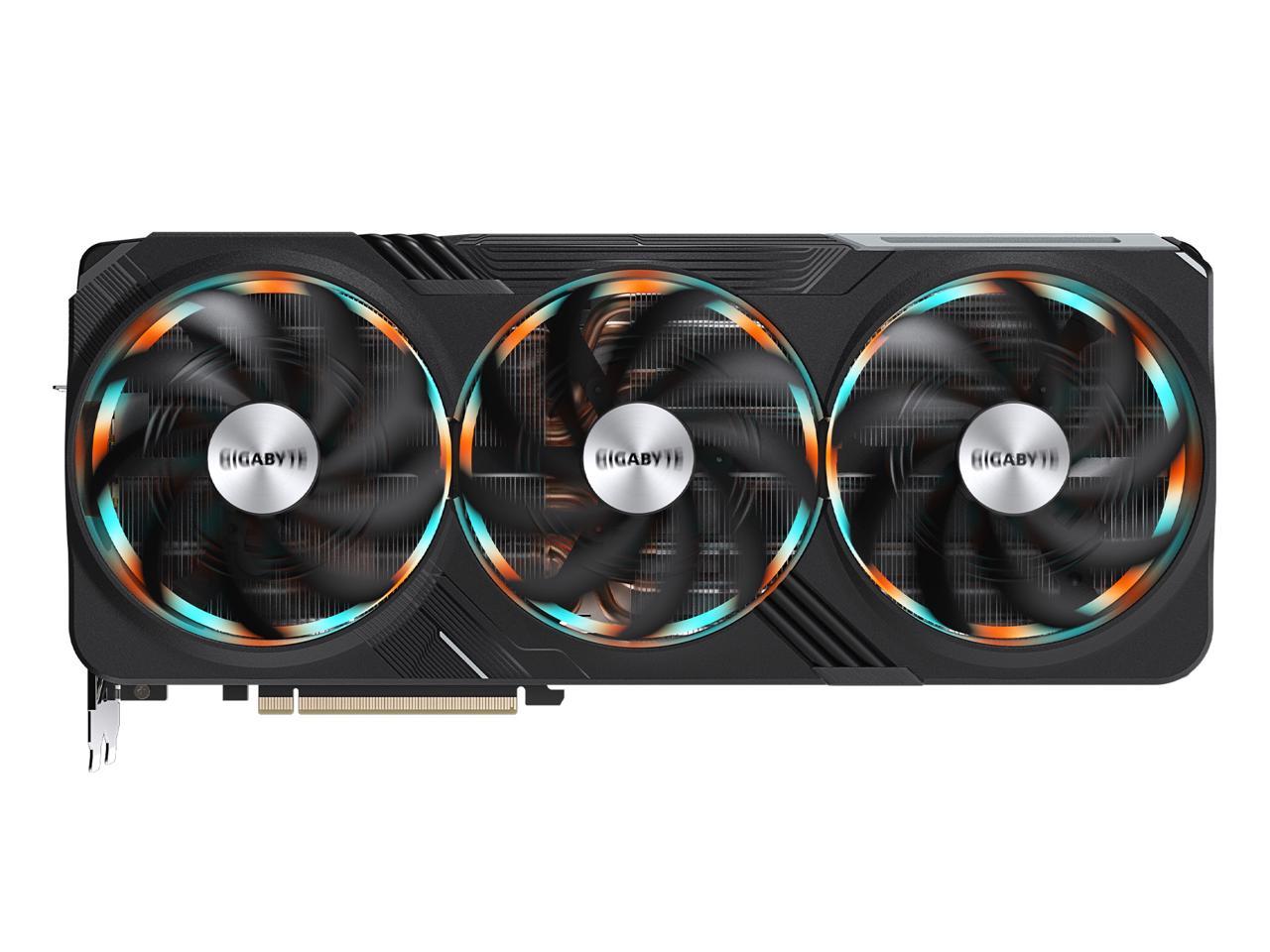

For cooling, Gigabyte implemented the WINDFORCE 3X cooling system. The cooling system uses three 80mm fans. The airflow is split by the triangle fan edge and guided smoothly through the 3D stripe curve on the fan surface. The 3D Active Fan feature provides semi-passive cooling, which means the fans will remain off when the GPU is under a set loading or temperature for low power gaming. You can also adjust lighting effects via RGB FUSION 2.0 software.

NVIDIA Ada Lovelace Architecture
NVIDIA Ada Lovelace architecture features 4th Gen Tensor Cores, 3rd Gen RT cores, Shader Execution Reordering (SER) technology, and more.
Ray Tracing
The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds for an immersive gaming experience.
NVIDIA DLSS 3
DLSS is a breakthrough in AI-powered graphics that massively boosts performance. Powered by the 4th Gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.
NVIDIA Reflex
NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver the low latency and fast responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the optimal aim precision for competitive games.
NVIDIA G-SYNC
Get smooth, tear-free gameplay at high refresh rates, plus HDR and more. This is the ultimate gaming display and the go-to equipment for enthusiast gamers.
8K HDR Gaming
Connect, play, capture, and watch in brilliant HDR at resolutions up to 8K with the GeForce RTX 4090. Capture up to 8K HDR footage with the GeForce Experience ShadowPlay feature and play back smoothly with AV1 decode.
Virtual Reality
The RTX 40 Series GPUs can deliver an immersive virtual reality experience.
Resizable BAR
Resizable BAR is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once, improving performance in many games.
SKU: 4719331311438 Categories: ,
Brand

Model
Brand GIGABYTE
Series Gaming
Model GV-N4090GAMING OC-24GD
Interface
Interface  PCI Express 4.0 x16
Chipset
Chipset Manufacturer NVIDIA
GPU Series NVIDIA GeForce RTX 40 Series
GPU  GeForce RTX 4090
CUDA Cores  16384
Memory
Memory Size 24GB
Memory Interface  384-Bit
Memory Type GDDR6X
3D API
DirectX  DirectX 12 Ultimate
OpenGL  OpenGL 4.6
Ports
Multi-Monitor Support 4
HDMI  1 x HDMI 2.1
DisplayPort  3 x DisplayPort 1.4
Details
Max Resolution 7680 x 4320
Cooler Triple Fans
Thermal Design Power  450W
Recommended PSU Wattage 1000W
Power Connector 1 x 16-Pin
Form Factor & Dimensions
Form Factor  ATX
Max GPU Length 340 mm
Card Dimensions (L x H) L=340 mm, W=150.2 mm, H=75.2 mm
