• Supports 13th/12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 6+1+1 Hybrid Digital VRM Design
  • GbE LAN with Bandwidth Management
  • NVMe PCIe 3.0 x4 M.2
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design


Buy GIGABYTE H610M H V2 DDR4 1.0 (LGA 1700 Intel 12th & 13th Gen) mATX Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor,  Smart Fan 6 Price in Pakistan

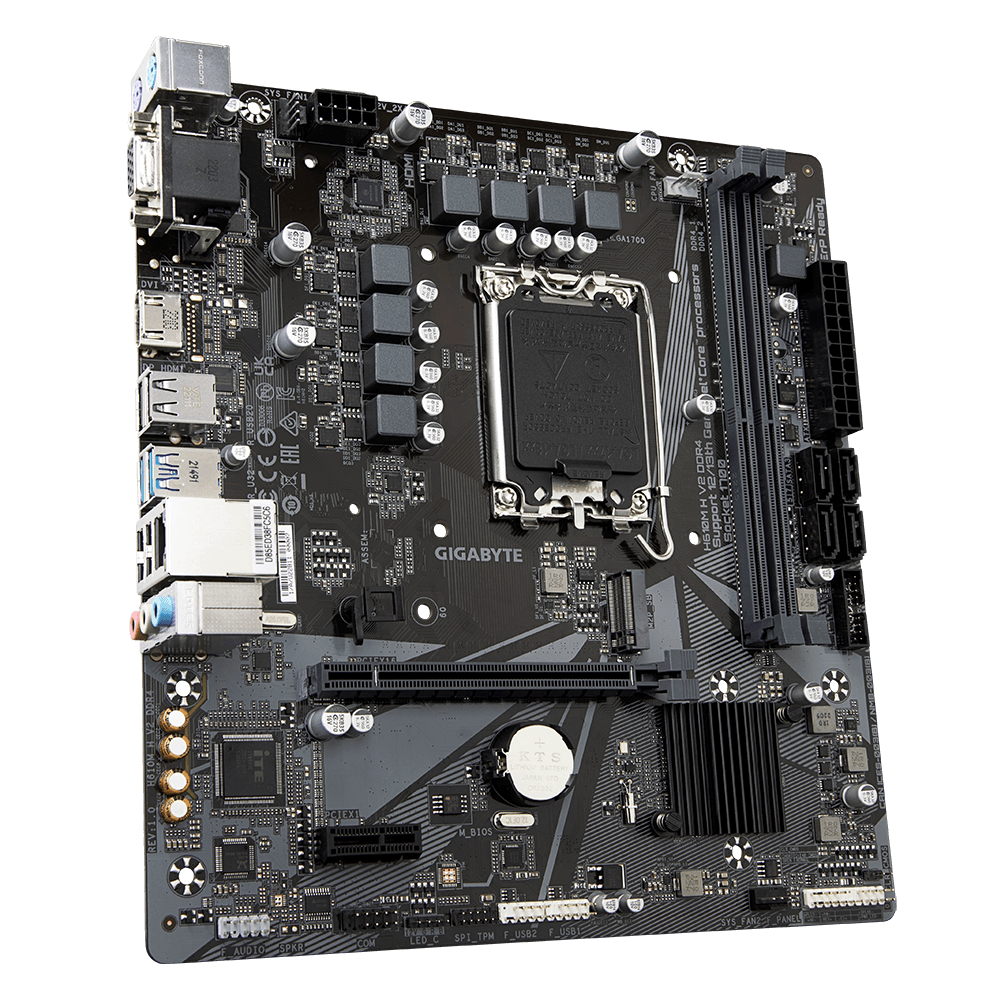

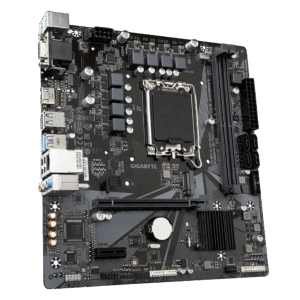

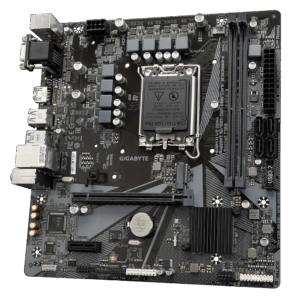

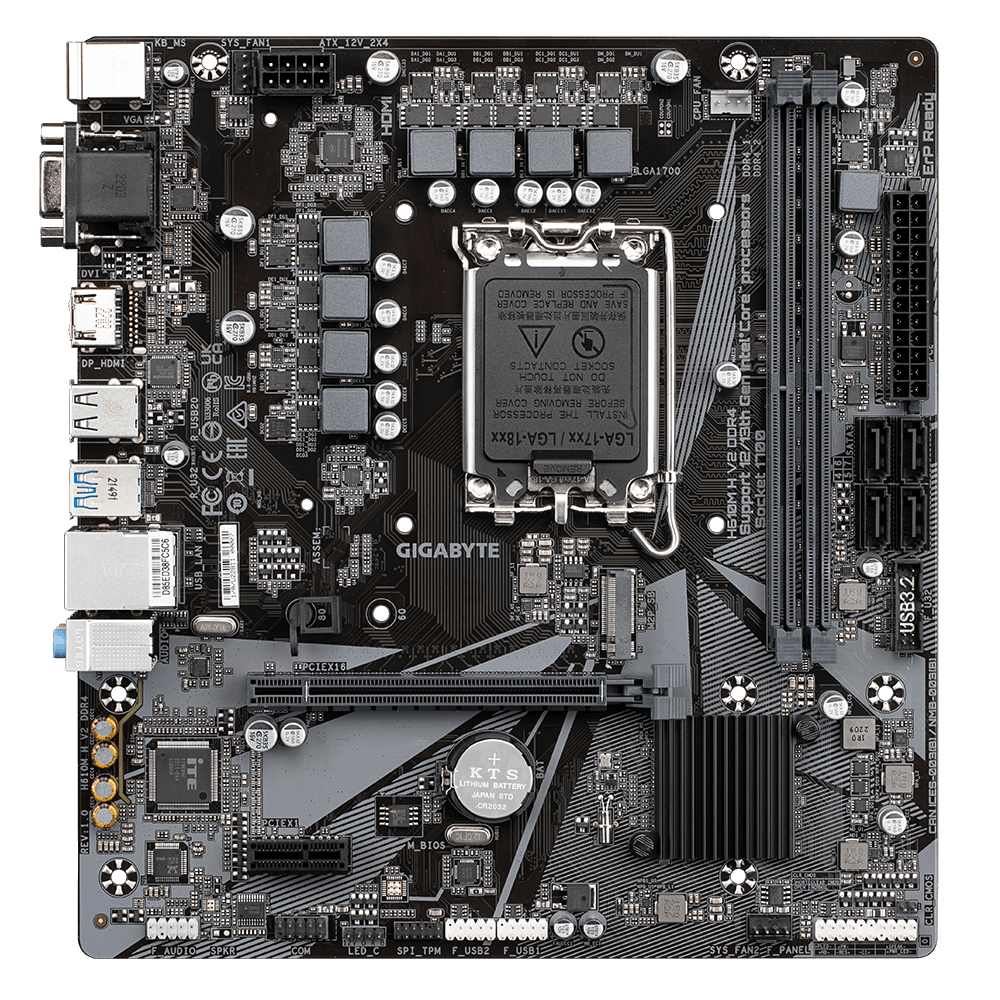

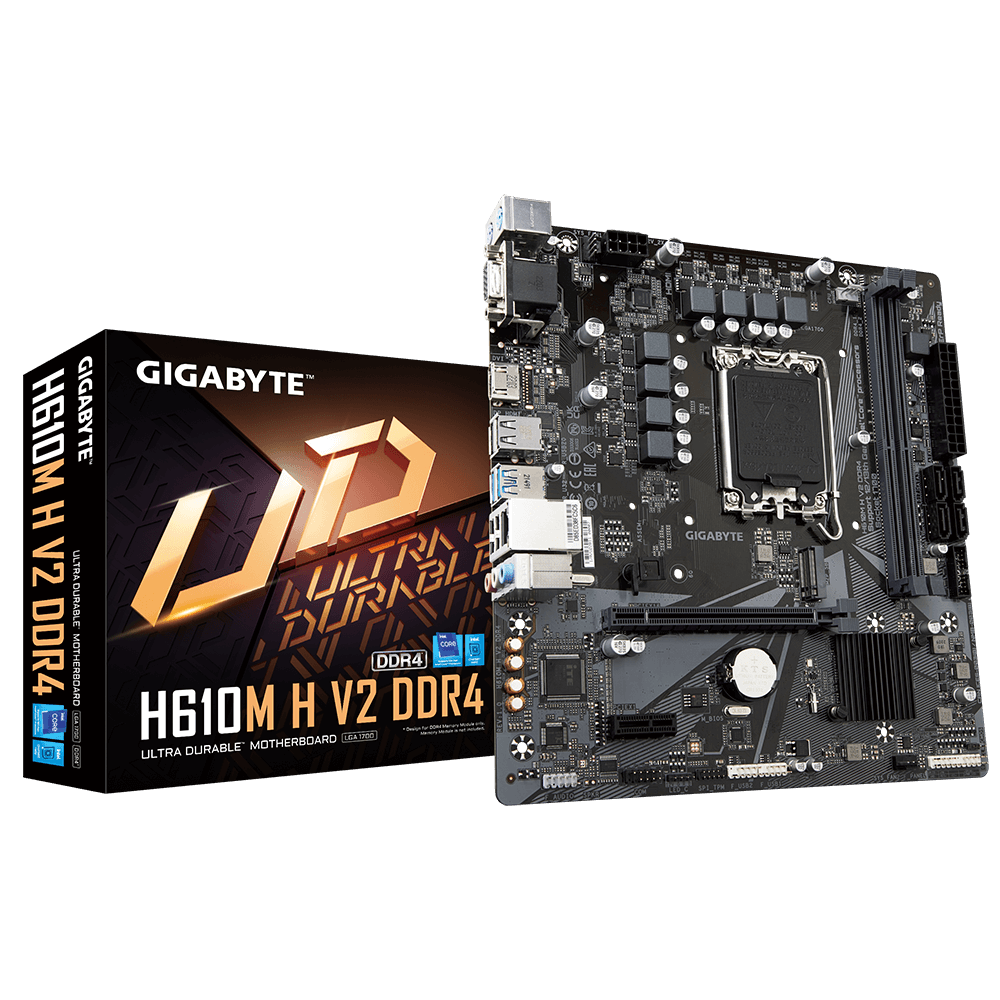

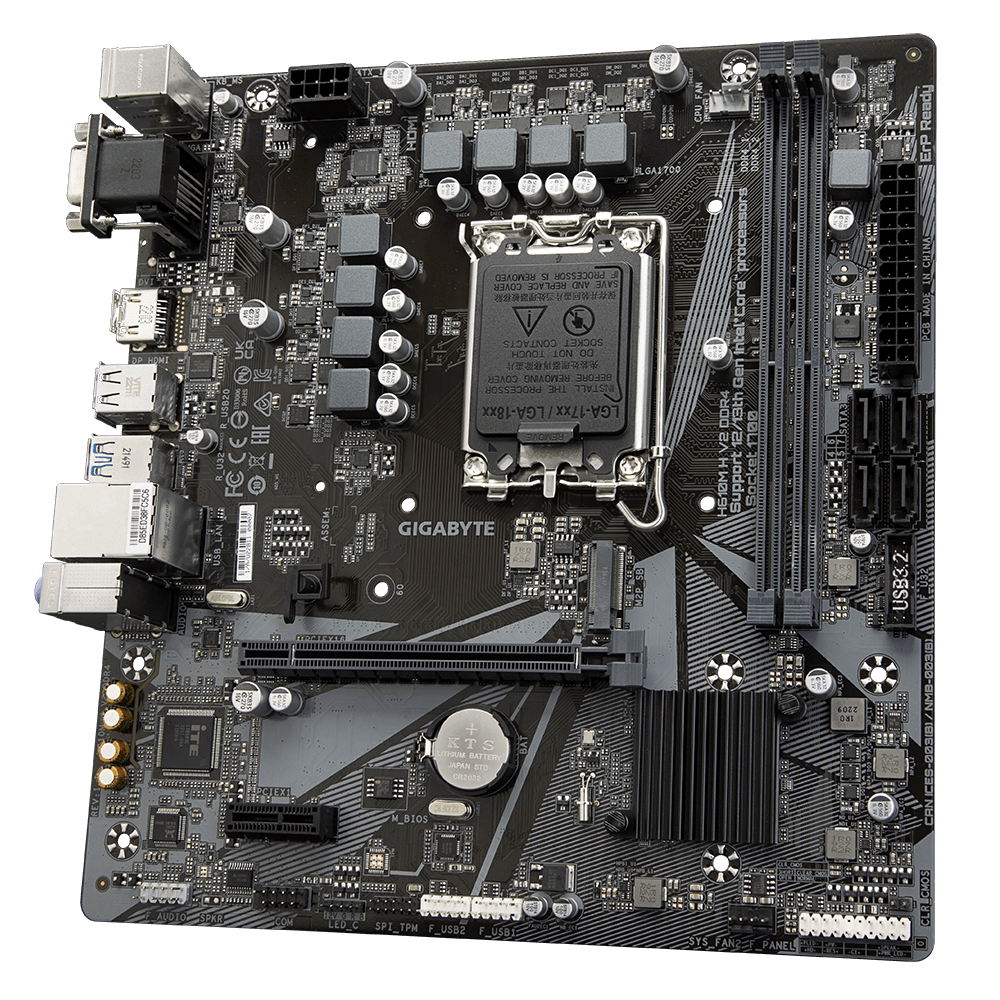

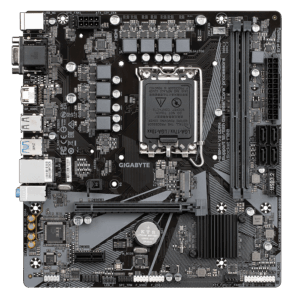

A Compact and Durable Motherboard for Your Intel® Processor

The GIGABYTE H610M H V2 DDR4 motherboard is a micro ATX motherboard that offers a compact and durable solution for your Intel® processor. Whether you are building a budget-friendly PC, a home office PC or a multimedia PC, this motherboard can satisfy your needs with its DDR4 memory support, PCIe 4.0 slot, M.2 slot, GIGABYTE 8118 LAN and HDMI/D-Sub ports.

Compatible with Intel® Processors

The GIGABYTE H610M H V2 DDR4 motherboard is compatible with 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors with LGA1700 socket. These processors offer great performance and efficiency for various tasks and applications.

Supports Up to 64 GB of DDR4 Memory

The motherboard also supports up to 64 GB of dual channel ECC/ non-ECC un-buffered DDR4 memory with two DIMM slots. You can choose from a wide range of memory speeds up to 3200 MT/s and enable the Extreme Memory Profile (XMP) for optimal performance.

Features a PCIe 4.0 Slot for High-Speed Devices

The motherboard also features a PCIe 4.0 x16 slot that supports high-speed devices with PCIe 4.0 bandwidth. This slot offers faster data transfer speeds and better performance than PCIe 3.0 slots.

Offers an M.2 Slot for Faster Storage Devices

The motherboard also offers an M.2 slot (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) that allows you to install SSDs that offer faster boot times and data transfer speeds than traditional HDDs.

Provides Multiple Connectivity Options

The motherboard also provides multiple connectivity options for your peripherals and displays. It has two USB 3.2 Gen 1 ports (Type-A) and four USB 2.0 ports (Type-A) on the back panel, as well as two USB 3.2 Gen 1 ports and four USB 2.0 ports available through the internal headers.

For your display output, the motherboard has a D-Sub port and an HDMI port that support up to two displays at the same time with resolutions up to 1920×1200@60 Hz for D-Sub and 4096×2160@60 Hz for HDMI. The motherboard also supports HDCP 2.3 and HDR for enhanced video quality.

For your wired network connection, the motherboard has a GIGABYTE 8118 LAN port (1 Gbps/100 Mbps) that provides reliable and stable network performance.

Delivers High Quality Audio

The motherboard also delivers high quality audio with its Realtek audio codec, high-definition audio and audio noise guard with LED trace path lighting. The motherboard supports up to 7.1-channel audio output with the rear audio jacks or the front panel audio header (AAFP).

Features Direct Digital VRM Solution for Stable Power Delivery

The motherboard also features direct digital VRM solution with low RDS (on) MOSFETs, solid capacitors and solid pin power connectors that provide stable and efficient power delivery to the CPU and other components.

Supports RGB FUSION for Customizable Lighting Effects

The motherboard also supports RGB FUSION that allows you to customize the lighting effects of your system with an RGB LED strip header. You can sync the lighting effects with other compatible devices or choose from various preset modes.

Supports Q-Flash for Easy BIOS Update

The motherboard also supports Q-Flash that allows you to update your BIOS without installing the CPU, memory and graphics card. You just need to plug in a USB flash drive with the BIOS file and press the Q-Flash button on the back panel.

The GIGABYTE H610M H V2 DDR4 motherboard is a compact and durable motherboard for your Intel® processor. It offers a balanced combination of features and performance for your PC build.

SKU: 4719331851743 Categories: ,

Model H610M H V2 DDR4
  • LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  • L3 cache varies with CPU
Chipset Intel® H610 Express Chipset
  • Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
  • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

  • 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    Support for HDMI 2.1 version and HDCP 2.3.
    Support native HDMI 2.1 TMDS compatible ports
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16


1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface Chipset:

  • 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
  • 4 x SATA 6Gb/s connectors
USB Chipset:

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x RGB LED strip header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper

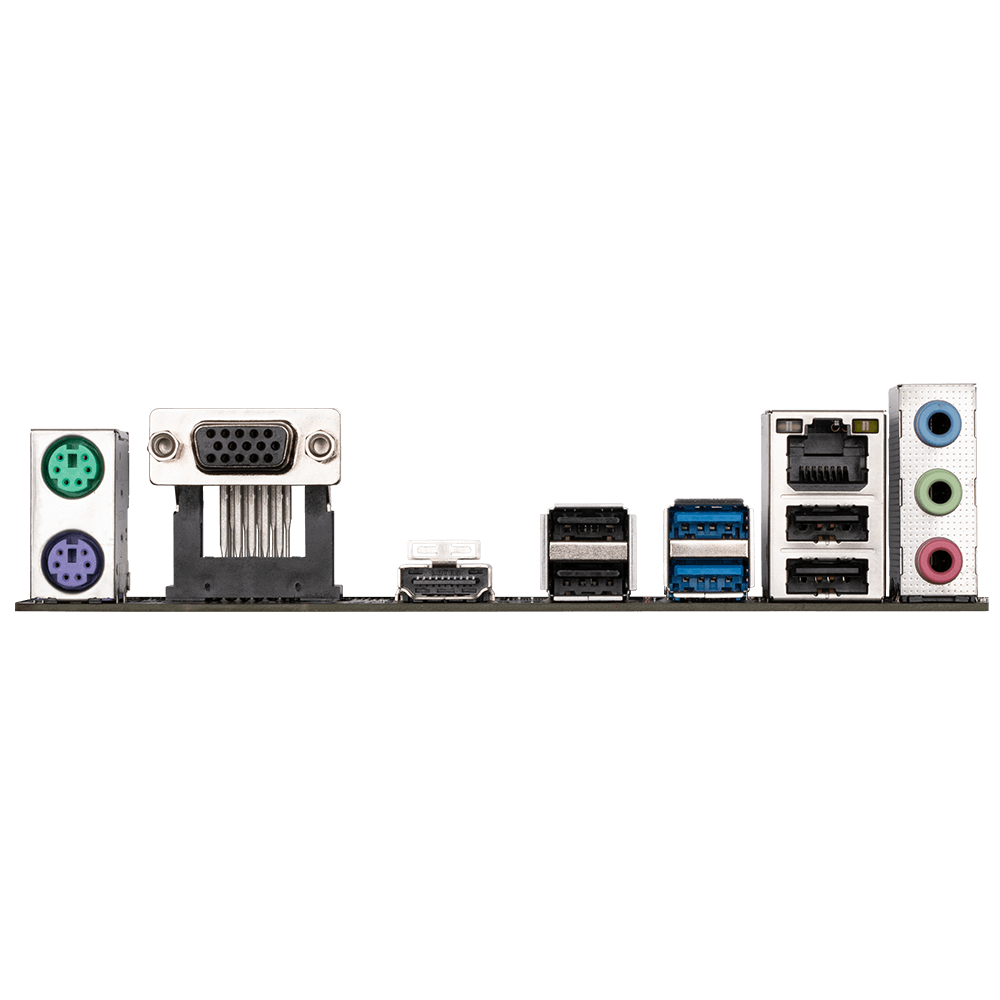

Back Panel Connectors
  • 1 x PS/2 keyboard port
  • 1 x PS/2 mouse port
  • 1 x D-Sub port
  • 1 x HDMI port
  • 2 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center

Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Ambient LED
Smart Backup
System Information Viewer

  • Support for Q-Flash
  • Support for Xpress Install
Bundled Software
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
