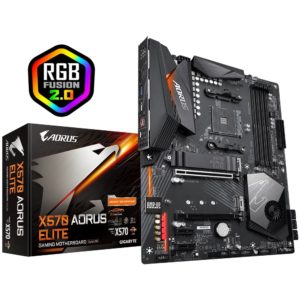

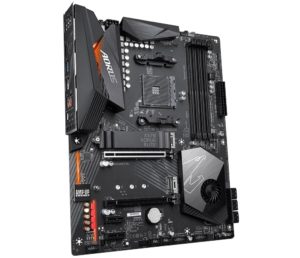

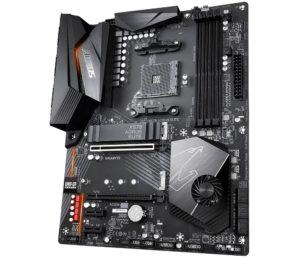

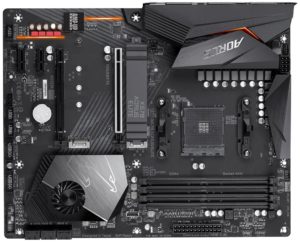

Gigabyte X570 AORUS ELITE AM4 ATX Motherboard

Gigabyte
  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 12+2 Phases Digital VRM Solution with DrMOS
  • Advanced Heatsink Design with Enlarge Heatsink
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Single Thermal Guard
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Intel® Gigabit LAN with cFosSpeed Internet Accelerator
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Front USB 3.1 Gen2 Type-C™ Header & HDMI 2.0 support
  • Integrated I/O Shield Armor
  • Q-Flash Plus update BIOS Without Installing CPU, Memory and Graphics card
Ad
Availability:

Out of stock

₨ 44,280

Out of stock

Add to Wishlist
Compare

SKU: 4719331806439 Categories: ,
CPU
Chipset AMD X570
CPU Socket AM4



Back Panel I/O
USB 4 x USB 2.0 Type-A
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 3.1 / USB 3.2 Gen 2 Type-A
Thunderbolt None
Display 1 x HDMI 2.0
Audio 5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller 1 x Intel Gigabit
Buttons BIOS Flashback



Memory
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2667, 2933, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC, ECC Unbuffered



Storage Expansion
SATA 6 x SATA III
M.2 2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA III)
U.2 None
RAID Support RAID 0, 1, 10



Internal I/O
Expansion Slots 2 x PCIe 4.0 x16
2 x PCIe 4.0 x1
USB 1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support Quad-GPU AMD CrossFireX
Air Cooling 1 x 4-Pin CPU
2 x 4-Pin System
Liquid Cooling 1 x Water Flow-Rate Sensor
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin CPU
Security TPM Module
LED Header 3 x RGB
Audio 1 x S/PDIF
Diagnostics Clear CMOS



BIOS
ROM 128 Mb



Front Panel I/O
I/O Connection Headers AAFP, USB 3.1 / USB 3.2 Gen 1



Audio
Audio Codec Realtek ALC1200 (7.1-Channel)



Software
Supported Operating Systems Windows 10 (64-Bit)



Physical
Form Factor ATX
Dimensions 9.61 x 12.01″ / 24.4 x 30.5 cm
