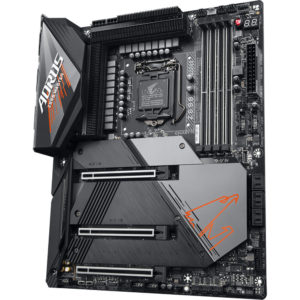

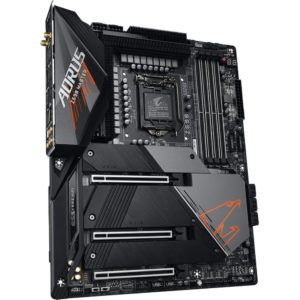

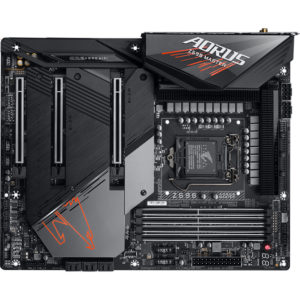

Gigabyte Z590 AORUS MASTER LGA 1200 ATX Motherboard

Gigabyte
  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optane™ Memory Ready
  • 18+1 Phases Digital VRM Solution with 90A Smart Power Stage and Tantalum Polymer Capacitors Array
  • Shielded Memory Routing to Avoid Interference
  • Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II and NanoCarbon Baseplate
  • Onboard Intel® WiFi 6E 802.11ax 2T2R & BT 5 with AORUS Antenna
  • 125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC, ALC1220 and WIMA Audio Capacitors
  • AQUANTIA® 10GbE BASE-T LAN with cFosSpeed
  • Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards II
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Availability:

Out of stock

 70,500

Out of stock

Product Specification

CPU
Chipset Intel Z590
CPU Socket LGA 1200
Back Panel I/O
USB 1 x USB 3.2 Gen 2×2 Type-C
5 x USB 3.1 / USB 3.2 Gen 2 Type-A
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
Thunderbolt None
Display 1 x DisplayPort
Audio 5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller 1 x Aquantia 10GbE
Wi-Fi Antenna 2 x Connector
Buttons BIOS Flashback, Clear CMOS
Memory
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333, 5400 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC, ECC Unbuffered
Storage Expansion
SATA 6 x SATA III
M.2 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2, PCIe 3.0 x4, PCIe 3.0 x2)
2 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2)
U.2 None
Optane Memory Support Yes
RAID Support RAID 0, 1, 5, 10
Internal I/O
Expansion Slots 1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (x8 mode)
1 x PCIe 3.0 x16 (x4 mode)
USB 1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support 2-Way, Quad-GPU AMD CrossFireX
Air Cooling 1 x 4-Pin CPU
8 x 4-Pin System
2 x Thermal Sensor
1 x Noise Sensor
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
Security TPM Module
LED Header 4 x RGB
Audio 1 x Speaker
Diagnostics BIOS Selection, Clear CMOS, Power, Reset
Add-On 2 x Thunderbolt Card Header
BIOS
ROM 256 Mb
Front Panel I/O
I/O Connection Headers USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2
Audio
Audio Codec Realtek ALC1220-VB (7.1-Channel)
Wireless
Bluetooth 5.2
Wi-Fi Wi-Fi 6 (802.11ax) (MU-MIMO)
Software
Supported Operating Systems Windows 10 (64-Bit)
Physical
Form Factor ATX
Dimensions 9.6 x 12.0″ / 24.4 x 30.5 cm
