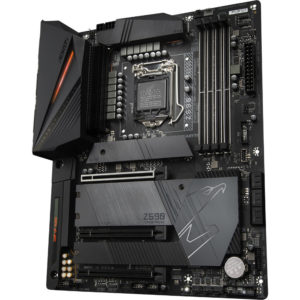

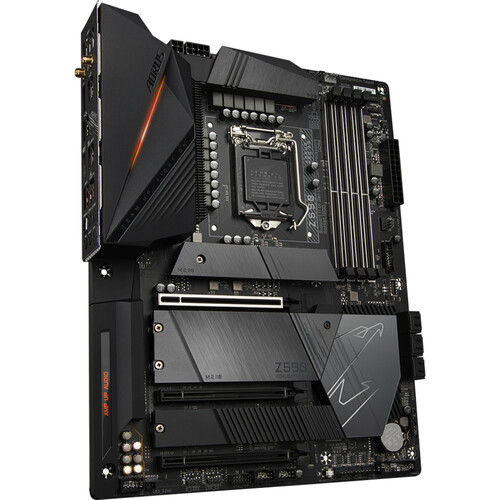

Gigabyte Z590 AORUS PRO AX LGA 1200 ATX Motherboard

Gigabyte
  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optane™ Memory Ready
  • Direct 12+1 Phases Digital VRM Solution with 90A Smart Power Stage
  • Shielded Memory Routing to avoid Interference
  • Advanced Thermal Solution with Fins-Array II Heatsink, Direct Touch Heatpipe II and Thermal Guard II
  • Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC4080 and WIMA for Rear 120dB SNR
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards II for extreme RAID Performance
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

 53,000

SKU: Z590 AORUS PRO AX Categories: ,

Product Specification

CPU
ChipsetIntel Z590
CPU SocketLGA 1200

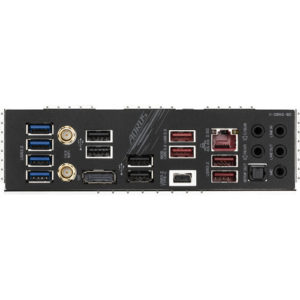

Back Panel I/O
USB1 x USB 3.2 Gen 2×2 Type-C
4 x USB 3.1 / USB 3.2 Gen 2 Type-A
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
4 x USB 2.0 Type-A
ThunderboltNone
Display1 x DisplayPort
Audio5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller1
Wi-Fi Antenna2 x Connector
Memory
Memory Slots4 x 288-Pin
Memory SupportDDR4 2133, 2400, 2666, 2933, 3000, 3200 MHz
Maximum Capacity128 GB
Channel ArchitectureDual Channel
ECC SupportNon-ECC, ECC Unbuffered
Storage Expansion
SATA6 x SATA III
M.21 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2, PCIe 3.0 x4, PCIe 3.0 x2)
2 x M Key 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2, PCIe 3.0 x4, PCIe 3.0 x2)
1 x M Key 2230, 2242, 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2)
U.2None
Optane Memory SupportYes
RAID SupportRAID 0, 1, 5, 10
Internal I/O
Expansion Slots1 x PCIe 4.0 x16
2 x PCIe 3.0 x16 (x4 mode)
USB1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU SupportQuad-GPU AMD CrossFireX
2-Way AMD CrossFireX
Air Cooling1 x 4-Pin CPU
6 x 4-Pin System
2 x Thermal Sensor
Liquid Cooling1 x 4-Pin Pump
Power Connectors1 x 24-Pin Mainboard
1 x 8-Pin ATX
1 x 4-Pin ATX
SecurityTPM Module
LED Header2 x RGB
Audio1 x Speaker
DiagnosticsClear CMOS
Front Panel I/O
I/O Connection HeadersUSB 3.1 / USB 3.2 Gen 2
Audio
Audio CodecRealtek ALC4080 (7.1-Channel)
Wireless
Bluetooth5.1
Wi-FiWi-Fi 6 (802.11ax) (MU-MIMO)
Software
Supported Operating SystemsWindows 10 (64-Bit)
Physical
Form FactorATX
Dimensions9.6 x 12.0″ / 24.4 x 30.5 cm
