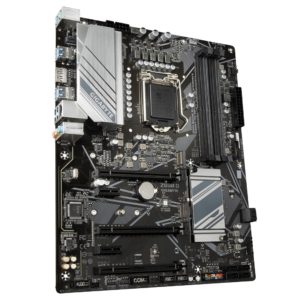

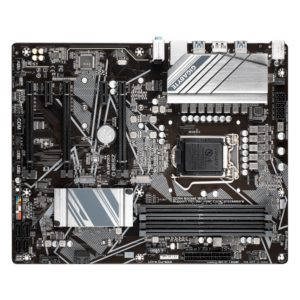

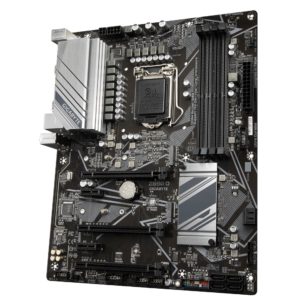

Gigabyte Z590 D Ultra Durable LGA 1200 ATX Motherboard

Gigabyte

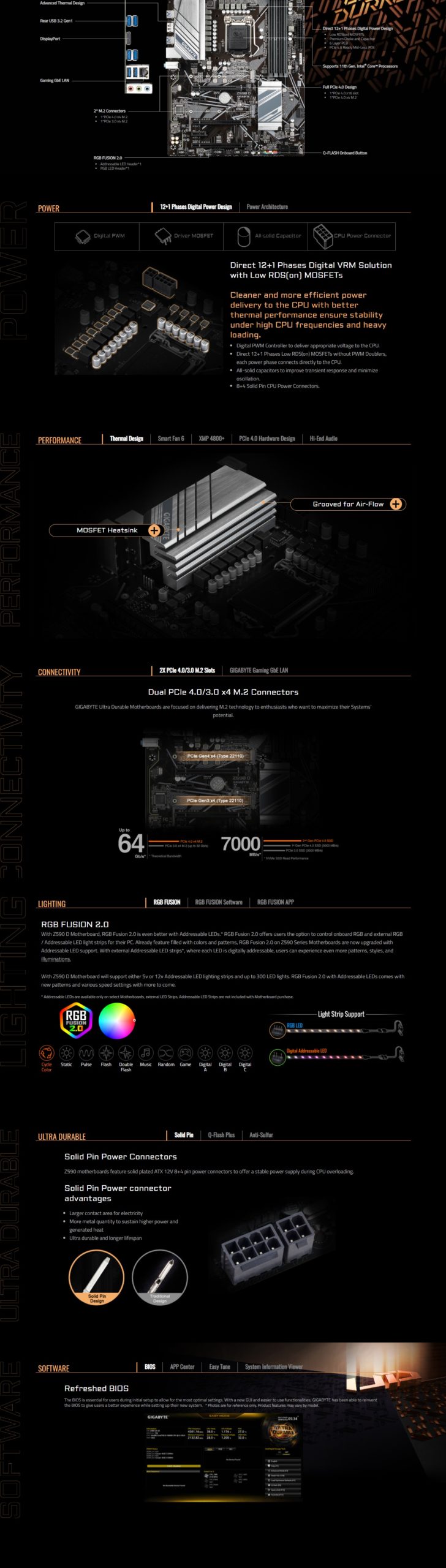

  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 12+1 Phases Digital VRM Solution with Low RDS(on) MOSFETs
  • Shielded Memory Routing for Better Memory Overclocking
  • Enlarged VRM Heatsink with Multi-Cut to increased surface contact
  • Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

 30,000

SKU: Z590 D (rev. 1.0) Categories: ,

Product Specification

Core Specifications
EditionZ590 D
Form FactorATX
CPU Socket1200
ChipsetIntel Z590
RAM Memory Support
Memory TypeDDR4
Memory ChannelDual (2)
Memory Type (ECC)ECC/Non-ECC
Memory Type (R/U)UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 – 2133
  • DDR4 – 2400
  • DDR4 – 2666
  • DDR4 – 2800
  • DDR4 – 2933
  • DDR4 – 3000
  • DDR4 – 3200
  • DDR4 – 3300(OC)
  • DDR4 – 3333(OC)
  • DDR4 – 3400(OC)
  • DDR4 – 3466(OC)
  • DDR4 – 3600(OC)
  • DDR4 – 3666(OC)
  • DDR4 – 3733(OC)
  • DDR4 – 3800(OC)
  • DDR4 – 3866(OC)
  • DDR4 – 4000(OC)
  • DDR4 – 4133(OC)
  • DDR4 – 4266(OC)
  • DDR4 – 4300(OC)
  • DDR4 – 4400(OC)
  • DDR4 – 4500(OC)
  • DDR4 – 4600(OC)
  • DDR4 – 4700(OC)
  • DDR4 – 4800(OC)
  • DDR4 – 4933(OC)
  • DDR4 – 5000(OC)
  • DDR4 – 5133(OC)
  • DDR4 – 5333(0C)
Max. Memory Capacity128GB (4x32GB)
Audio
Audio7.1 Channel HD Audio
Graphics Support
Primary GPU InterfacePCIe 4.0 (x16)
NVIDIA SLI SupportN/A
AMD CrossFire Support2-Way CrossFire
Integrated GraphicsRequires Processor Graphics or Discrete GPU
On-Board Graphics ConnectorsDisplayPort 1.2
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-60/80/110 PCIe Gen 4×4
  • 1 x M.2, 22-60/80/110, PCIe Gen3x4/SATA3
  • 2 x PCIe 3.0 x16 (x1 Bandwidth)
  • 2 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA SupportSATA3
RAID Support via
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 2 x LED strip connector
  • 2 x M.2 Connector
  • 1 x Q-Flash Plus Button
  • 1 x S/PDIF-Out Header
  • 6 x SATA III – 6Gb/s
  • 1 x Serial (COM) Header
  • 3 x System Fan header
  • 2 x Thunderbolt AIC Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface TypeWired Gigabit LAN (10/100/1000)
Network Chip/Modules1 x Realtek (Gigabit LAN)

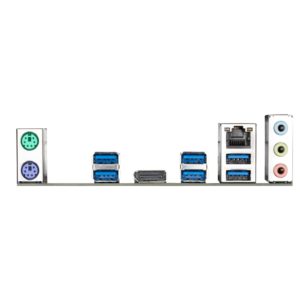

Rear I/O Connectors
  • 1 x DisplayPort 1.2
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x RJ-45
  • 6 x USB 3.2 Gen1 Type-A
Additional Specifications
Water CooledNo
CoolingPassive Heatsinks
QPI SpeedN/A
Board Dimensions305 x 244 mm
