Gigabyte Motherboards, Motherboards

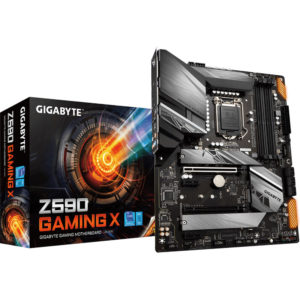

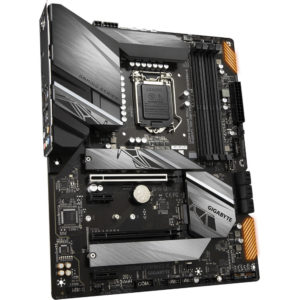

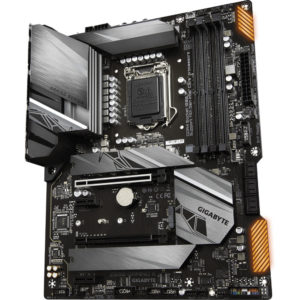

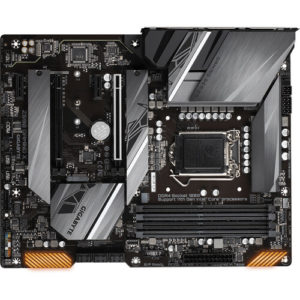

Gigabyte Z590 GAMING X Intel LGA 1200 ATX Motherboard
- Supports 11th and 10th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 12+1 Phases Digital VRM Solution with 60A DrMOS
- Shielded Memory Routing for Better Memory Overclocking
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- Fast 2.5GbE LAN with Bandwidth Management
- Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards
- Rear USB 3.2 Gen2 Type-C® and Front USB3.2 Gen1 Type-C® for Connecting Devices
- Pre-installed IO Shield for Easy and Quick Installation
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Availability:
Out of stock
₨ 46,440
Out of stock
Product Specification
| Common parameters | |
|
Model
|
GIGABYTE Z590 GAMING X
|
|
Release year
|
2021
|
| Form factor and dimensions | |
|
Form Factor
|
|
|
Height
|
305 mm
|
|
Width
|
230 mm
|
| CPU | |
|
Socket
|
LGA 1200
|
|
Integrated central processing unit
|
not
|
| Chipset | |
|
Chipset
|
Intel Z590
|
|
BIOS
|
|
|
UEFI BIOS
|
there is
|
|
SLI / CrossFire support
|
|
| Memory | |
|
Supported memory form factor
|
|
|
Supported memory type
|
|
|
ECC mode support
|
there is
|
|
Number of memory slots
|
four
|
|
Minimum memory frequency
|
2133 MHz
|
|
Maximum memory frequency
|
3200 MHz
|
|
Number of memory channels
|
2
|
|
Maximum memory
|
128 GB
|
| Storage controllers | |
|
Type and number of SATA ports
|
6x SATA 6Gb / s
|
|
SATA Express ports quantity
|
not
|
|
Number of M.2 slots
|
3
|
|
M.2 Form Factor
|
|
|
M.2 storage logical interface
|
PCI-E 3.0 x4, PCI-E 4.0 x4, SATA 3
|
|
NVMe support
|
there is
|
|
SATA RAID Operation Mode
|
0, 10, 5, 1
|
|
MSATA connector
|
not
|
|
IDE controller
|
not
|
| Expansion slots | |
|
Number of PCI-E x16 slots
|
2
|
|
Number of PCI-E x8 slots
|
not
|
|
Number of PCI-E x4 slots
|
not
|
|
Number of PCI-E x1 slots
|
2
|
|
Modes of operation of several PCI-E x16 slots
|
16-4, 16-0
|
|
PCI Express version
|
|
|
Number of PCI slots
|
not
|

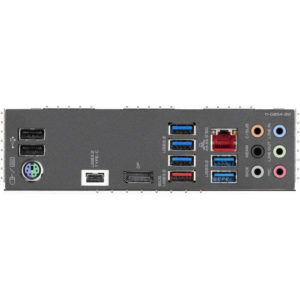

| Rear panel | |
|
Internal USB connectors on board
|
1 x USB 3.2 Gen1 Type C, 2 x USB 3.2 Gen1, 4 x USB 2.0
|
|
Number and type of USB on the rear panel
|
2 x USB 2.0, 1 x USB 3.2 Gen2 Type C, 1 x USB 3.2 Gen2 Type A, 5 x USB 3.2 Gen1 Type A
|
|
Video outputs
|
1x DisplayPort
|
|
Number of analog audio connectors
|
6
|
|
Digital audio ports (S / PDIF)
|
not
|
|
PS / 2 ports
|
combined
|
|
Other connectors on the rear panel
|
not
|
|
Number of network ports (RJ-45)
|
one
|
| Audio | |
|
Sound
|
|
|
Sound scheme
|
|
| Network | |
|
Network adapter speed
|
2500 Mbps
|
|
Built-in Wi-Fi adapter
|
not
|
|
Bluetooth
|
not
|
| Cooling | |
|
CPU cooler power connector
|
4-pin
|
|
4-pin connectors for system fans
|
four
|
|
3-pin connectors for system fans
|
not
|
| Food | |
|
Main power connector
|
24-pin
|
|
Processor power connector
|
8-pin + 4-pin
|
|
Number of supply phases
|
thirteen
|
| Extra options | |
|
Illumination of board elements
|
there is
|
|
3-Pin LED Connector (+ 5V-DG)
|
2
|
|
4-Pin LED Connector (12V-GRB)
|
2
|
|
LPT interface
|
not
|
|
Equipment
|
documentation
|
|
Application for interacting with a smartphone
|
GIGABYTE RGB Fusion
|
