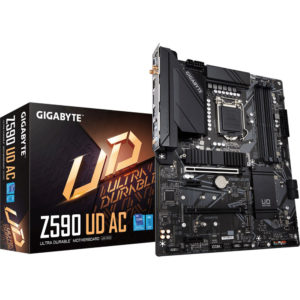

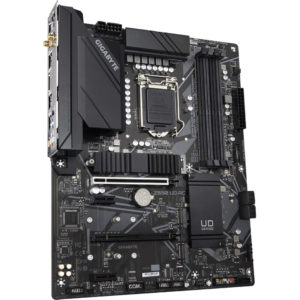

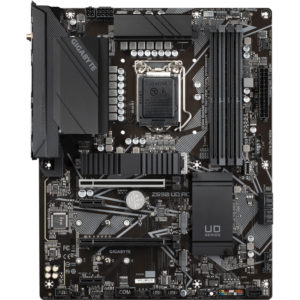

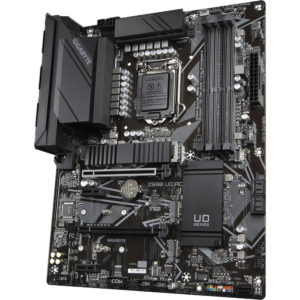

Gigabyte Z590 UD AC LGA 1200 ATX Motherboard

Gigabyte
  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 12+1 Phases Digital VRM Solution with 50A DrMOS
  • Shielded Memory Routing for Better Memory Overclocking
  • Enlarged VRM Heatsink with Air-Flow Grooving to Increased Surface Contact
  • Fast 2.5GbE LAN with Bandwidth Management
  • Onboard Intel® 802.11ac Wireless & BT with High-Gain Antenna
  • Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard
  • USB 3.2 Gen2 and Front USB Type-C® for Fast and Versatile Connections
  • Pre-installed IO Shield for Easy and Quick Installation
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

 41,000

SKU: 4719331814878 Categories: ,

Product Specifications

Chipset Intel Z590
CPU Socket LGA 1200
USB 2 x USB 3.1 / USB 3.2 Gen 2 Type-A
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Thunderbolt None
Display 1 x DisplayPort
Audio 3 x 3.5 mm
Ethernet / Controller 1 x Realtek 2.5Gigabit
PS/2 1 x Combo
Wi-Fi Antenna 2 x Connector
Buttons BIOS Flashback
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC, ECC Unbuffered
SATA 5 x SATA III
M.2 1 x M Key 2260, 2280, 22110 (PCIe 4.0 x4)
1 x M Key 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2, SATA (Unspecified))
1 x M Key 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2)
U.2 None
Optane Memory Support Yes
RAID Support RAID 0, 1, 5, 10
Expansion Slots 1 x PCIe 4.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)
2 x PCIe 3.0 x1
USB 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support 2-Way, Quad-GPU AMD CrossFireX
Air Cooling 1 x 4-Pin CPU
4 x 4-Pin System
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
1 x 4-Pin ATX
Security TPM Module
LED Header 2 x RGB
Audio 1 x S/PDIF
Diagnostics Clear CMOS, Flash BIOS
Add-On 2 x Thunderbolt Card Header
Legacy 1 x Serial
ROM 256 Mb
I/O Connection Headers AAFP, USB 3.1 / USB 3.2 Gen 1
Audio Codec Realtek (7.1-Channel)
Bluetooth 5.1
Wi-Fi Wi-Fi 5 (802.11ac) (MU-MIMO)
Supported Operating Systems Windows 10 (64-Bit)
Form Factor ATX
Dimensions 9.6 x 12.0″ / 24.4 x 30.5 cm
