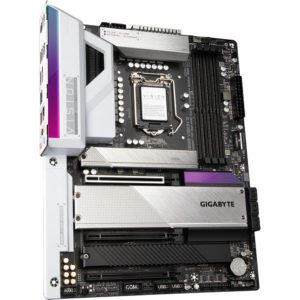

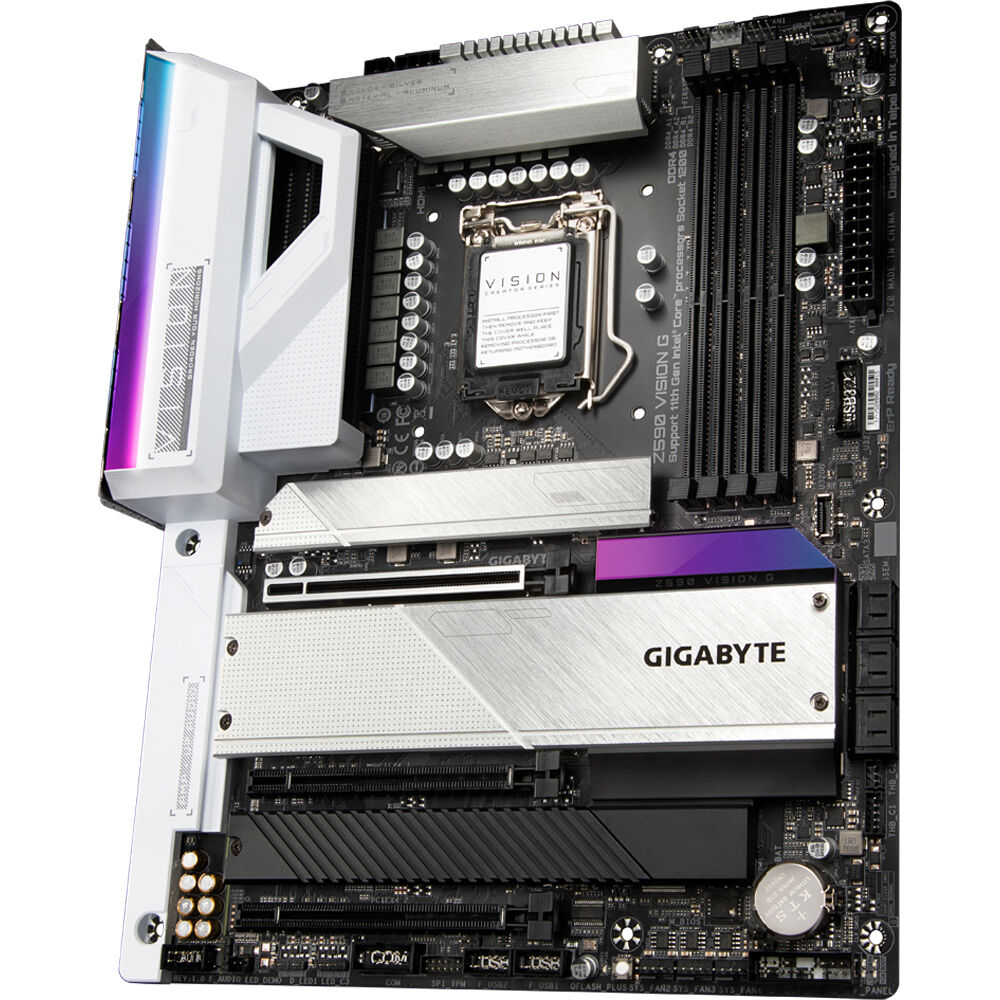

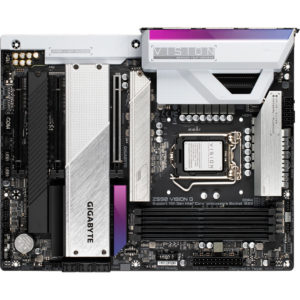

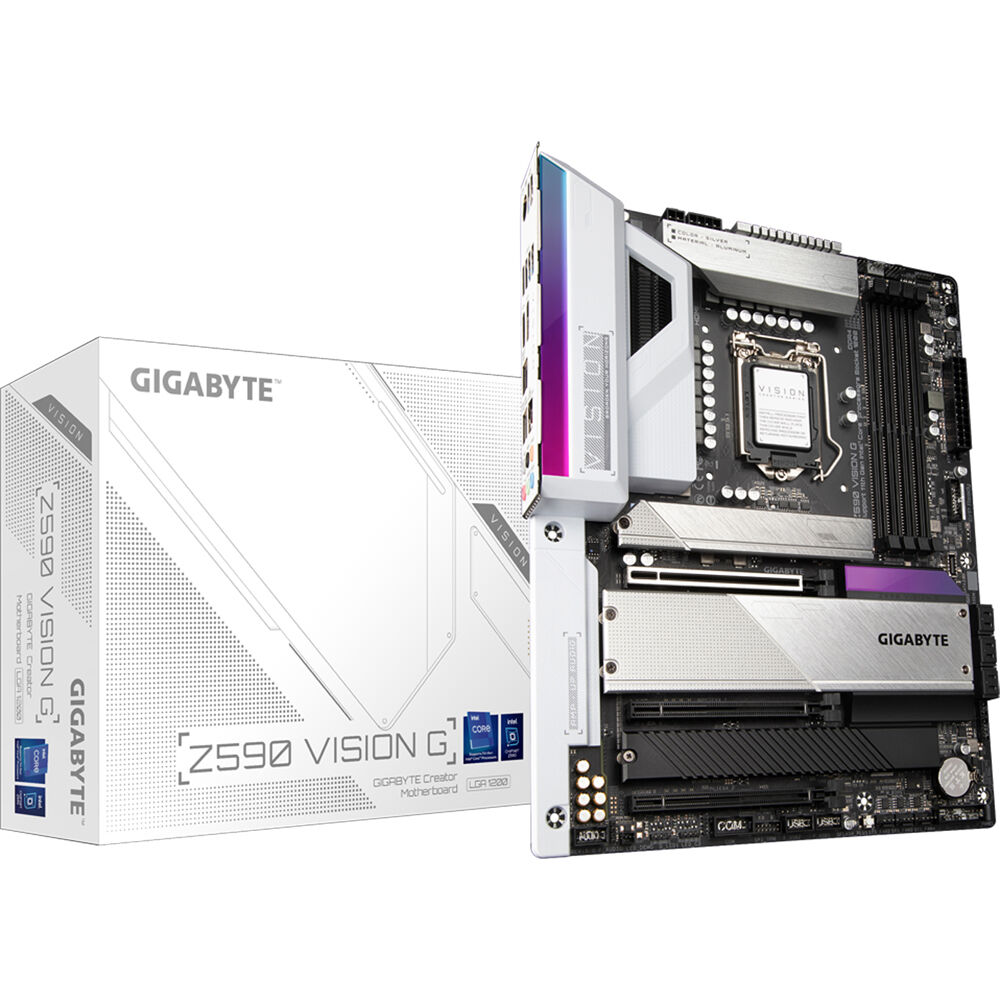

Gigabyte Z590 VISION G LGA 1200 ATX Motherboard

Gigabyte
  • ATX Form Factor
  • Intel Z590 Chipset
  • LGA 1200 Socket
  • 4 x Dual-Channel DDR4 Slots
  • 6 x SATA III, 4 x M.2 PCIe
  • 1 x PCIe 4.0 x16 Slot
  • 2 x PCIe 3.0 x16 (x4 Mode) Slots
  • USB 3.2 Gen 1, Gen 2, Gen 2×2
  • 2.5 Gigabit Ethernet
  • 2 x Thunderbolt 4 Headers

 38,000

GIGABYTE VisionLink
Transmit data, video output, and power charging all through a single USB Type-C cable with GIGABYTE VisionLink technology. Connect devices like drawing tablets without cluttering up your workspace with cables, keeping your work area neat and organized. VisionLink also enhances the performance of your devices with DisplayPort_In technology, enhancing the speed and performance of your devices. Transfer data, send video signal with DisplayPort Alt Mode, and charge your devices with 60W Power Delivery, giving you massive flexibility with just a single port.

Intel 2.5 GbE Connectivity
Experience high-speed internet with 2.5 GbE connectivity, boasting speeds 2.5 times faster than 1 GbE networking. Quickly upload and download large files with ease, allowing you to work efficiently on your projects.

Enhanced USB Connectivity
Experience enhanced speeds with easy front-panel access with a USB 3.2 Gen 2×2 header. Giving you transfer speeds up to 20 Gb/s, you can quickly transfer and backup your most important files without needing to dig behind your computer.

PCIe 4.0 Design
Embracing the power of 11th Gen Intel processors, you unlock PCIe 4.0 capabilities, giving you access to enhanced speeds for graphics and utility cards as well as M.2 solid-state storage drives. This accelerates system bandwidth performance, reducing rendering time for high-quality projects.

Quad PCIe M.2 Storage
The VISION G comes equipped with four M.2 PCIe slots, allowing you to experience faster application loading and allowing you to expand your digital content library with ease. When paired with an 11th Gen Intel processor, you can experience data transfer speeds up to 7-times faster than traditional SATA solid-state drives, ideal for creators looking for increased system performance.

Cooling Enhancements
Equipped with a Fins-Array heatsink and Direct Touch Heatpipe, the VISION G redirects and dissipates heat away from the chipset and components, keeping your parts safe from damage caused by excessive heat build-up. M.2 Thermal Guard is an extended heatsink that keeps your solid-state drives cool during operation. To ensure proper cooling and thermal control, Smart Fan 6 software monitors your motherboard and adjusts fans to ensure your system doesn’t overheat.

SKU: 4719331814496 Categories: ,

Product Specifications

ChipsetIntel Z590
CPU SocketLGA 1200

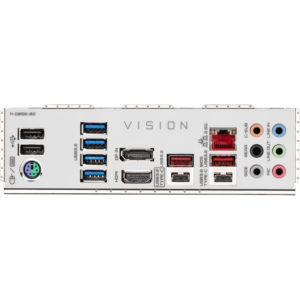

USB2 x USB 2.0 Type-A
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2×2 Type-C
1 x USB 3.1 / USB 3.2 Gen 1 Type-C
ThunderboltNone
Display1 x DisplayPort 1.2
1 x HDMI 1.4
Audio6 x 3.5 mm
Ethernet / Controller1 x 2.5Gigabit
PS/21 x Combo
Memory Slots4 x 288-Pin
Memory SupportDDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz
Maximum Capacity128 GB
Channel ArchitectureDual Channel
ECC SupportNon-ECC, ECC Unbuffered
SATA6 x SATA III
M.23 x M Key 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1 x M Key 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2)
U.2None
Optane Memory SupportYes
RAID SupportRAID 0, 1, 5, 10
Expansion Slots1 x PCIe 4.0 x16
2 x PCIe 3.0 x16 (x4 mode)
USB1 x USB 3.2 Gen 2×2 Header (Supports 1 USB Type-C Port)
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support2-Way, Quad-GPU AMD CrossFireX
Air Cooling1 x 4-Pin CPU
4 x 4-Pin System
1 x Noise Sensor
Liquid Cooling1 x 4-Pin Pump
Power Connectors1 x 24-Pin Mainboard
1 x 8-Pin ATX
1 x 4-Pin ATX
SecurityTPM Module
LED Header2 x RGB
Audio1 x S/PDIF
DiagnosticsClear CMOS, Flash BIOS
Add-On2 x Thunderbolt Card Header
ROM256 Mb
I/O Connection HeadersAAFP, USB 3.1 / USB 3.2 Gen 1
Audio CodecRealtek ALC4080 (7.1-Channel)
Supported Operating SystemsWindows 10 (64-Bit)
Form FactorATX
Dimensions9.6 x 12.0″ / 24.4 x 30.5 cm
Package Weight4.17 lb
Box Dimensions (LxWxH)13.4 x 10.7 x 3.4″
