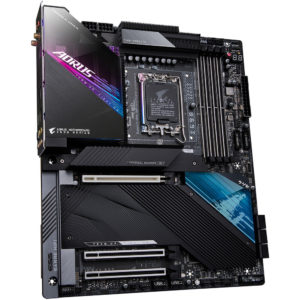

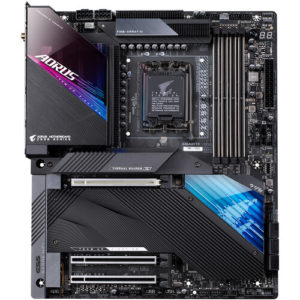

Gigabyte Z690 AORUS MASTER LGA 1700 E-ATX Motherboard

Gigabyte
  • Support 12th Gen Intel® Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
  • Direct 19+1+2 Phases VRM Design with 105A Power Stage* and Tantalum Polymer Capacitor
  • DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
  • Advanced Thermal Solution with NanoCarbon Fins-Array III Heatsink, Direct-Touch Heatpipe II and NanoCarbon Baseplate
  • Intel® WIFI 6E 802.11ax 2T2R & BT5 with AORUS Antenna
  • Audio Solution with ESS Sabre ES9118 125dB on Rear Audio​
  • AQUANTIA® 10GbE BASE-T LAN
  • 5 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

 107,500

SKU: 4719331827519 Categories: ,

Product Specification

CPU
Chipset Intel Z690
CPU Socket LGA 1700

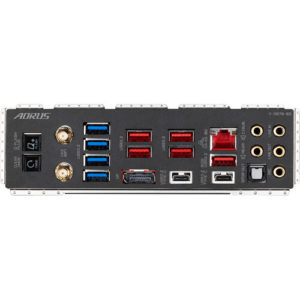

Back Panel I/O
USB 1 x USB 3.1 / USB 3.2 Gen 2 Type-C
1 x USB 3.2 Gen 2×2 Type-C
5 x USB 3.1 / USB 3.2 Gen 2 Type-A
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
Thunderbolt None
Display 1 x DisplayPort
Audio 5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller 1 x Marvell AQtion AQC113C 10GbE
Wi-Fi Antenna 2 x Connector
Buttons BIOS Flashback, Clear CMOS
Memory
Memory Slots 4 x 288-Pin
Memory Support DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion
SATA 6 x SATA III
M.2 3 x M Key 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, PCIe 3.0 x2)
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, PCIe 4.0 x2, SATA (Unspecified))
U.2 None
Optane Memory Support Yes
RAID Support RAID 0, 1, 5, 10
Internal I/O
Expansion Slots 1 x PCIe 5.0 x16
2 x PCIe 3.0 x16 (x4 mode)
USB 1 x USB 3.2 Gen 2×2 Header (Supports 1 USB Type-C Port)
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support 2-Way, Quad-GPU AMD CrossFireX
Air Cooling 1 x 4-Pin CPU
8 x 4-Pin System
1 x Noise Sensor
2 x Thermal Sensor
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
2 x 8-Pin ATX
Security TPM Header
LED Header 4 x RGB
Diagnostics Clear CMOS, Power, Reset
Add-On 2 x Thunderbolt Card Header
BIOS
ROM 256 Mb
Front Panel I/O
I/O Connection Headers AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.2 Gen 2×2
Audio
Audio Codec Realtek ALC1220-VB (7.1-Channel)
DAC ESS ES9118
Wireless
Bluetooth 5.2
Wi-Fi Wi-Fi 6E (802.11ax) (MU-MIMO)
Software
Supported Operating Systems Windows 10 (64-Bit)
Physical
Form Factor E-ATX
Dimensions 10.2 x 12.0″ / 25.9 x 30.5 cm
