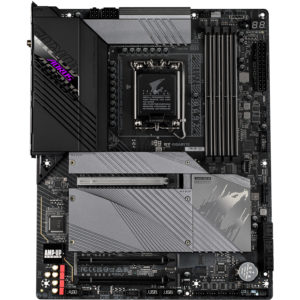

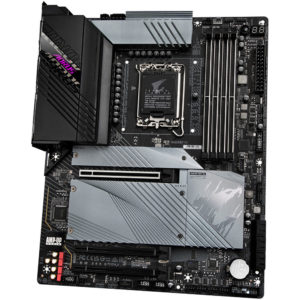

Gigabyte Z690 AORUS PRO LGA1700 ATX Motherboard

Gigabyte
  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
  • 16+1+2 Direct Digital VRM Design with 90A Power Stage* and Tantalum Polymer Capacitor
  • DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • Intel® WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Hi-Fi Audio with ALC4080 and WIMA Audio Capacitors
  • Fast 2.5GbE LAN with Bandwidth Management
  • 4x Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Enlarged Thermal Guard
  • SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Availability:

Out of stock

 65,000

Out of stock

SKU: 4719331827564 Categories: ,
CPU
Chipset Intel Z690
CPU Socket LGA 1700

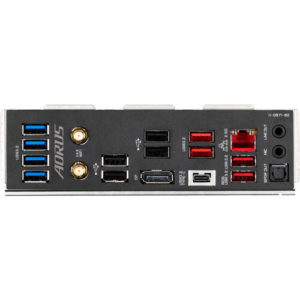

Back Panel I/O
USB 1 x USB 3.2 Gen 2×2 Type-C
4 x USB 3.1 / USB 3.2 Gen 2 Type-A
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
4 x USB 2.0 Type-A
Thunderbolt None
Display 1 x DisplayPort
Audio 2 x 3.5 mm
1 x S/PDIF
Ethernet / Controller 1 x Intel 2.5Gigabit
Wi-Fi Antenna 2 x Connector
Memory
Memory Slots 4 x 288-Pin
Memory Support DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion
SATA 6 x SATA III
M.2 3 x M Key 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1 x M Key 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2, SATA (Unspecified))
U.2 None
RAID Support RAID 0, 1, 5, 10
Internal I/O
Expansion Slots 1 x PCIe 5.0 x16
2 x PCIe 3.0 x16
USB 1 x USB 3.2 Gen 2×2 Header (Supports 1 USB Type-C Port)
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support 2-Way, Quad-GPU AMD CrossFireX
Air Cooling 1 x 4-Pin CPU
6 x 4-Pin System
1 x Noise Sensor
2 x Thermal Sensor
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
1 x 4-Pin ATX
Security TPM Header
LED Header 4 x RGB
Diagnostics Clear CMOS, Flash BIOS, Power, Reset
Add-On 1 x Thunderbolt Card Header
BIOS
ROM 256 Mb
Front Panel I/O
I/O Connection Headers AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.2 Gen 2×2
Audio
Audio Codec Realtek ALC4080 (7.1-Channel)
Wireless
Bluetooth 5.2
Wi-Fi Wi-Fi 6 (802.11ax) (MU-MIMO)
Software
Supported Operating Systems Windows 10 (64-Bit)
Physical
Form Factor ATX
Dimensions 9.6 x 12.0″ / 24.4 x 30.5 cm
