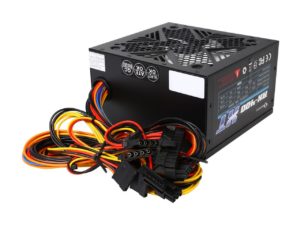

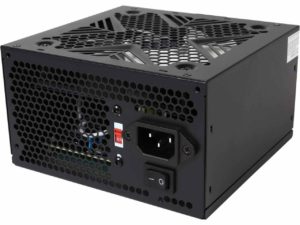

RAIDMAX RX-400XT(EU) 400W POWER SUPPLY

1. Support SINGLE +12V output for higher power usage.

2. Honeycomb ventilation design for optimal heat dissipation.

3. Support C6/C7 power saving mode on Intel Haswell CPU.

4. Up to 4 or 5 SATA connectors supports multiple of hard drives.

5. Support with Intel ATX12V V2.3 .

6. Full protections with SCP, OVP, OPP.

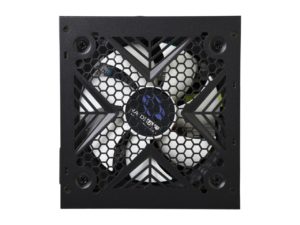

7. 120mm silent fan with smart thermal fan speed control circuit.

Availability:

Out of stock

 4,320

Out of stock

RAIDMAX XT series RX-400XT

SKU: 854190040021 Categories: ,
Brand
RAIDMAX
Model
RX-400XT
Series
XT series

Details

Type
ATX12V / EPS12V
Maximum Power
400W
Fans
1 x 120 mm Fan
PFC
No
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
1 x 6-Pin
SATA Power Connector
4
SLI
No
CrossFire
No
Modular
No
Efficiency
up to 78%
Over Voltage Protection
Yes
Overload Protection
Yes
Input Voltage
110 – 240 V
Input Frequency Range
50/60 Hz
Input Current
15 A
Output

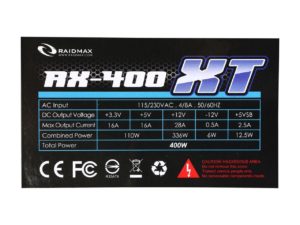

+3.3V@16A, +5V@16A, +12V1@28A, -12V@0.5A ,5VSB@2.5A
MTBF
>100,000 Hours
Approvals
FCC, CE
Dimensions
3.50″ x 6.00″ x 5.75″
Max PSU Length
146 mm
Weight
2.98 lbs.
