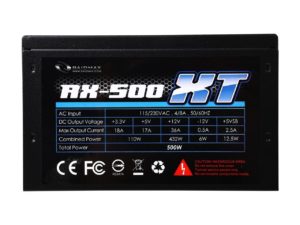

RAIDMAX RX-500XT(EU) 500W POWER SUPPLY

1. Support SINGLE +12V output for higher power usage.

2. Honeycomb ventilation design for optimal heat dissipation.

3. Support C6/C7 power saving mode on Intel Haswell CPU.

4. Up to 4 or 5 SATA connectors supports multiple of hard drives.

5. Support with Intel ATX12V V2.3 .

6. Full protections with SCP, OVP, OPP.

7. 120mm silent fan with smart thermal fan speed control circuit.

Availability:

Out of stock

 5,400

Out of stock

RAIDMAX XT Series RX-500XT

+

SKU: 854190050020 Categories: ,
Brand

Model

Brand
RAIDMAX
Model
RX-500XT
Series
XT Series

Details

Type
Intel ATX12V V2.3
Maximum Power
500W
Fans
1 x 120 mm Fan
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
1 x 6-Pin, 1 x 6+2-Pin
SATA Power Connector
5
Haswell Support
Ready
Modular
No
Efficiency
up to 78%
Over Voltage Protection
Yes
Overload Protection
Yes
Input Voltage
115 / 230 V
Input Frequency Range
50/60 Hz
Input Current
4 / 8 A
Output
+3.3V@18A, +5V@17A, +12V@36A, -12V@0.5A ,5VSB@2.5A
MTBF
>100,000 Hours
Approvals
FCC, CE
Dimensions
3.39″ x 5.91″ x 5.51″
Max PSU Length
140 mm
Weight
3.24 lbs.
